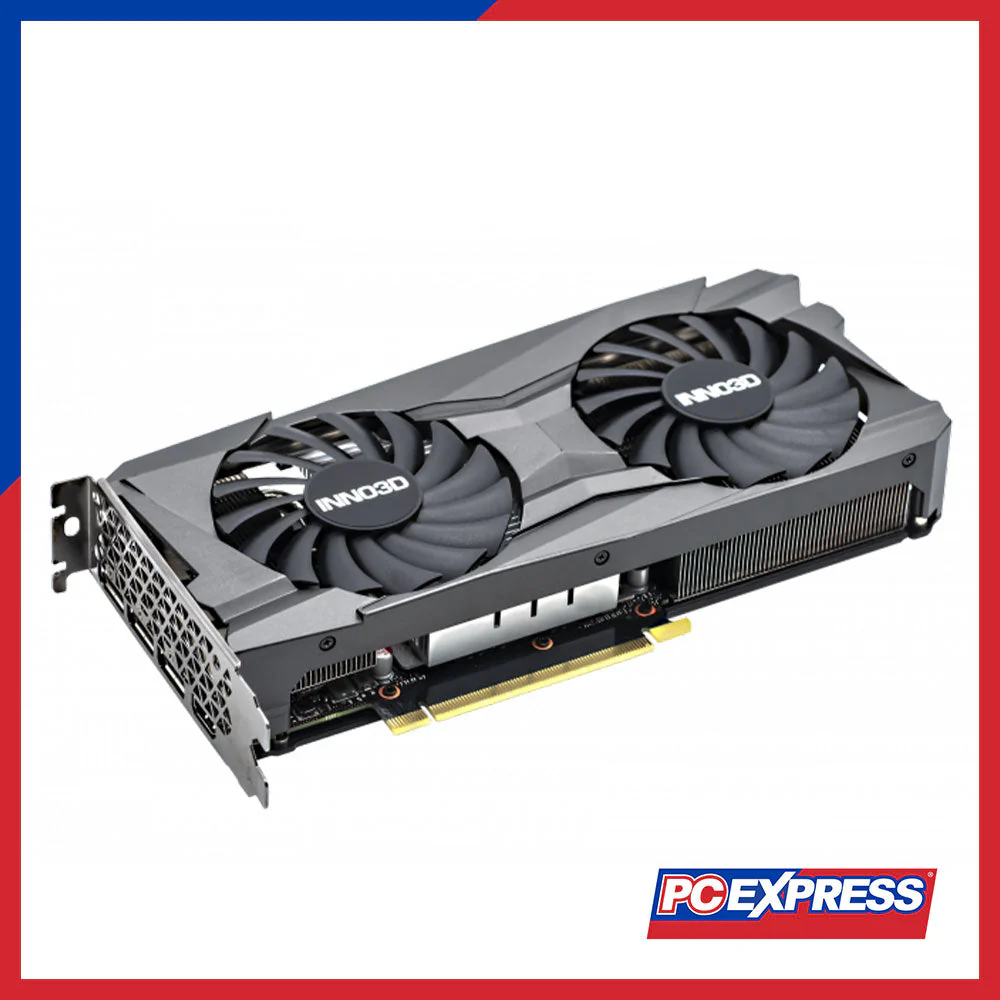

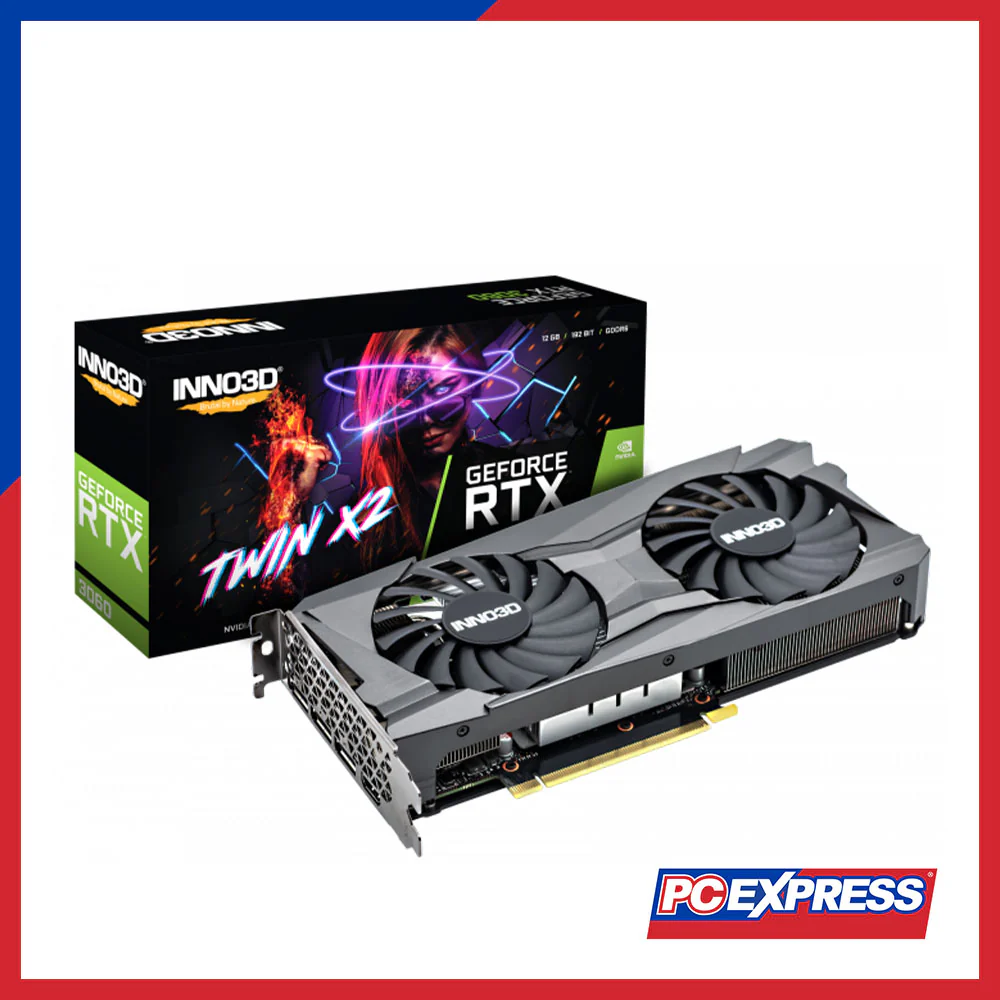

INNO3D GeForce RTX™ 3060 TWIN X2 Non-OC LHR 12GB GDDR6 192-bit Graphics Card

Part Number

N30602-12D6-119032AH

GPU Engine Specs:

CUDA Cores

3584

Boost Clock (MHz)

1777

Base Clock(MHz)

1320

Thermal and Power Spec:

Minimum System Power Requirement (W)

550

Supplementary Power Connectors

8-pin

Memory Specs:

Memory Clock

15Gbps

Standard Memory Config

12GB

Memory Interface

GDDR6

Memory Interface Width

192-bit

Memory Bandwidth (GB/sec)

360

Feature Support:

Real-Time Ray Tracing

Yes

Ray Tracing Cores

2nd Generation

Tensor Cores

3rd Generation

NVIDIA Architecture

Ampere

Microsoft DirectX

12 Ultimate

NVIDIA DLSS

Yes

PCI Express Gen 4

Yes

NVIDIA GeForce Experience

Yes

NVIDIA Ansel

Yes

NVIDIA FreeStyle

Yes

Bus Support

PCI-E 4.0 X16

NVIDIA ShadowPlay

Yes

OS Certification

Windows 10, Linux, FreeBSDx86

NVIDIA Highlights

Yes

Lighting module

-

NVIDIA G-SYNC™-Ready

Yes

Game Ready Drivers

Yes

NVIDIA Studio Drivers

Yes

NVIDIA GPU Boost™

Yes

Vulkan API

Yes

OpenGL

4.6

HDMI 2.1

Yes

DisplayPort 1.4a

Yes

NVIDIA Encoder

7th Generation

NVIDIA Decoder

5th Generation

Accessories:

Installation Guide

Yes

Power Guide

Yes

Graphics Card Dimensions:

Length

240mm

Height

120mm

Width

2-slot

Display Support:

Multi Monitor

Yes

Maxmium Digital Resolution

7680x4320

HDCP

2.3

Standard Display Connectors

HDMI 2.1, 3x DisplayPort 1.4a
