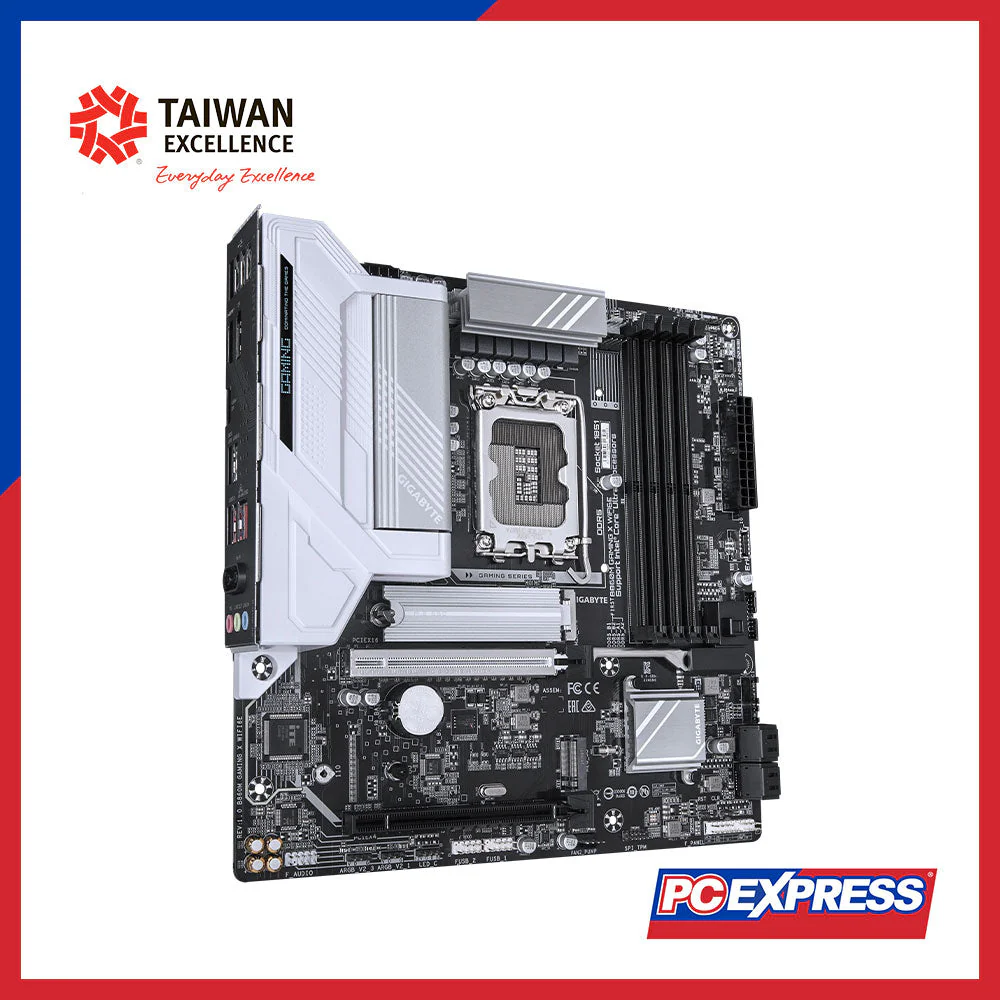

GIGABYTE B860M GAMING X WIFI6E Micro-ATX Motherboard

CPU

LGA1851 socket, supports Intel® Core™ Ultra Processors; L3 cache varies with CPU.

Chipset

Intel® B860 Express Chipset.

Memory

Supports DDR5 up to 9200 MT/s (O.C.), 4 x DDR5 DIMM slots, up to 256 GB total, Dual-channel architecture, supports ECC and non-ECC unbuffered DIMMs, XMP memory modules.

Onboard Graphics

Integrated Intel® HD Graphics; 1x USB4® Type-C®, 1x DisplayPort (3840x2160@144Hz, DP 2.1), 1x HDMI (4096x2160@60Hz, HDMI 2.1); supports triple-display.

Audio

Realtek® Audio CODEC, High Definition Audio, supports 2/4/5.1/7.1-channel configurations.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps).

Wireless

Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE; supports 2.4/5/6 GHz bands, Bluetooth 5.3, 11ax 160MHz wireless standard.

Expansion Slots

1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset).

Storage Interface

1x M.2 (PCIe 5.0 x4/x2, CPU); 1x M.2 (PCIe 4.0 x4/x2, Chipset); 4x SATA 6Gb/s connectors, RAID 0/1/5/10 support.

USB Ports

1x USB4® Type-C® (CPU), 1x USB Type-C® (USB 3.2 Gen 2), 5x USB 3.2 Gen 1, 9x USB 2.0/1.1 (back and internal).

Internal I/O

Includes ATX power connectors, fan headers, RGB headers, M.2 connectors, SATA connectors, audio header, USB headers, TPM header, Thunderbolt™ add-in card connectors, etc.

Back Panel

1x HDMI, 1x DisplayPort, 1x USB4® Type-C®, 3x USB 3.2 Gen 1, 5x USB 2.0/1.1, 2x antenna connectors, 1x RJ-45 LAN, 3x audio jacks.

I/O Controller

iTE® I/O Controller Chip.

H/W Monitoring

Voltage, temperature, fan speed, and water cooling flow rate detection; fan speed control.

BIOS

256 Mbit flash, AMI UEFI BIOS, supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup.

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management software.

Form Factor

Micro ATX; 24.4 cm x 24.4 cm.
