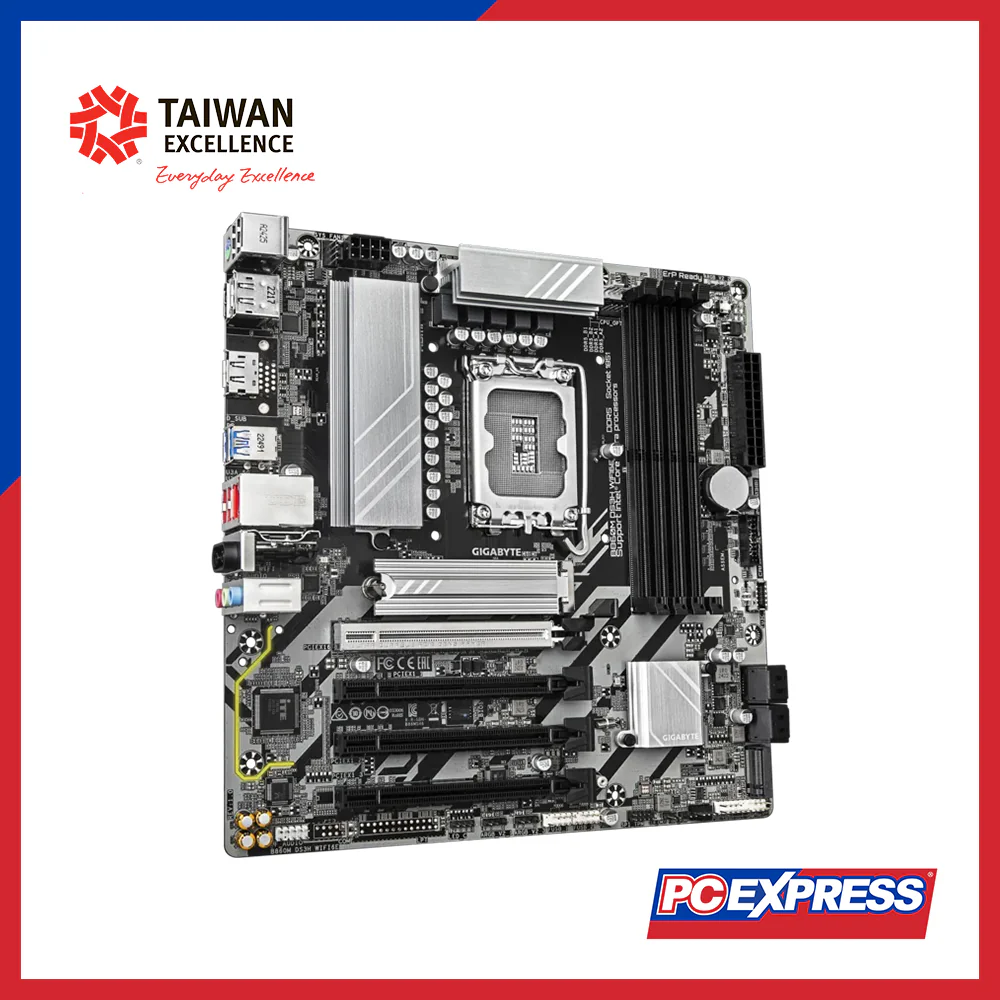

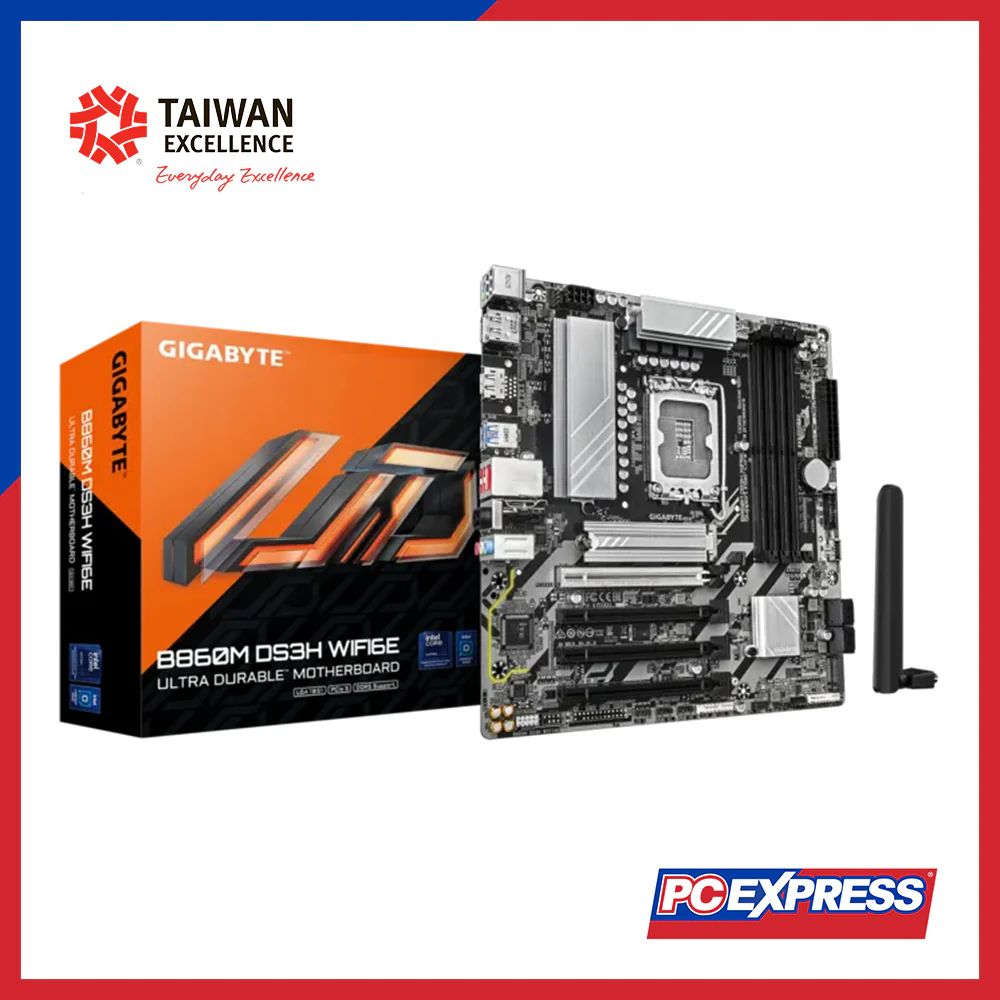

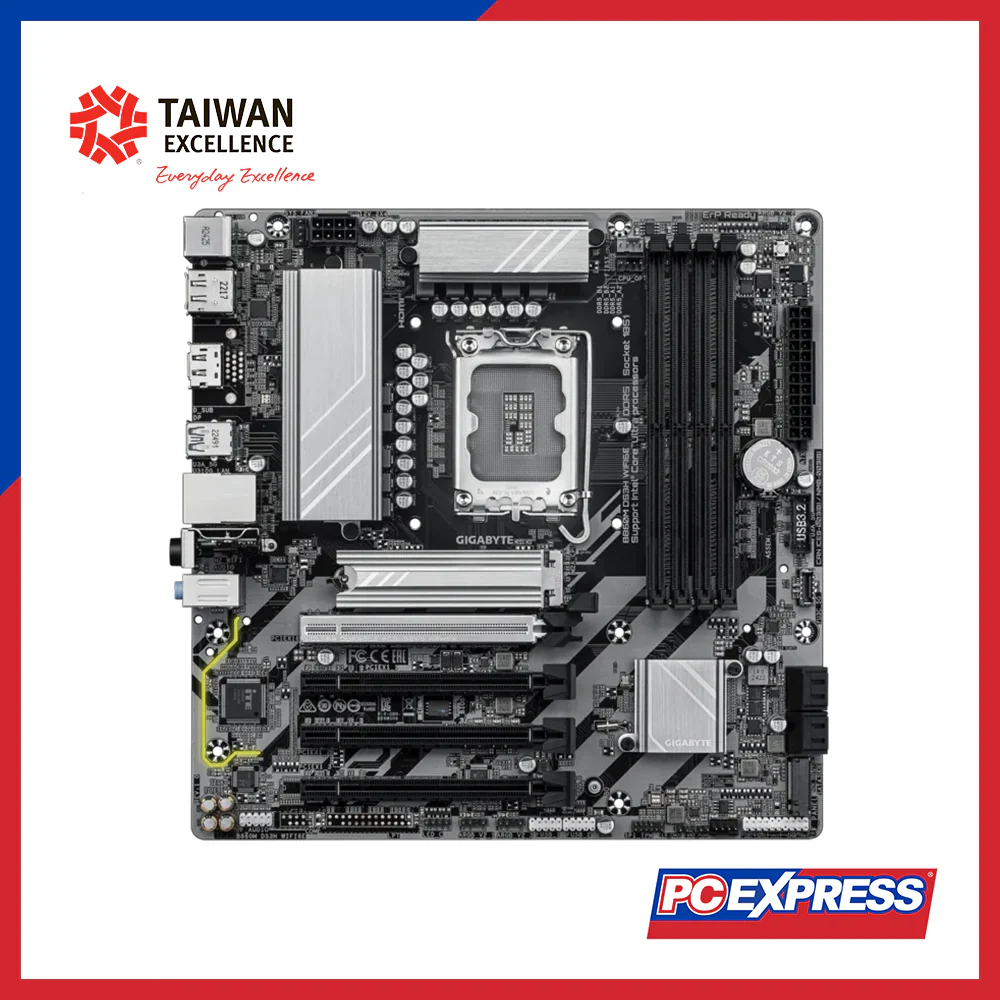

GIGABYTE B860M DS3H WiFi6E micro-ATX Motherboard
SPECIFICATION
|
CPU |
LGA1851 socket: Support for IntelĀ® Coreā¢ Ultra Processors |
|
L3 cache varies with CPU |
|
|
Chipset |
IntelĀ® B860 Express Chipset |
|
Memory |
Support for DDR5 up to 9066(O.C) down to 5600 MT/s |
|
4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) |
|
|
Dual-channel memory architecture |
|
|
ECC & non-ECC un-buffered DIMM support |
|
|
Support for XMP memory modules |
|
|
Onboard Graphics |
IntelĀ® HD Graphics support |
|
1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3) |
|
|
2 x DisplayPort (3840x2160@144Hz, DP 2.1) |
|
|
Supports up to triple display |
|
|
Audio |
RealtekĀ® Audio CODEC |
|
High Definition Audio |
|
|
2/4/5.1/7.1-channel support |
|
|
LAN |
RealtekĀ® 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps) |
|
Wireless Communication |
IntelĀ® Wi-Fi 6E AX211 / RealtekĀ® Wi-Fi 6E RTL8852CE |
|
Supports 2.4/5/6 GHz bands |
|
|
Bluetooth 5.3 |
|
|
11ax 160MHz wireless standard |
|
|
Expansion Slots (CPU) |
1 x PCIe 5.0 x16 slot |
|
Expansion Slots (Chipset) |
3 x PCIe 4.0 x1 slots |
|
Storage Interface (CPU) |
1 x M.2 PCIe 5.0 x4/x2 (2280) |
|
Storage Interface (Chipset) |
1 x M.2 PCIe 4.0 x4/x2 |
|
4 x SATA 6Gb/s |
|
|
RAID 0/1/5/10 support |
|
|
USB (Rear & Internal) |
USB Type-C (Gen1, internal header) |
|
USB 3.2 Gen2 Type-A (rear) |
|
|
USB 3.2 Gen1 ports (rear + internal) |
|
|
USB 2.0/1.1 ports (rear + internal) |
|
|
Internal I/O Connectors |
24-pin ATX power, 8-pin CPU power |
|
CPU/System fan & pump headers |
|
|
RGB & ARGB headers |
|
|
2 x M.2 sockets, 4 x SATA |
|
|
Front panel, audio, USB headers |
|
|
TPM header, Q-Flash Plus button |
|
|
Reset jumper, Clear CMOS jumper |
|
|

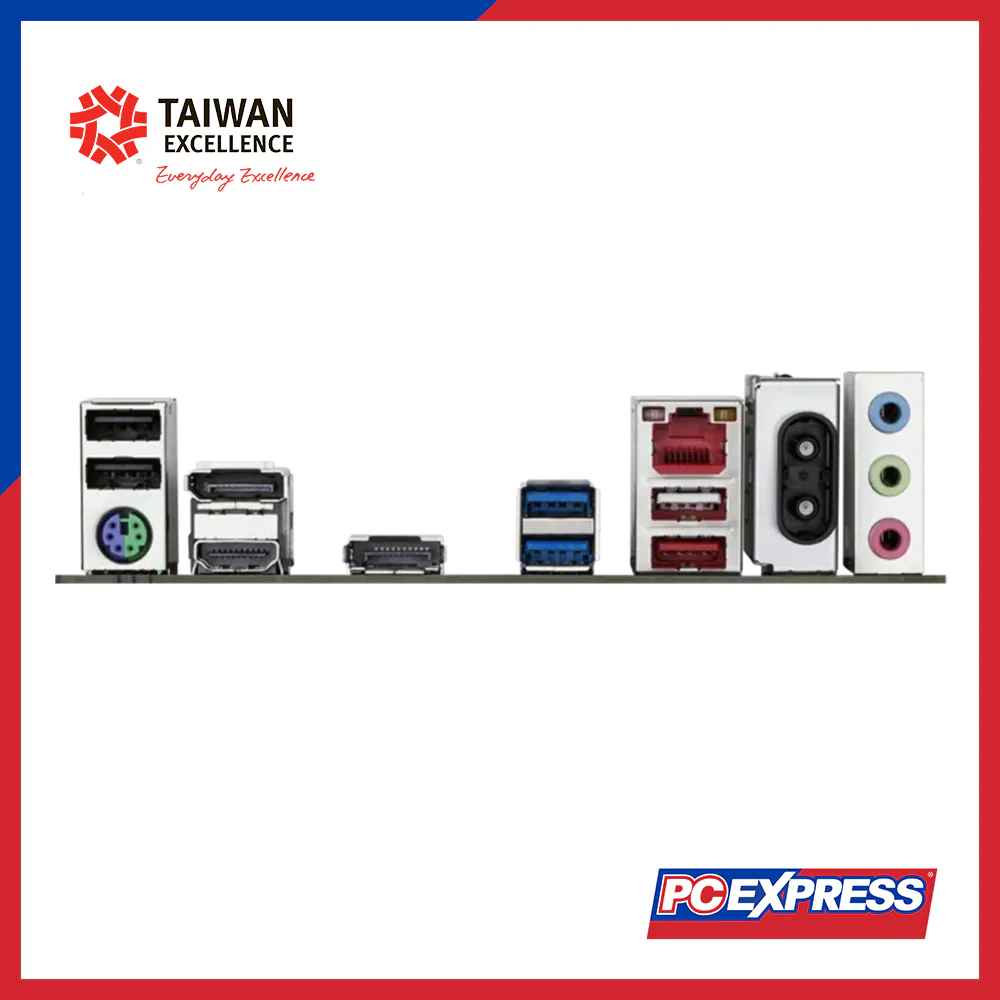

Back Panel Connectors |
PS/2 port |
|
HDMI + 2 x DisplayPort |
|
|
USB 3.2 Gen2 + USB 3.2 Gen1 |
|
|
USB 2.0 ports |
|
|
2 x antenna connectors |
|
|
RJ-45 LAN port |
|
|
3 x audio jacks |
|
|
I/O Controller |
iTEĀ® I/O Controller Chip |
|
H/W Monitoring |
Voltage, temperature, fan speed detection |
|
Water cooling flow rate detection |
|
|
Fan fail warning & speed control |
|
|
BIOS |
256 Mbit flash |
|
AMI UEFI BIOS |
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
Unique Features |
GIGABYTE Control Center (GCC) |
|
Q-Flash, Q-Flash Plus |
|
|
Smart Backup |
|
|
Bundled Software |
NortonĀ® Internet Security (OEM) |
|
LAN bandwidth management software |
|
|
Operating System |
Windows 11 64-bit |
|
Windows 10 64-bit |
|
|
Form Factor |
Micro ATX (24.4 cm x 24.4 cm) |
