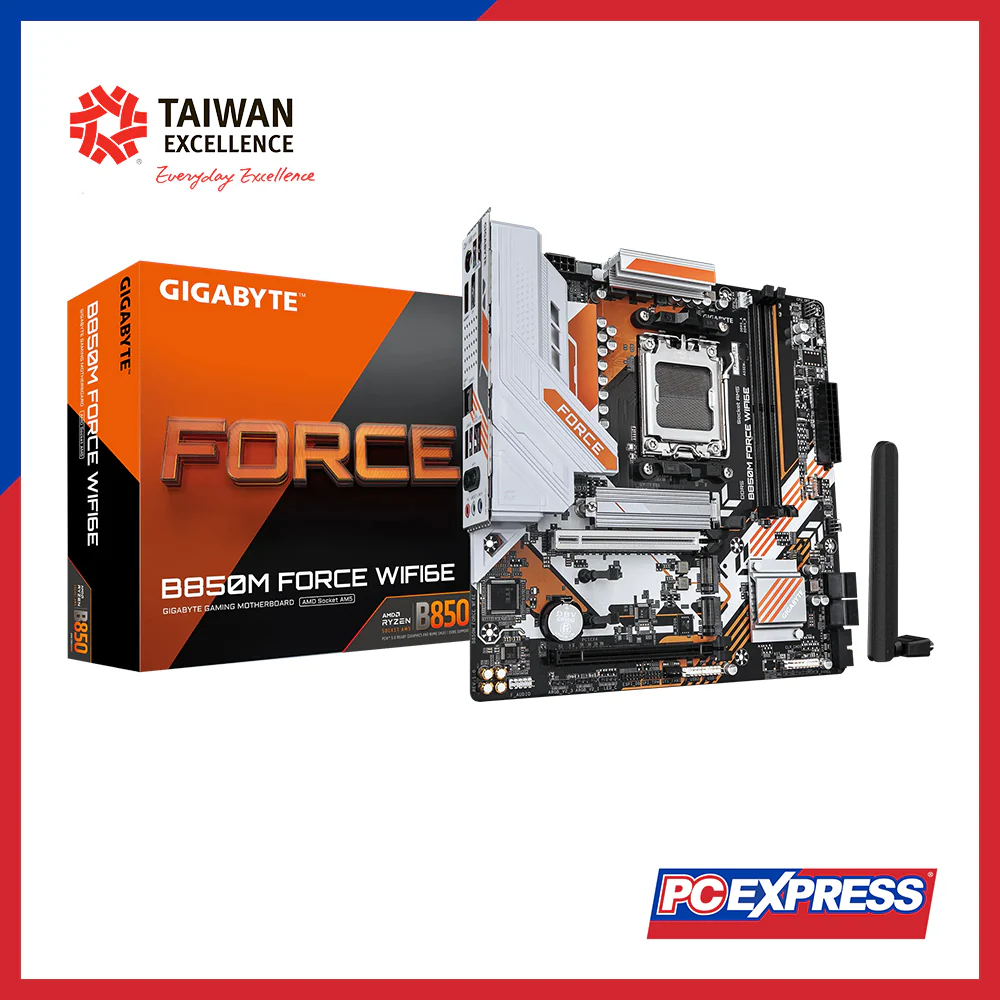

GIGABYTE B850M FORCE WIFI6E Micro-ATX Motherboard

CPU

AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series Processors
(See GIGABYTE website for latest CPU support list)

Chipset

AMD B850

Memory

- DDR5 9600(OC) to 4400 MT/s
- 2× DDR5 DIMM sockets, up to 128 GB
- Dual-channel architecture
- Non-ECC Un-buffered DIMMs
- Supports AMD EXPO™ & XMP
(Memory support depends on CPU & configuration)

Onboard Graphics

Integrated AMD Radeon™ Graphics
- HDMI: up to 4096x2160@60 Hz (HDMI 2.1)
- DisplayPort: up to 3840x2160@144 Hz (DP 1.4)
(Graphics support depends on CPU)

Audio

Realtek® Audio CODEC
High Definition Audio (2/4/5.1/7.1 channels)
Configurable via software

LAN

Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)

Wireless

MediaTek Wi-Fi 6E MT7902
- Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz)
- Bluetooth 5.3
- 11ax 160MHz support

Expansion Slots

- 1× PCIe x16 (from CPU)
 • Ryzen 9000/7000: PCIe 5.0 x16
 • Ryzen 8000-Phoenix 1: PCIe 4.0 x8
 • Ryzen 8000-Phoenix 2: PCIe 4.0 x4
- 1× PCIe x16 (from chipset, runs at x4, PCIe 4.0)

Storage Interfaces

- 3× M.2 (Socket 3, M key, 2280):
 • M2A_CPU: PCIe 5.0/4.0 x4/x2
 • M2B_CPU: PCIe 4.0 x4/x2
 • M2C_SB: PCIe 4.0 x2
- 4× SATA 6Gb/s
- RAID 0/1/10 (SATA); RAID 0/1/5/10 (NVMe, RAID 5 on Ryzen 9000 only)

USB (Back Panel)

- 1× USB Type-C® (USB 3.2 Gen 1)
- 1× USB 3.2 Gen 2 Type-A (red)
- 2× USB 3.2 Gen 1
- 2× USB 2.0/1.1
- 1× USB 2.0/1.1 (dedicated port)

USB (Internal Headers)

- 1× USB Type-C® (USB 3.2 Gen 1)
- 2× USB 3.2 Gen 1
- 4× USB 2.0/1.1

Internal I/O Connectors

- 24-pin ATX, 8-pin ATX 12V
- CPU fan / pump headers, system fan / pump headers
- 3× ARGB Gen2, 1× RGB headers
- Front panel, audio, USB headers (2.0 / 3.2 / Type-C)
- 3× M.2, 4× SATA
- TPM, Reset jumper, Clear CMOS, Q-Flash Plus button

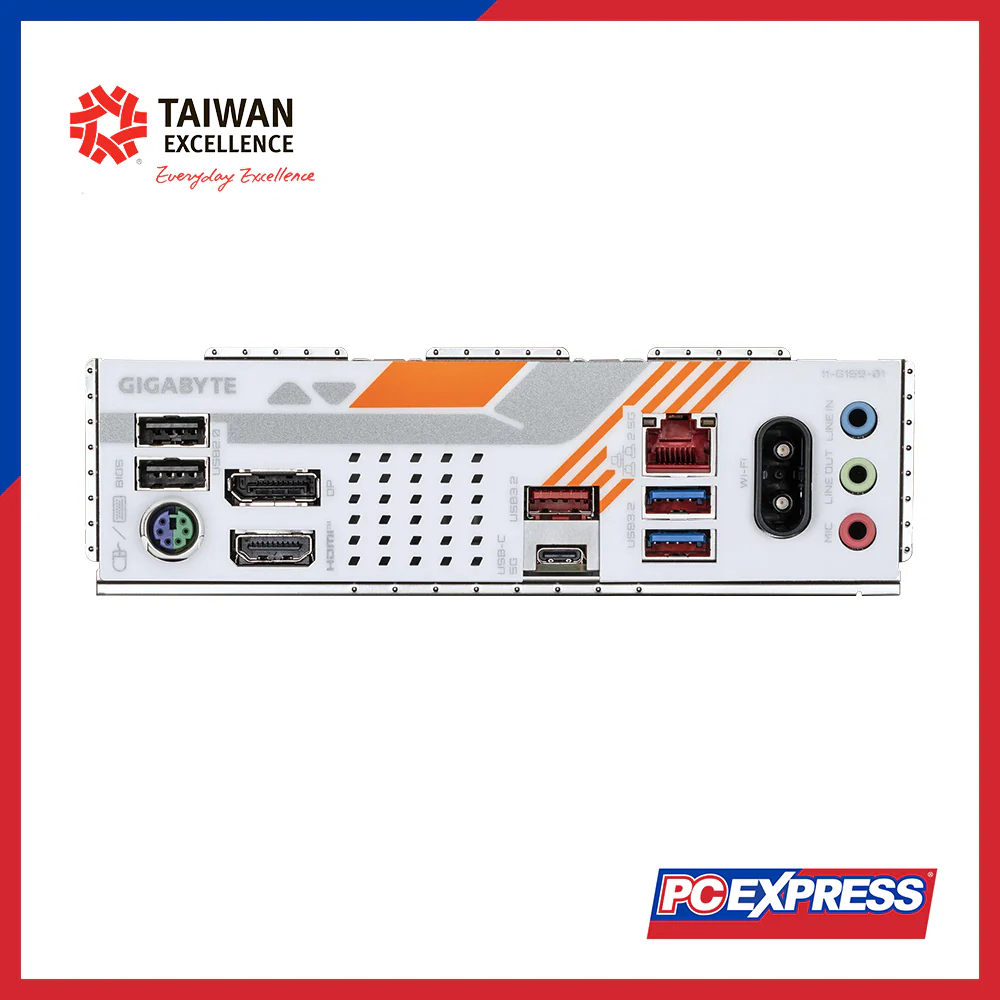

Back Panel Connectors

- 1× HDMI, 1× DisplayPort
- 1× PS/2 port
- USB ports (see above)
- 1× RJ-45
- 2× Antenna connectors
- 3× Audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temp, fan speed, water flow, fan fail, fan control (dependent on fan type)

BIOS

- 256 Mbit flash
- AMI UEFI BIOS
- Supports PnP, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

Operating System

Windows 11 / 10 64-bit

Form Factor

Micro ATX (24.4 cm × 24.4 cm)
