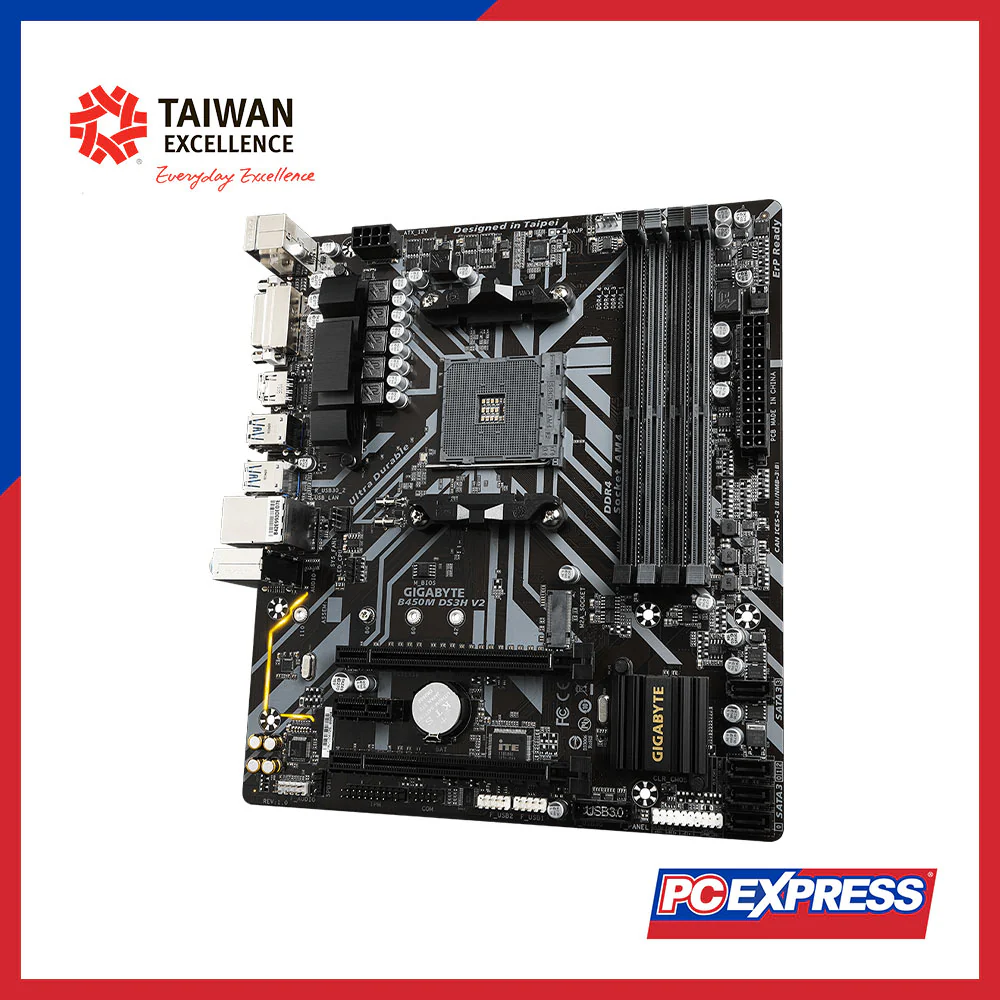

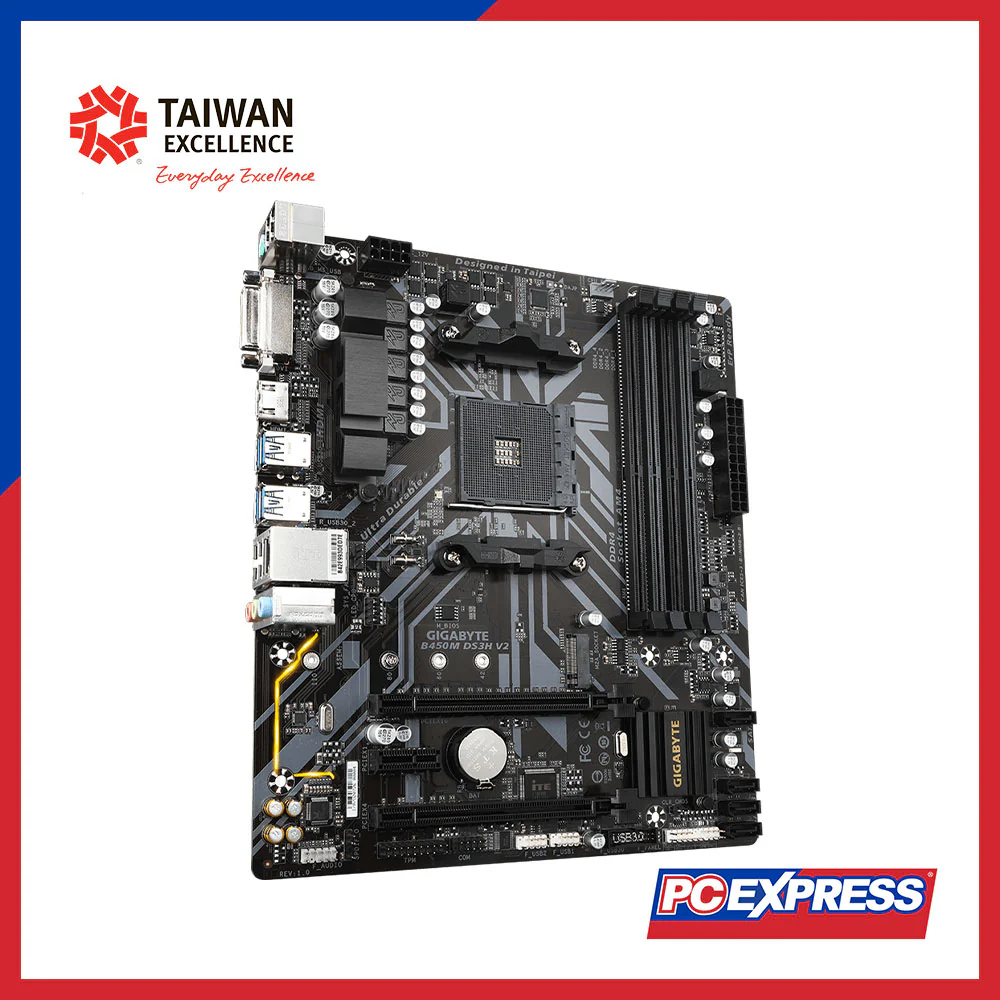

GIGABYTE B450M DS3H V2 Motherboard

CPU Socket

AM4 Socket

CPU Support

AMD Ryzen™ 5000 series, Ryzen™ 5000 G-Series, 3rd Gen Ryzen™, 2nd Gen Ryzen™, 1st Gen Ryzen™, 2nd Gen Ryzen™ with Radeon™ Vega Graphics, 1st Gen Ryzen™ with Radeon™ Vega Graphics, Athlon™ with Radeon™ Vega Graphics Processors

Chipset

AMD B450

Memory Support

DDR4 3600(O.C.) to 2133 MHz memory modules

DIMM Slots

4

Max Memory (GB)

Up to 128 GB (32 GB single DIMM capacity)

Memory Channels

Dual-channel

Onboard Graphics

DVI-D, HDMI

Graphics Ports

DVI-D (1920x1200@60 Hz), HDMI (4096x2160@60 Hz)

Max Shared Memory

16 GB

Audio

Realtek® Audio codec, High Definition Audio

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 (PCIe 3.0), 1 x PCI Express x16 (x4), 1 x PCI Express x1 (PCIe 2.0)

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface

1 x M.2 connector (SATA and PCIe x4/x2 SSD support), 4 x SATA 6Gb/s connectors

SATA RAID Support

RAID 0, RAID 1, and RAID 10

USB Ports

4 x USB 3.1 Gen 1 ports, 8 x USB 2.0/1.1 ports

Internal I/O Connectors

Power connectors, fan headers, M.2, SATA, USB, headers, etc.

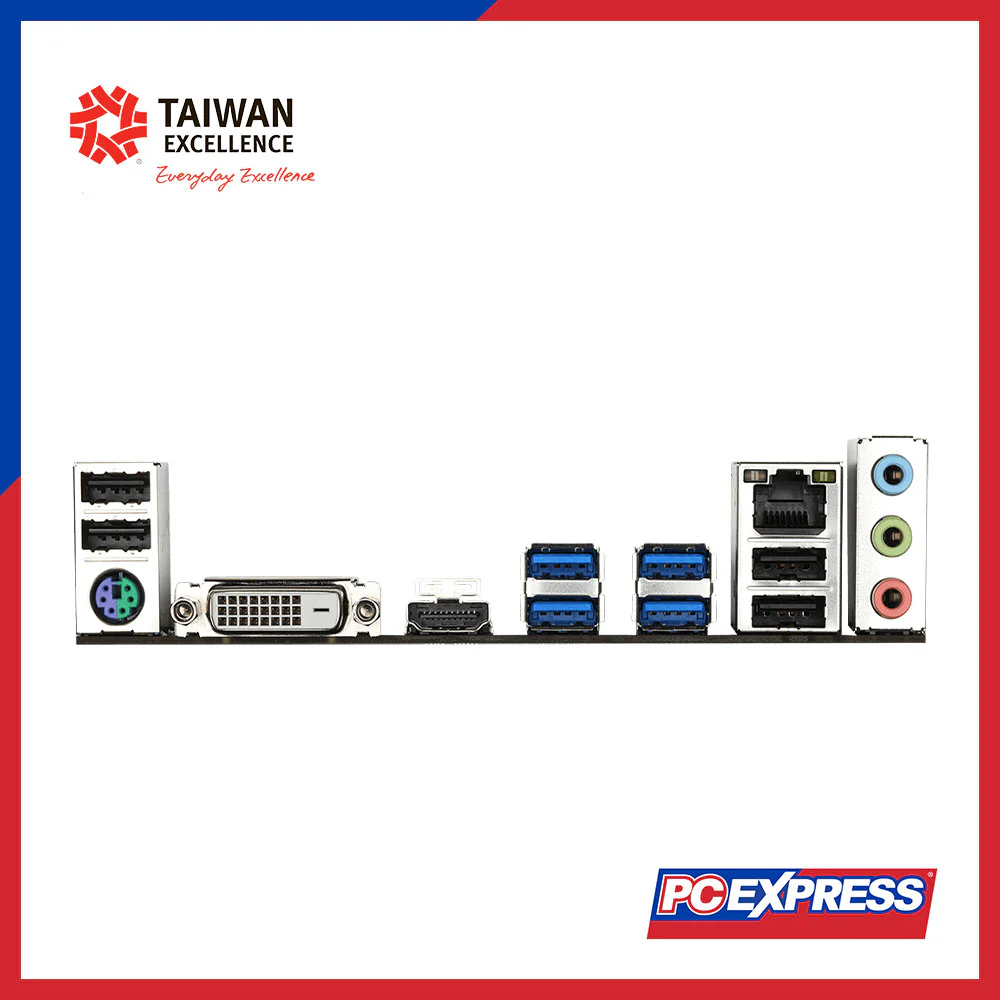

Back Panel Connectors

PS/2, DVI-D, HDMI, USB, Ethernet, audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed, overheating warning, fan fail warning, fan speed control

BIOS

AMI UEFI BIOS

Unique Features

APP Center, @BIOS, EasyTune, Fast Boot, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash, Xpress Install

Bundled Software

Norton® Internet Security (OEM version), LAN bandwidth management software

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX (24.4cm x 21.5cm)

Remark

Linux drivers from chipset vendors or 3rd party website may be required. Some older OS support may not be available.
