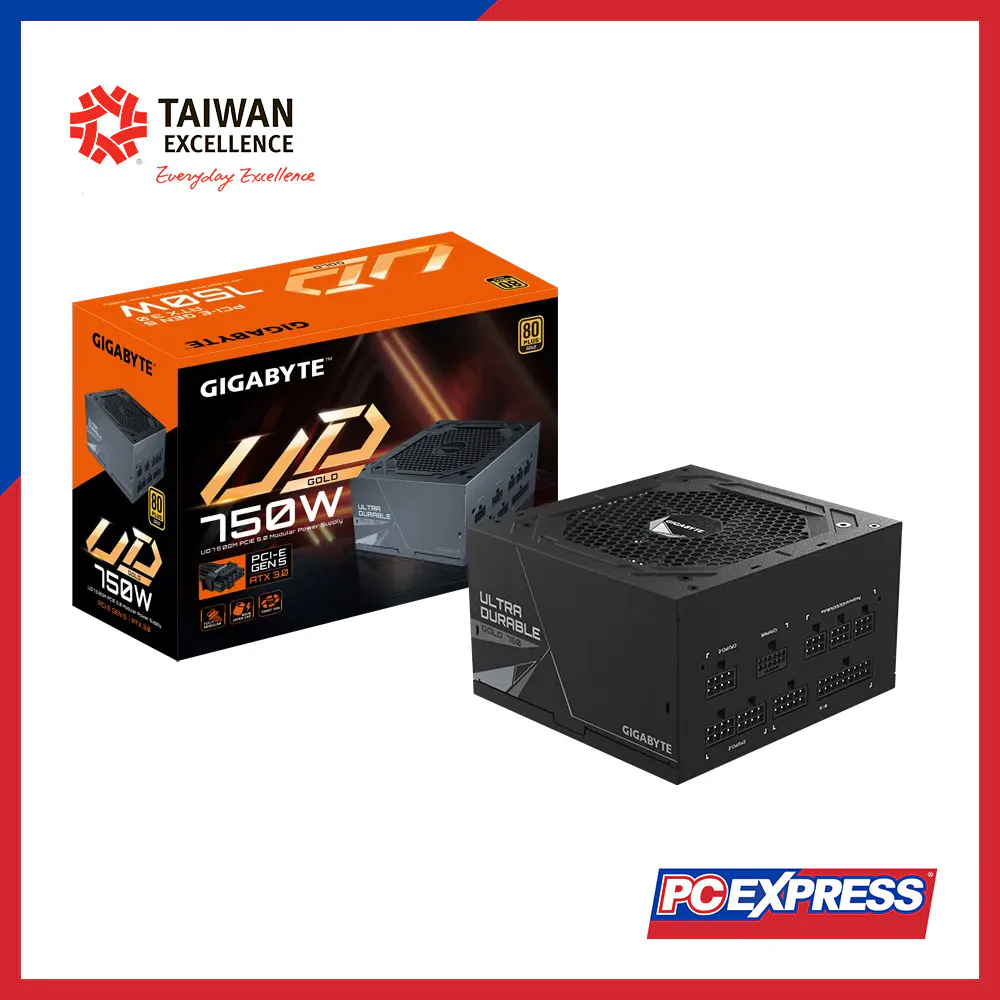

GIGABYTE 750W GP-UD750GM-PG5 80+ Gold Modular Power Supply
SPECIFICATION
|
Model |
GP-UD750GM PG5 |
|
Type |
Intel Form Factor ATX 12V v3.0 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240 Vac (full range) |
|
Input Current |
12-6A |
|
Input Frequency |
60-50 Hz |
|
Output Capacity |
750W |
|
Dimension |
150 x 140 x 86mm |
|

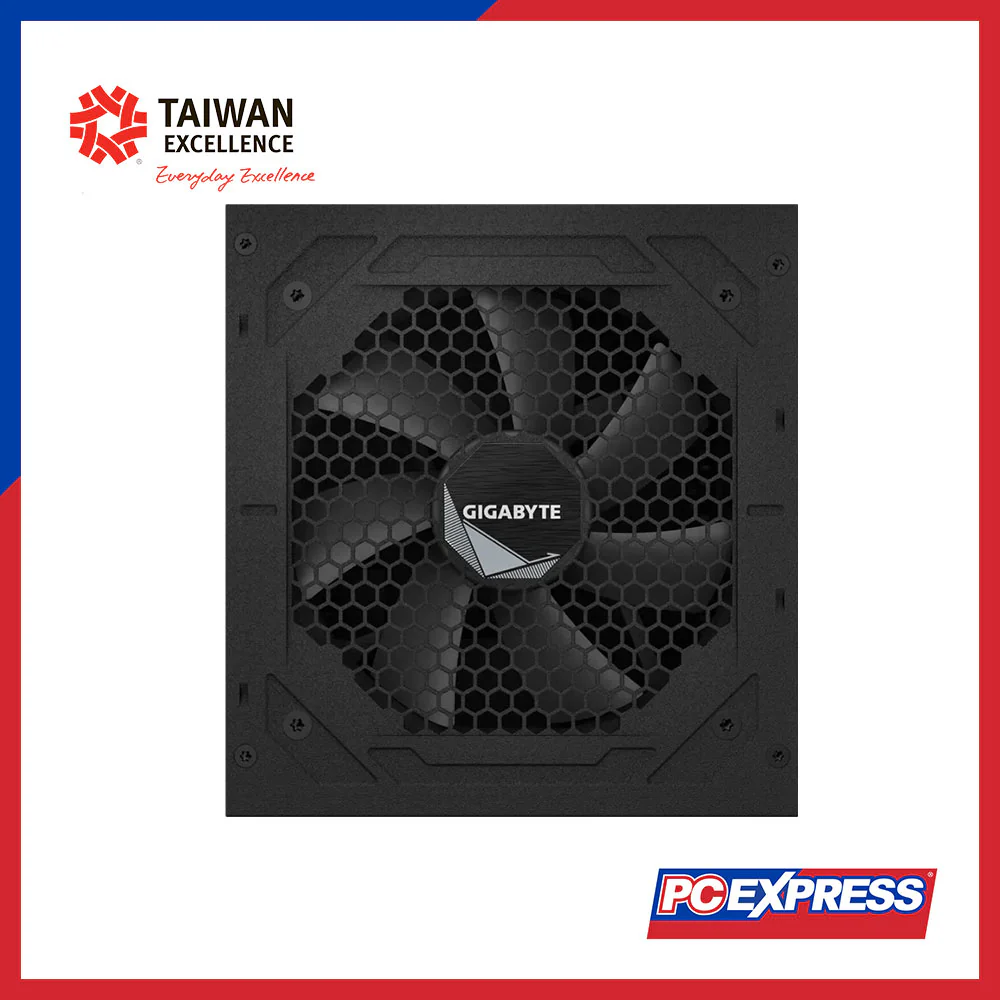

Fan Type |
120mm Hydraulic Bearing (HYB) fan |
|
80 PLUS |
Gold |
|
Efficiency |
90% at typical load |
|
MTBF |
>100,000 hours |
|
Protection |
OVP, OPP, SCP, UVP, OCP, OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|

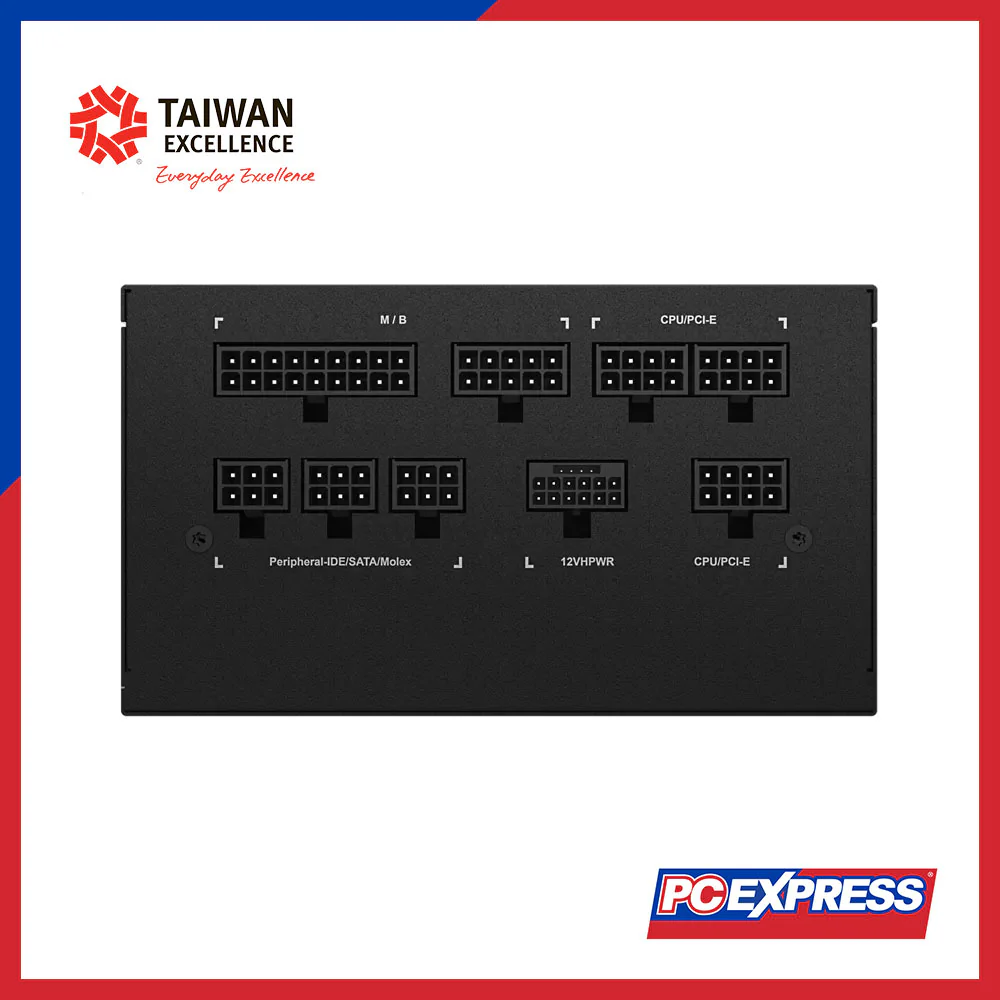

Connectors |
|
|
ATX/MB 20+4 Pin x 1: 610mm |
|
|
CPU/EPS 4+4 Pin x 2: 600mm + 200mm |
|
|
PCIe 16 Pin x 1: 700mm |
|
|
PCIe 6+2 Pin x 4: 600mm + 150mm x 2 |
|
|
SATA x 8: 600mm + 150mm + 150mm + 150mm x 2 |
|
|
4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm + 120mm + 120mm + 150mm |
