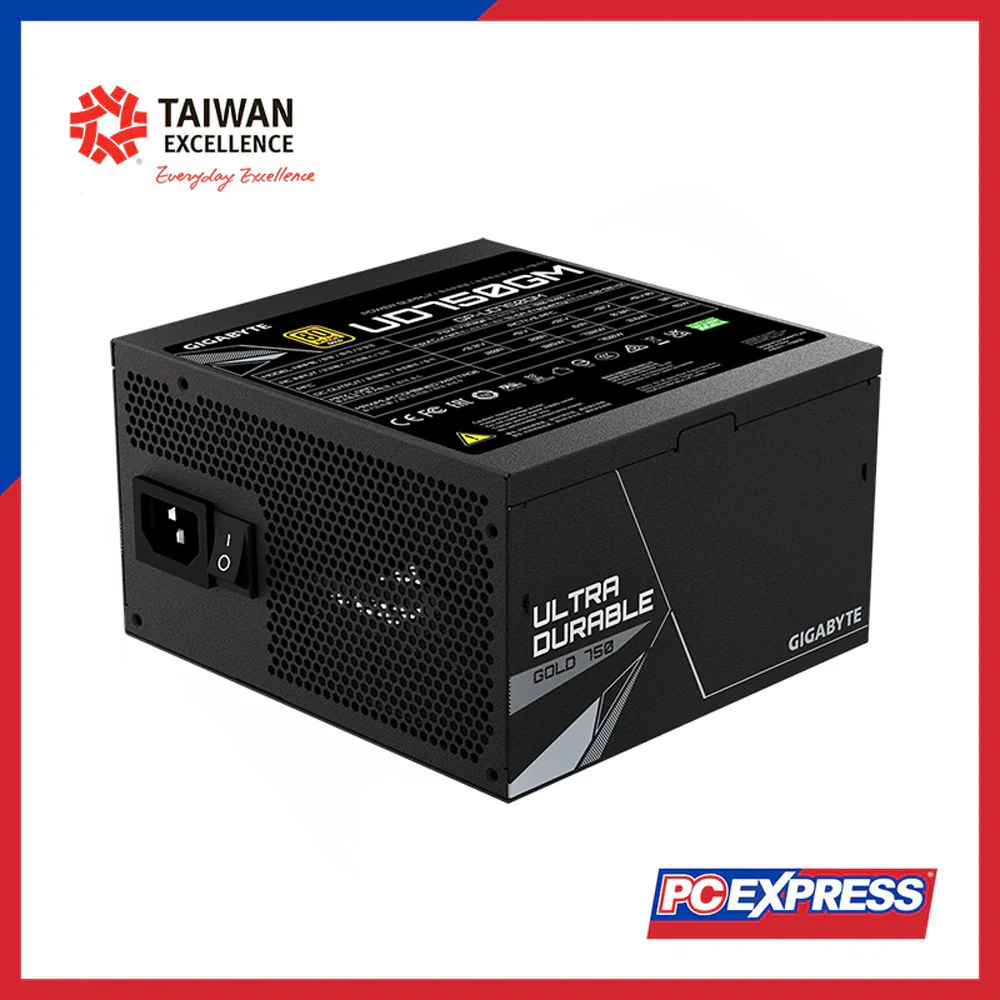

GIGABYTE 750W GP-UD750GM 80+ GOLD Fully Modular Power Supply

Model

GP-UD750GM

Type

Intel Form Factor ATX 12V v2.31

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

12-6A

Input Frequency

60-50 Hz

Output Capacity

750W

Dimension

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing (HYB) fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

Connectors

- ATX/MB 20+4 Pin x 1 : 610mm*1

- CPU/EPS 4+4 Pin x 2 : 600mm*2

- PCI-e 6+2 Pin x 4 : 600mm+150mm*2

- SATA x 8 :

600mm+150mm+150mm+150mm*2

- 4 Pin Peripheral x 3+4-Pin floppy x 1 :

500mm+120mm+120mm+150mm*1
