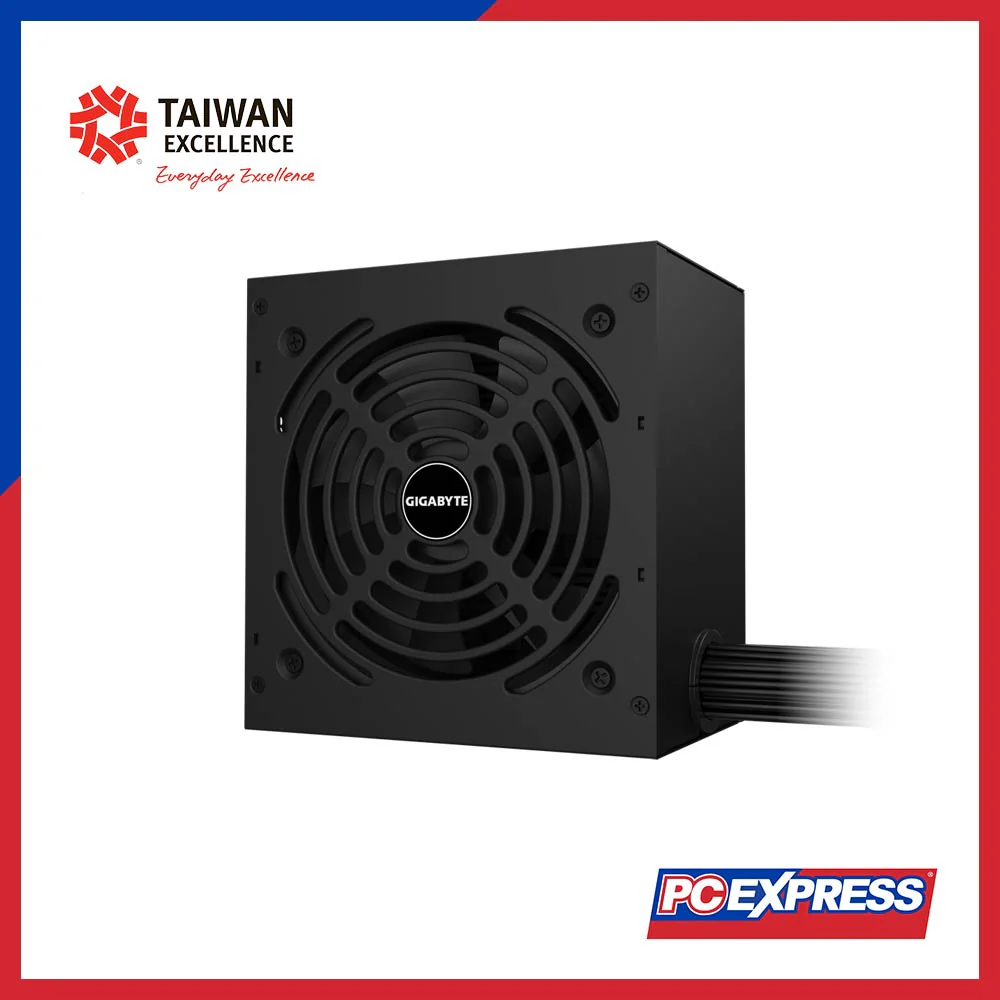

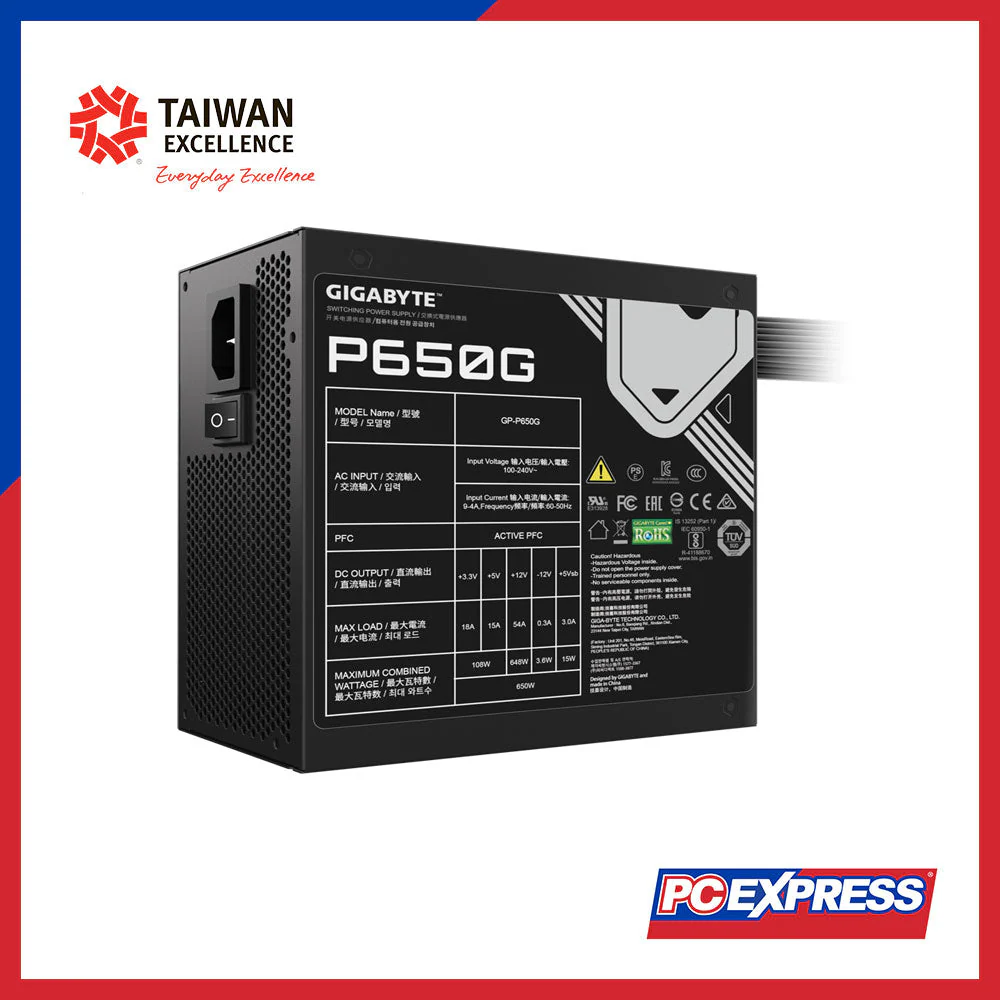

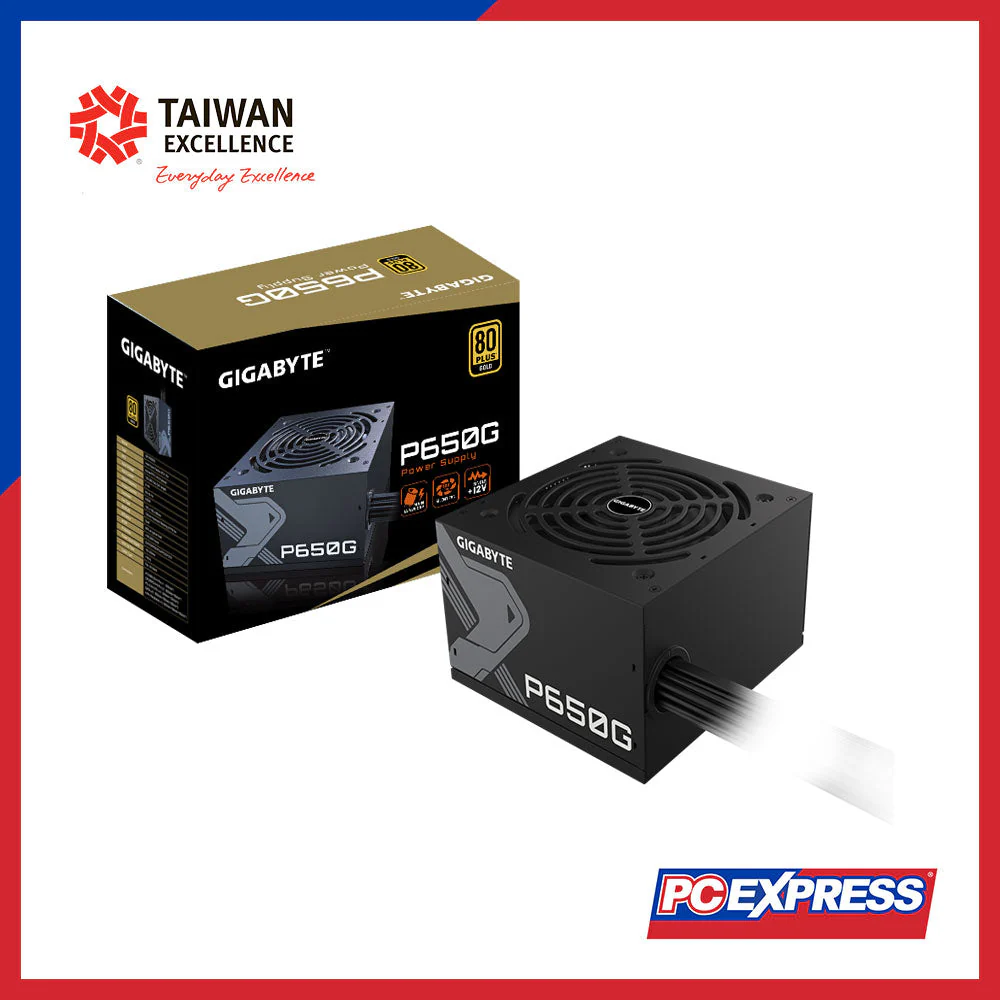

GIGABYTE 650W GP-P650G 80+ Gold Power Supply

 Model

GP-P650G

Type

Intel Form Factor ATX 12V

PFC (Power Factor Correction)

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

9-4A

Input Frequency

60-50 Hz

Output Capacity

650W

Dimension

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing (HYB) Fan

80 PLUS Rating

Gold

Efficiency

90% at typical load

MTBF (Mean Time Between Failures)

>100,000 hours

Protection Features

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-500ms

Hold Up Time

>16ms

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 (600mm)

CPU/EPS 4+4 Pin x 2 (600mm+150mm)

PCI-e 6+2 Pin x 4 (500mm+150mm)

SATA x 6 (500mm+150mm+150mm)

4 Pin Peripheral x 3 (500mm+150mm+150mm)
