GALAX GeForce RTX™ 5080 EX Gamer 1-Click OC 16GB GDDR7 256-bit Graphics Card

Part Number

58NZN6MDBYEX

GPU Engine Specs – CUDA Cores

10,752

GPU Engine Specs – Boost Clock

TBC MHz

GPU Engine Specs – 1-Click OC Clock

TBC (via Xtreme Tuner Plus 1-Click OC)

Memory Specs – Memory Speed

30 Gbps

Memory Specs – Standard Memory Config

16 GB GDDR7

Memory Specs – Memory Interface Width

256-bit

Memory Specs – Memory Bandwidth

960 GB/sec

Feature Support – PCI-Express Standard

5.0

Feature Support – OS Compatibility

Windows 10/11 64-bit

Fan Feature – Fan Configuration

92 mm × 102 mm × 92 mm

Fan Feature – Technology

WINGS 3.0 with Fan Stop @ Idle (All Fans)

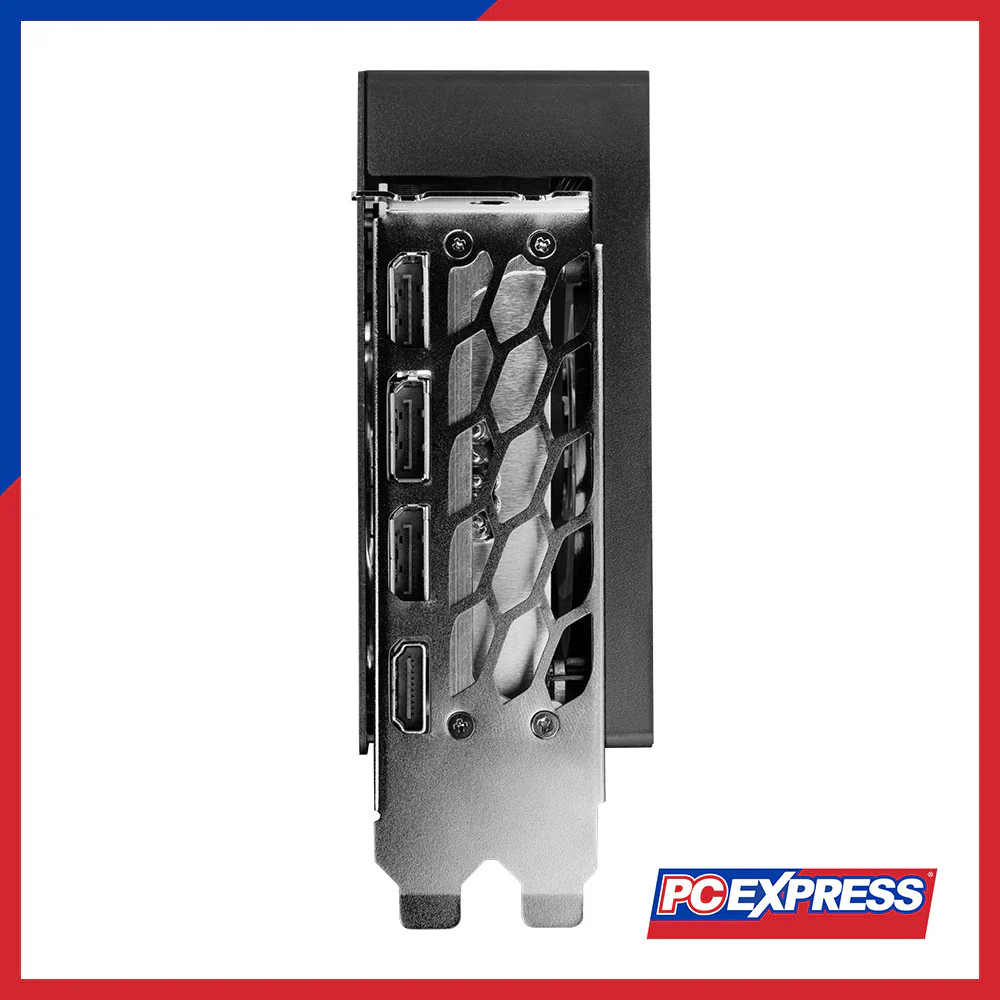

Display Support – DisplayPort

3 × DisplayPort 2.1b

Display Support – HDMI

1 × HDMI 2.1b

Dimensions – With Bracket

334 × 144 × 52 mm

Dimensions – Without Bracket

322 × 130 × 52 mm (NVIDIA SFF-Ready)

Box Accessories

Metallic Support Stick, PCIe 1 × 16-pin to 3 × 8-pin adaptor, 1-Click Sync Pro Cable
