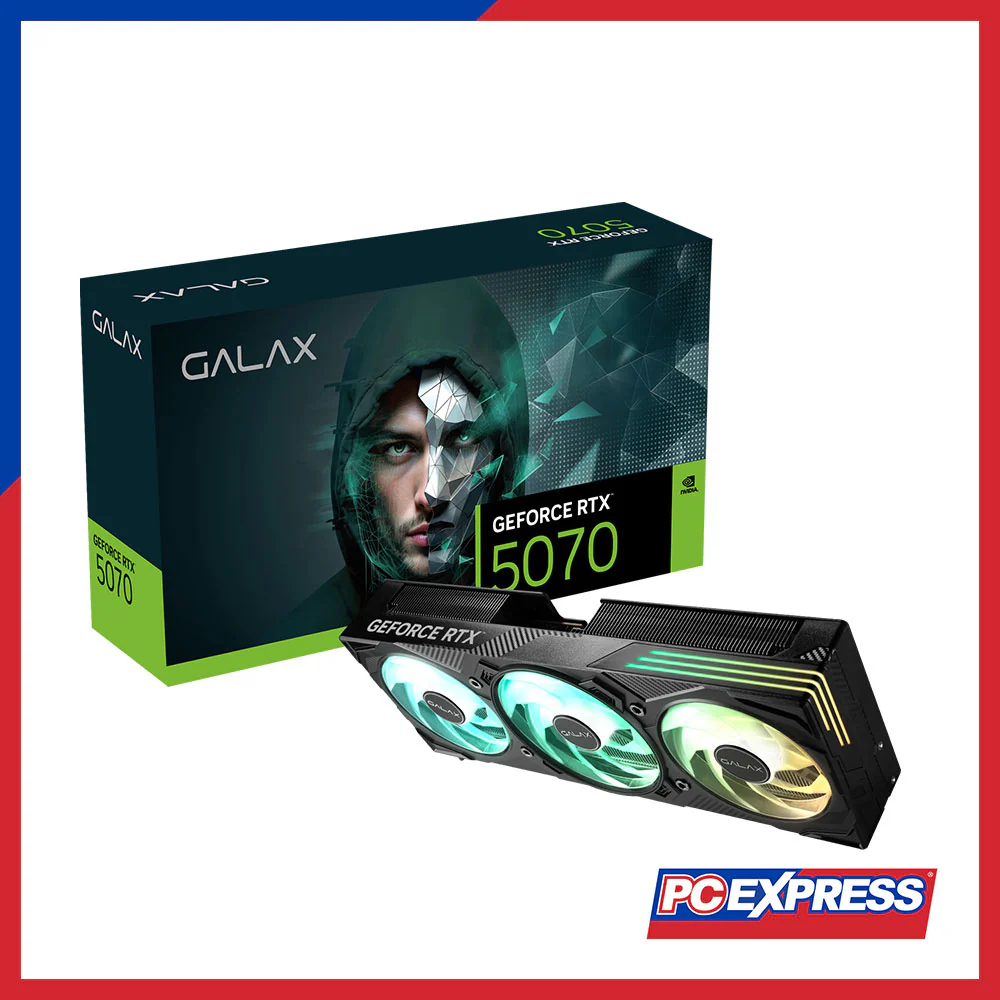

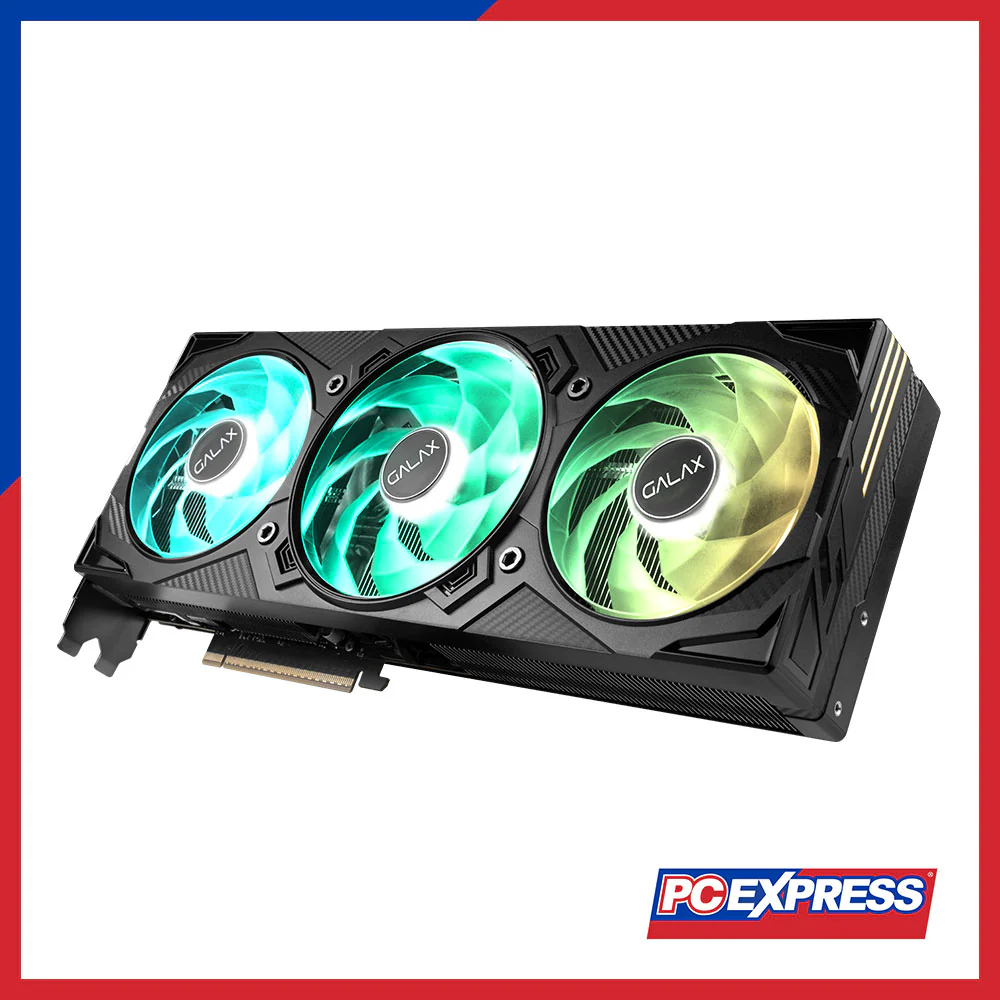

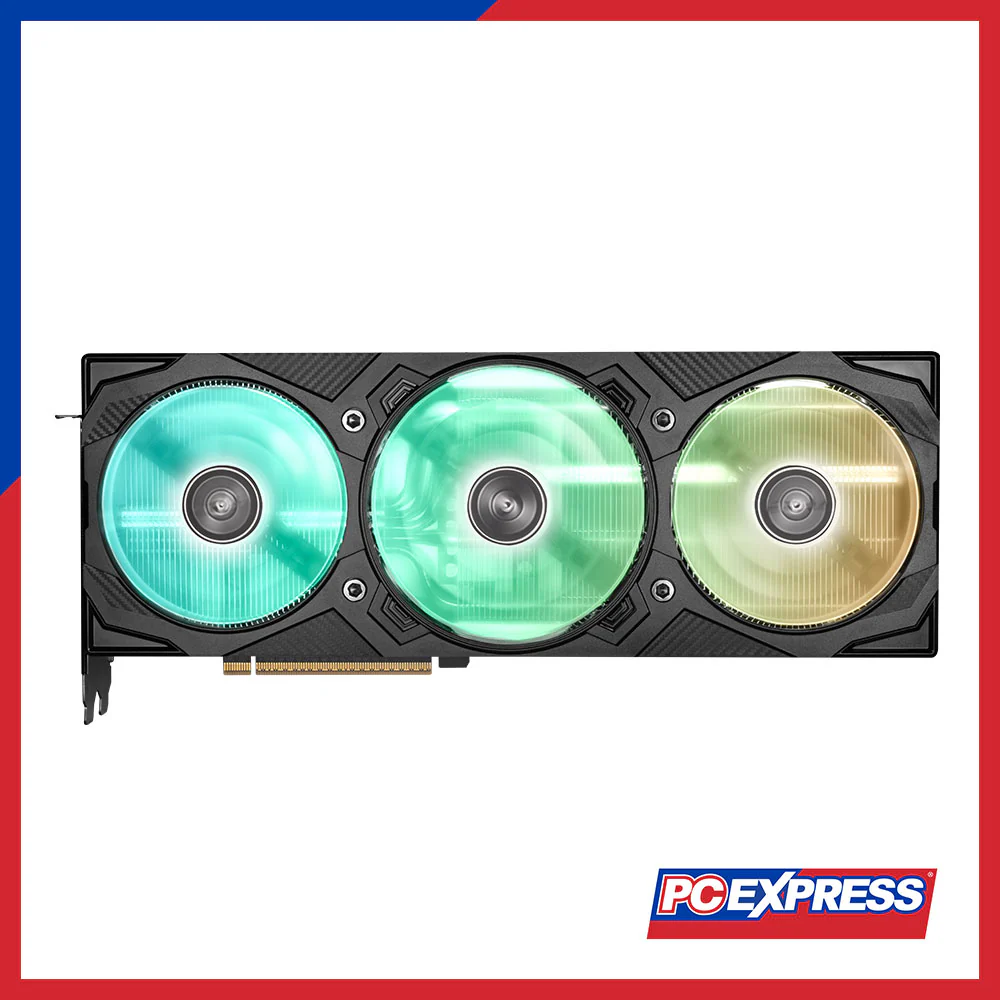

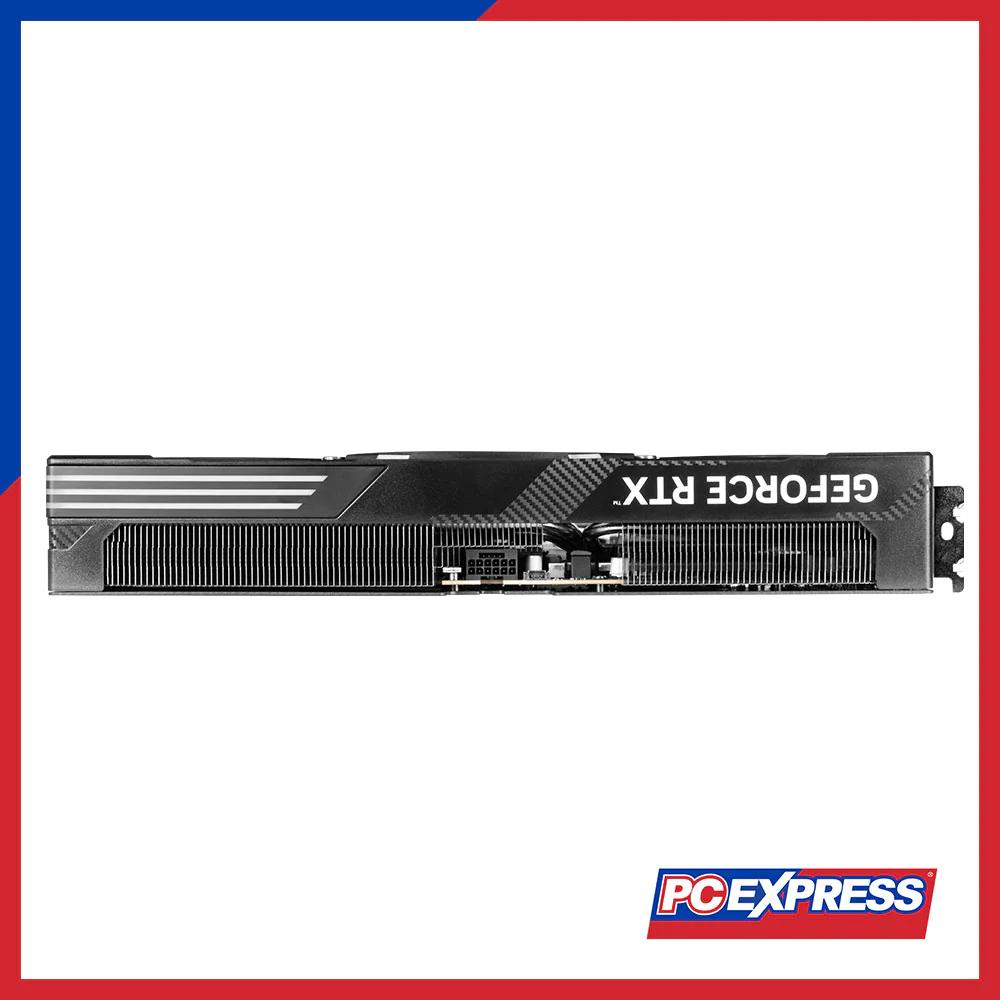

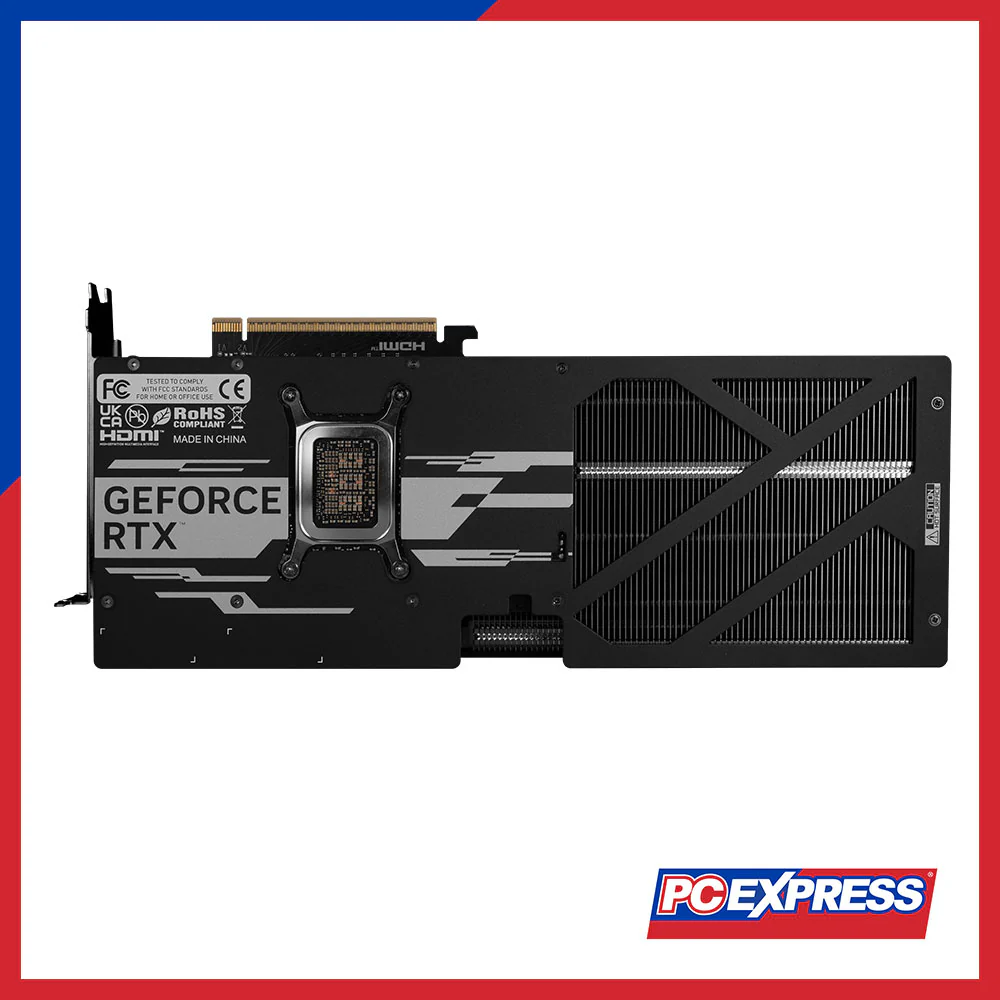

GALAX GeForce RTX™ 5070 EX Gamer 1-Click OC 12GB GDDR7 192-bit Graphics Card
SPECIFICATION
|
Part Number |
57NON7MDBUEX |
|
GPU Engine Specs – CUDA Cores |
6,144 |
|
GPU Engine Specs – Boost Clock |
2,557 MHz |
|
GPU Engine Specs – 1-Click OC Clock |
2,572 MHz (via Xtreme Tuner Plus 1-Click OC) |
|
Memory Specs – Memory Speed |
28 Gbps |
|
Memory Specs – Standard Memory Config |
12 GB GDDR7 |
|
Memory Specs – Memory Interface Width |
192-bit |
|
Memory Specs – Memory Bandwidth |
672 GB/sec |
|
Feature Support – PCI-Express Standard |
5.0 |
|
Feature Support – OS Compatibility |
Windows 10/11 64-bit |
|
Fan Feature – Fan Configuration |
92 mm × 102 mm × 92 mm |
|
Fan Feature – Technology |
WINGS 3.0 with Fan Stop @ Idle (All Fans) |
|

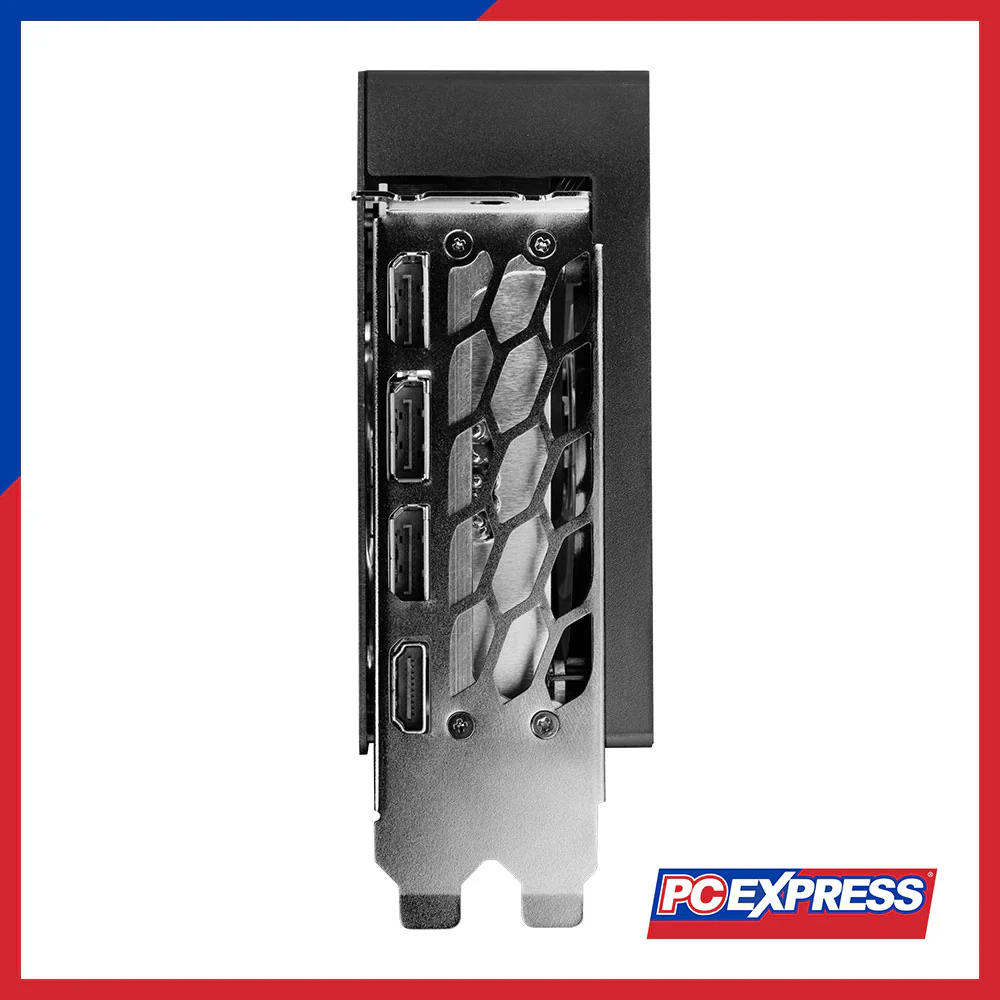

Display Support – DisplayPort |
3 × DisplayPort 2.1b |
|
Display Support – HDMI |
1 × HDMI 2.1b |
|
Dimensions – With Bracket |
334 × 144 × 52 mm |
|
Dimensions – Without Bracket |
32a2 × 130 × 52 mm (NVIDIA SFF-Ready) |
