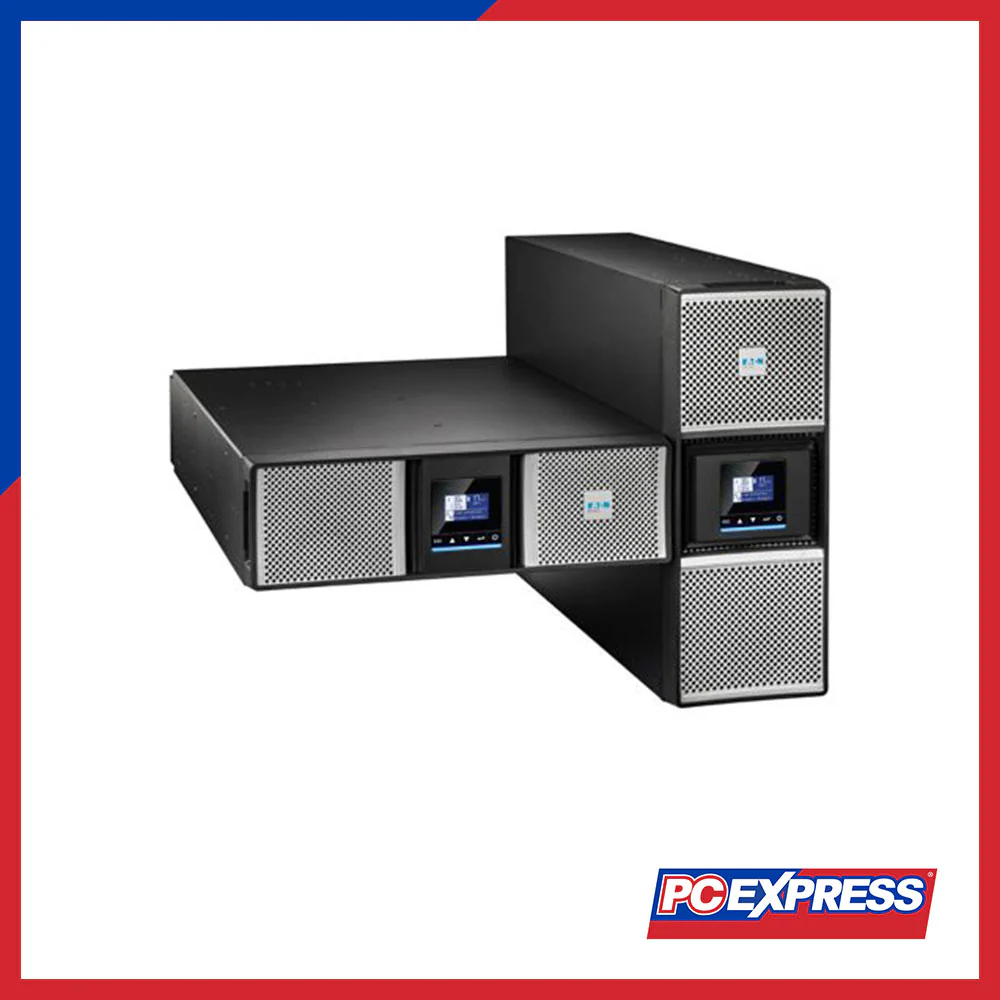

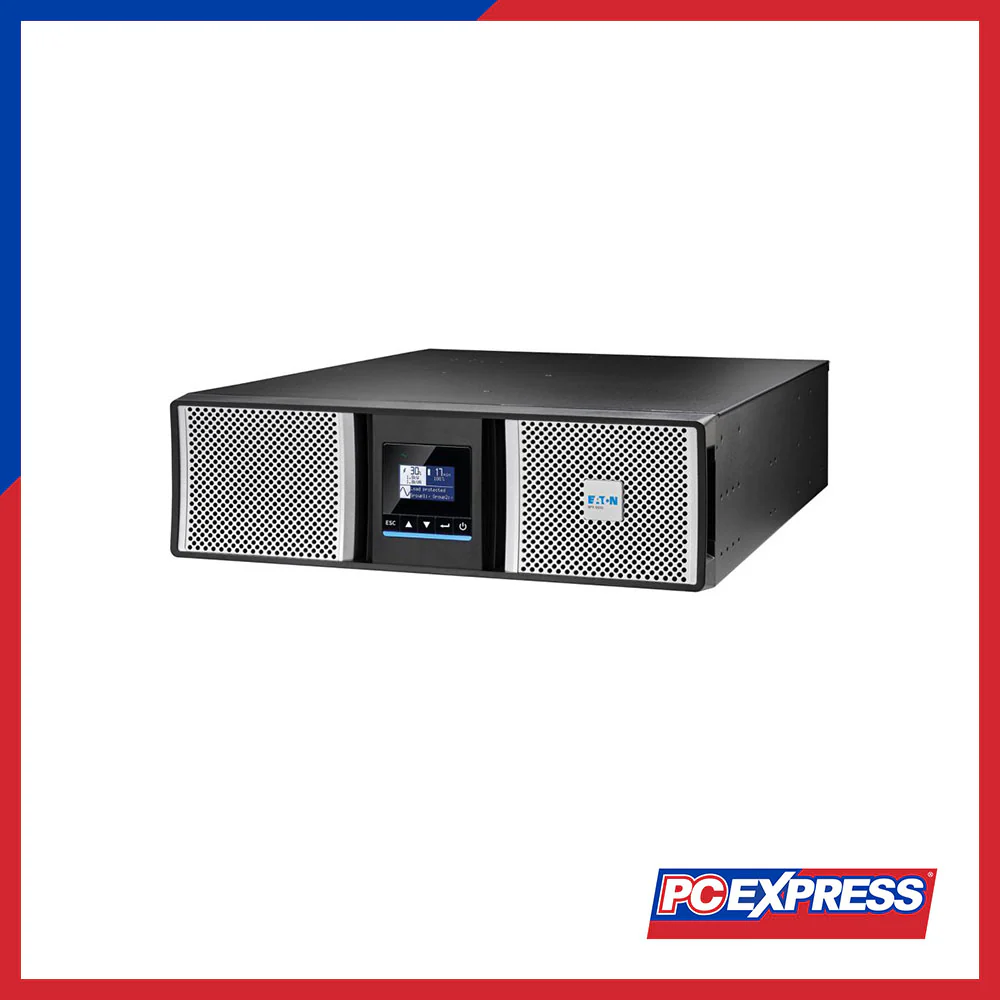

EATON 9PX 5000i RT3U Netpack G2 Uninterruptible Power Supply
SPECIFICATION
|
SKU |
9PX5KIRTNG2 |
|
Model Code |
Eaton 9PX 5000i RT3U Netpack G2 |
|
Description |
Eaton 9PX Gen2 UPS Netpack, 5000 VA, 5000 W, Hardwired input, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included |
|
Product Name |
Eaton 9PX Gen2 UPS |
|
Catalog Number |
9PX5KIRTNG2 |
|
EAN |
3553340710551 |
|
Product Length/Depth |
684 mm |
|
Product Height |
130 mm |
|
Product Width |
440 mm |
|
Product Weight |
43.1 kg |
|
Warranty |
3 year on electronics, 2 year on battery |
|
Compliances |
LVD Directive (CB), EMC Directive, RoHS Directive, REACH, WEEE Directive, Packaging Directive, Batteries Directive |
|
Certifications |
IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR, CE, cULus, UKCA, Cm, Ukr, RCM |
|
Construction Type |
482.6 mm (19 inch) device |
|
Package Contents |
UPS, (2) cable glands, (2) IEC-IEC output cables (1.2m), USB cable (1.8m), Network Management Card, tower supports, rack-mounting kit (brackets & rails), safety instructions, quick start guide |
|
Internal Bypass |
Yes |
|
Auto Shutdown Function |
Yes |
|
Color |
Black/silver |
|
Efficiency at Max Load |
96.7% |
|
Rack Mounting Kit |
Yes |
|
Hot Swap Power |
No |
|
Battery Type |
Sealed, lead-acid |
|
Runtime Graph |
View runtime graph |
|
Battery Quantity |
15 |
|
Battery Management |
ABM+ (Predictive battery life), temperature compensated charging, automatic battery test, deep discharge protection, automatic recognition of external battery units |
|
Battery Rating |
12 V / 5 Ah |
|
Extended Battery Capability |
Yes |
|
Includes Network Card |
Yes |
|
Communication |
USB (HID compliant), Serial (RS232), remote On/Off, remote power off, dry contacts (2), network card |
|
Ethernet Interface |
Yes |
|
User Interface |
Multilingual graphical LCD display |
|
Potential Free Switch Contact |
Yes |
|
Expansion Slots |
One slot, network card included |
|
Software Compatibility |
Eaton Brightlayer Software suite |
|
Interface Type |
Other |
|
Nominal Frequency |
50/60 Hz |
|
Input Power Factor |
>0.99 |
|
Input Voltage Range |
176–276 V (100–276 V with derating) |
|
Input Frequency Range |
40–70 Hz |
|
Receptacle |
(6) C13, (6) C39, Hardwired |
|
Voltage |
230 V |
|
VA Rating |
5000 VA |
|
Wattage |
5000 W |
|
Output Power Factor |
1 |
|
Output Voltage Range |
200/208/220/230/240 V ±1% |
|
Output Waveform |
Sine wave |
|
Output Nominal Voltage |
230 V default (200/208/220/230/240 V) |
|
Voltage Distortion (Linear Load) |
≤1% |
|
Feed Type |
1 |
|
Topology |
Online / Double-conversion |
|
Altitude |
3000 m |
|
Noise Level |
<40 dB at 1 meter |
|
Temperature Range |
0°C to 40°C (32°F to 104°F) |
|
Relative Humidity |
0–95% non-condensing |
