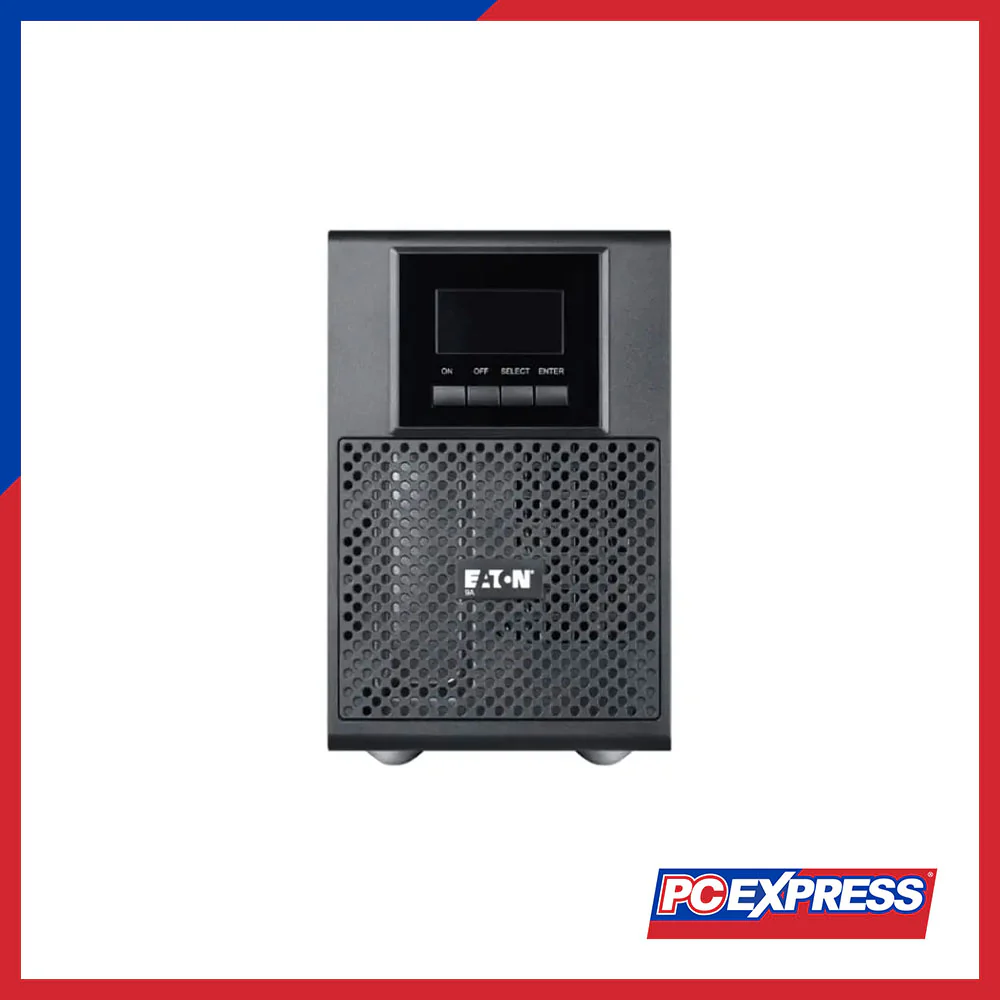

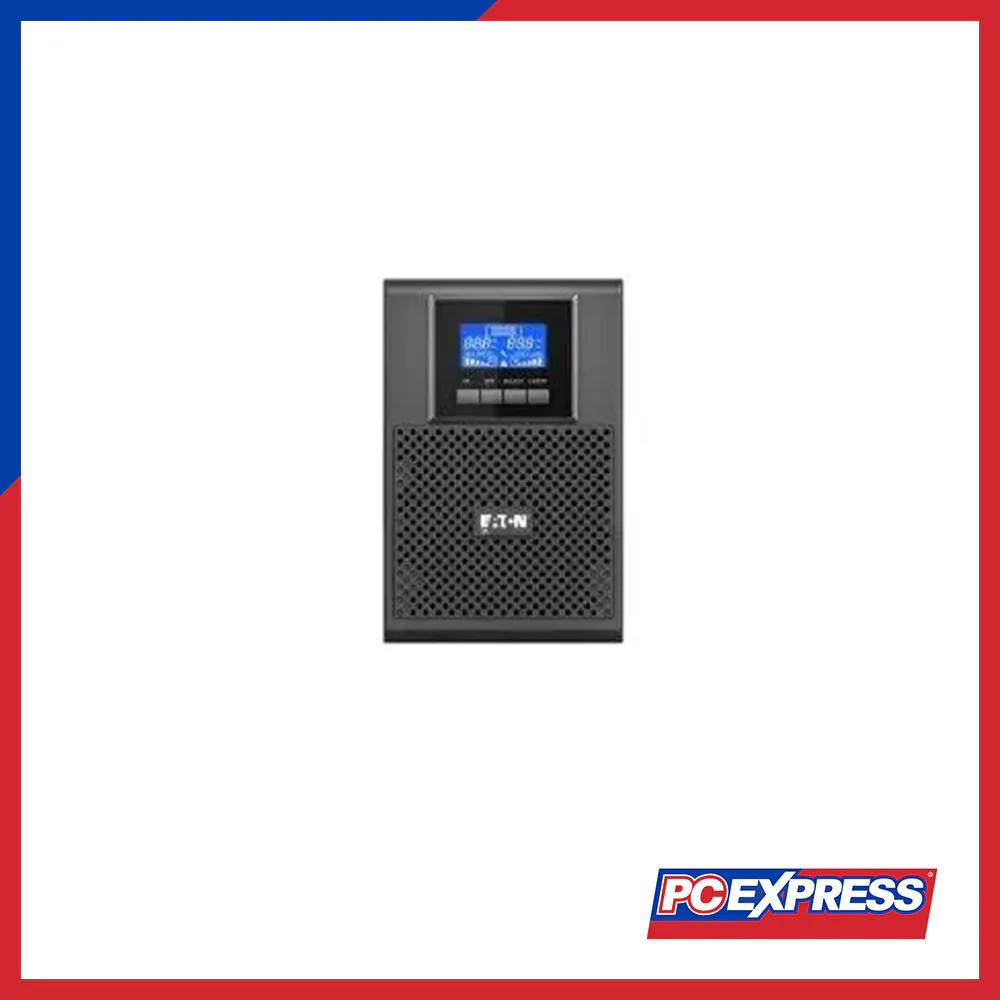

EATON 9A 1000VA Tower Uninterruptible Power Supply

Models

9A1000i

Rating (VA/W)

1000/900

Format

Tower (9A1000i, 9A2000i, 9A3000i); Rack (9A1000iR, 9A2000iR, 9A3000iR)

Mains Input – Wiring

1 phase, 3 wires (L / N + PE)

Mains Input – Rated Voltage

220/230/240 VAC

Mains Input – Voltage Range

176–300V (100% load); 100–176V (derating to 40% load linearly)

Mains Input – Input Power Factor

0.99

Mains Input – THDI

5% typical, 7% max

AC Output – Wiring

1 phase (L / N + PE)

AC Output – Output Voltage

220/230/240 VAC

AC Output – Voltage Regulation

±1%

AC Output – Output Frequency

50/60 Hz

AC Output – THDv

<2% (linear load); <6% (non-linear load)

Efficiency – Line Mode

89%; 90%; 91%; 89%; 89%; 91%

Efficiency – ECO Mode

Up to 95%

Battery Configuration – Voltage

24V / 48V / 72V

Battery Configuration – Capacity

2×12V/9Ah; 4×12V/9Ah; 6×12V/9Ah

Battery – Backup Time @100% Load (0 EBM)

4 mins / 4 mins / 4 mins

Battery – Backup Time @100% Load (1 EBM)

25 mins; 26 mins; 18 mins; 25 mins; 18 mins; 19 mins

Battery – Charging Current

1.5A

Battery – EBM

Standard models support EBMs

Physical – IP Protection Level

IP20

Physical – Dimensions (W×H×D mm)

Tower: 145×230×355; 190×325×400; 190×325×400 / Rack: 438×86×435; 438×86×435; 438×86×608

HMI – LCD Display

Segment LCD with red warning/error indication

HMI – Communication

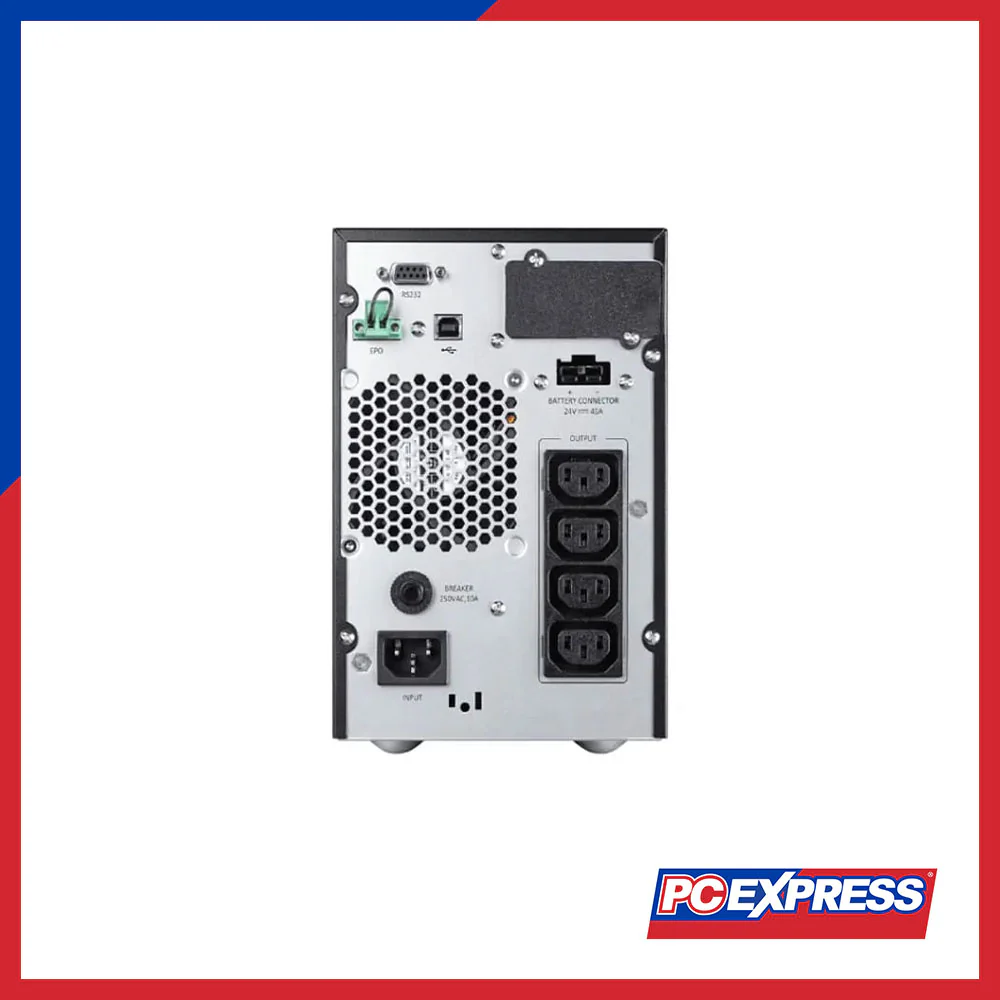

RS232, EPO, Battery connector, USB (non-HID), Mini Slot, Circuit breaker

HMI – Connectivity Card

NMC G1 / AS400 / CMC G1 Modbus

HMI – Language

English

HMI – Software

WinPower

Operating Environment – Temperature

0 ~ 40 °C

Operating Environment – Humidity

0–95% (non-condensing)

Operating Environment – Altitude

0–3000 m (1% load derating per 100 m from 1000–3000 m)

Operating Environment – Noise

<50 dB (ISO 7779, 1 m distance, without buzzer)

Connections – Input

IEC C14 (1k/2k models); IEC C20 (3k models)

Connections – Output

(4) IEC C13 + (1) C19; (4) IEC C13; (6) IEC C13 + (1) C19

Regulations & Certification

CE, KC, TISI, IEC 62040-1, IEC 62040-2

Accessories

RS-232 cable, Quickstart guide, rack brackets, optional rail kit, EBM cable
