D-Link DWR-U2000 5G NR MiFi Mobile Hotspot
Specifications
| 3GPP | R8, R9..., R15 |
| Throughpu Rate | HSDPA: Max. 42.2Mbps (DL) (Category 24), HSUPA: Max.11Mbps (UL) (Category 7), WCDMA: Max. 384Kbps (DL) / 384Kbps (UL), LTE FDD: Max.300Mbps (DL) / 50Mbps, LTE TDD: Max.260Mbps (DL) / 30Mbps (UL), 5G NR TDD: Max.2Gbps (DL) / 500Mbps (UL) |
| LTE ANT | 1T2R |
| 5G ANT | 1T4R |
| WCDMA / HSPA | B1/B8 |
| TDD-LTE | B34/38/39/40/41 |
| FDD-LTE | B1/B3/B5/B7/B8/B20/B28AB |
| CA | 1A-3A: 1A-5A: 1A-7A: 1A-8A,1A-20A,3A-5A, 3A-7A; 3A-8A,3A-20A, 7A-8A; 7A-20A, 39A-41AB1C; B3C; B5B; B7C; B8B; B38C; B39C; B40C:B41C; 1A-1A; 3A-3A; 5A-5A, B7A-B7A; 40A-40A;41A-41A: B1C; B3C,B5B; B7C; B8B; B38C:B39C; B40C; B41C; 40D; 41D; 39C-41A; 39A-41C:1A-3C:; 1A-3A-5A/7A/8A: 3A-7A-20A: 1A-7A-8A/20A |
| 5G NR | N1/N3/N20/N28 1T2R, N41/N77/N20/N28 1T4R |
| Output Power | Class 3 (24 dBm + 1/-3 dB), WCDMA band, Class 3 (23 dBm ± 2 dB), LTE band, Class 3 (23 dBm ± 2 dB), 5G NR band |
| WiFi Standard | 802.11ac Up to 1.2Gbps |
| WiFi Protocol | 2.4GHz , 5.0GHz, 80211 a/b/g/n/ac |
| WiFi ANT | 2 x 2 |
| Output Power | 18dBm (Max) in 11b mode, 16dBm (Max) in 11g mode, 15dBm (Max) in 11n mode, 15dBm (Max) in 11ac mode |
| Sensitivity | MCS9: -63dMb@10% PER, MCS7: 068dBm@10% PER, 54M: -70dBm@10% PER, 11M: -83dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER |
| Data Rate | 11ac: 867/780/650...65Mbps (Auto Rate Sensing), 11g: 54/48/36/24/18/12/9/6 Mbps (Auto Rate Sensing), 11b: 11/5.5/2/1Mbps (Auto Rate Sensing), 11n: 300Mbps/.../6.5 Mbps (Auto Rate Sensing), 200~300 Mbps @ 11ac |
| Protocol | TCP/UDP/NTPFTP/HTTP/PING/HTTPS/FTPS/MQTT/MMS |
| IPv4/IPv6 | Support |
| WebGUI | Support |
| RNDIS | Support |
| Upgrade | Web GUI / FOTA |
| Security | WEP,WPA/WPA2/WPA3-Personal/WPA3-Enhanced Open, WPS 2.0 , WAPI, WPI-SMS4, EAP-TLS/EAP-TTLS/EAP-PEAP/EAP-SIM/EAP-AKA |

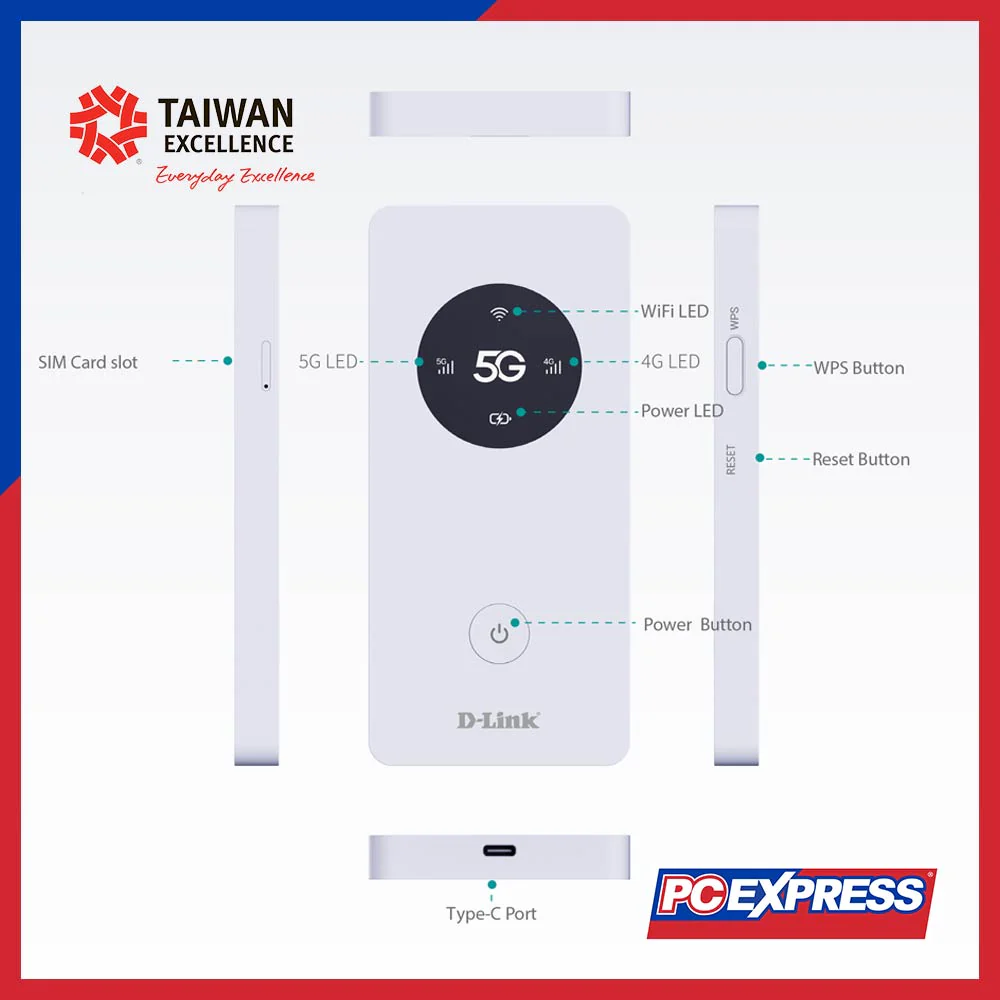

| Keys | WPS, Reset, Power |
| IO | USB2.0, Type-C |
| SIM Card | NANO SIM |
| Battery | 5000mAH |
| Charger | 5V/2A |
| LED | Power/4G/5G/WiFi (3 colors) |
| ESD | Contact ±6k, Air ±10k |
| EOS | VBAT 200V, VBUS 200V |
| Operation Temperature | -10℃ ~ +40 ℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Battery | Yes, 5000mAH internal |
| USB Cable | Yes |
| Charger | Yes, 5V/2A |
| Earphone | No |
| OTG Cable | No |
| T-Flash Card | No |
| Warranty Card | Yes |
| Dimension | 150 x 70 x 15mm (H x W x D) |
| Weight | 150g |
| QIG | Yes |
| Certification | CE |
