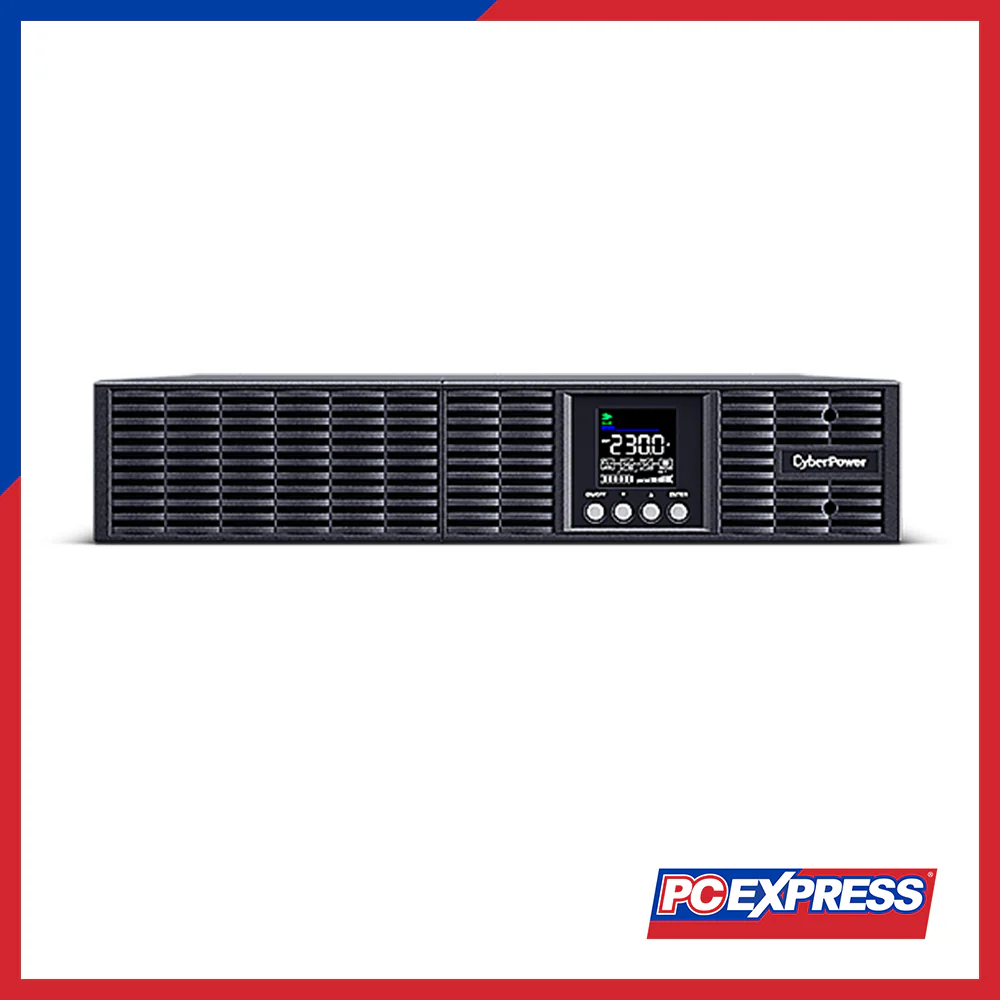

CYBERPOWER OLS3000ERT2UA 3000VA/2700W Uninterruptible Power Supply

Phase

Single Phase

Form Factor

Rackmount, Tower

UPS Topology

Online Double Conversion

Energy Saving Technology

ECO Mode Efficiency > 95%

Active PFC Compatibility

Yes

Generator Compatibility

Yes

Nominal Input Voltage (Vac)

230 ± 10%

Input Voltage Range (Vac)

190 ~ 300

Adjustable Voltage Range (Vac)

030% Load for 80 ~ 300 Vac<br>060% Load for 140 ~ 300 Vac
080% Load for 160 ~ 300 Vac<br>0100% Load for 190 ~ 300 Vac

Input Frequency (Hz)

50 ± 10, 60 ± 10

Input Frequency Detection

Auto-sensing

Rated Input Current (A)

13

Input Power Factor

0.99

Input Connector Type

IEC C20

Detachable Power Cord Plug Type

Schuko x 1

Power Cord Length (ft)

5

Power Cord Length (m)

1.5

Capacity (VA)

3000

Capacity (Watts)

2700

On Battery Waveform

Pure Sine Wave

On Battery Voltage (Vac)

208 / 220 / 230 / 240 ± 1 % (Configurable)

On Battery Frequency (Hz)

50 ± 0.5%, 60 ± 0.5%

Output Frequency Setting

Configurable

Power Factor

0.9

ECO Mode Voltage Tolerance

± 15 %

Overload Protection

Internal Current Limiting, Circuit Breaker, Fuse

Overload Protection (Line Mode)

110~120% Load for 1 min, >120% Load Immediately

Overload Protection (Battery Mode)

110~120% Load for 10 sec, >120% Load Immediately

Overload Protection (Bypass Mode)

>130% Load Immediately

Crest Factor

3 : 1

Harmonic Distortion (Linear Load)

THD < 3%

Harmonic Distortion (Non-linear Load)

THD < 5%

Internal Bypass

Automatic Bypass, Manual Bypass

Outlet(s) - Total

10

Outlet Types

IEC C19 x 2, IEC C13 x 8

Outlet(s) - Battery & Surge Protected

10

Critical Load Outlets

6

Non-critical Load Outlets

4

Typical Transfer Time (ms)

0

Runtime at Half Load (min)

13.1

Runtime at Full Load (min)

4.2

Typical Recharge Time (hrs)

4

Maximum Charging Current (A)

1.5

Start On Battery

Yes

Smart Battery Management (SBM)

Yes

User-replaceable

Yes

Hot-swappable

Yes – Qualified Personnel Only

Battery Type

Sealed Lead-acid

Replacement Battery Pack

RBP0158

RBP Quantity (pcs)

1

Battery Quantity per RBP (pcs)

6

Battery Voltage per RBP (V)

72

Compatible Extended Battery Module (EBM)

BPSE72V40ART2U

Extended Battery Module Auto-detection

Yes

Max. EBM Quantity (pcs)

3

Surge Suppression (Joules)

388

EMI/RFI Filtration

Yes

Phone/Network Protection (RJ11/RJ45 Combo)

1-in, 1-out

LCD Panel

Yes

LCD Type

Color LCD

LCD Orientation

Rotatable LCD – Manual

LCD Display Info

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Info, Event & Log

LCD Settings & Control

Mode, Alarm, Input & Output, Battery Settings

HID Compliant USB Port(s)

1

Dry Contact (with Relay)

Yes

Emergency Power Off (EPO) Port

Yes

Audible Alarms

Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cables Included

Power Cord x2, USB Cable x1

Power Management Software

PowerPanel Business (Recommended)

SNMP/HTTP Remote Monitoring

Yes – with optional RMCARD205

Enclosure Construction

Metal

Color

Black

Rackmount Rail

Yes

Rackmount Ears

Yes

Physical Dimensions (in.)

17.24 x 3.46 x 24.2

Physical Dimensions (mm.)

438 x 88 x 610

Weight (lbs.)

58.8

Weight (kg.)

26.7

Installed Rack Height (U)

2

Shipping Dimensions (in.)

21.3 x 9 x 28.7

Shipping Dimensions (mm.)

540 x 230 x 730

Shipping Weight (lbs.)

69.1

Shipping Weight (kg.)

31.3

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Humidity (%)

5 ~ 95 (non-condensing)

Operating Elevation (ft/m)

0 ~ 4,921 ft / 0 ~ 1,500 m

Storage Temperature (°F)

-4 ~ 122

Storage Temperature (°C)

-20 ~ 50

Storage Humidity (%)

10 ~ 90 (non-condensing)

Storage Elevation (ft/m)

0 ~ 4,921 ft / 0 ~ 1,500 m

Thermal Dissipation (BTU/hr)

911

Variable Speed Fans

20 steps automatically

Audible Noise @1.5m (dBA)

45

Certifications

CE, EAC

RoHS Compliance

Yes
