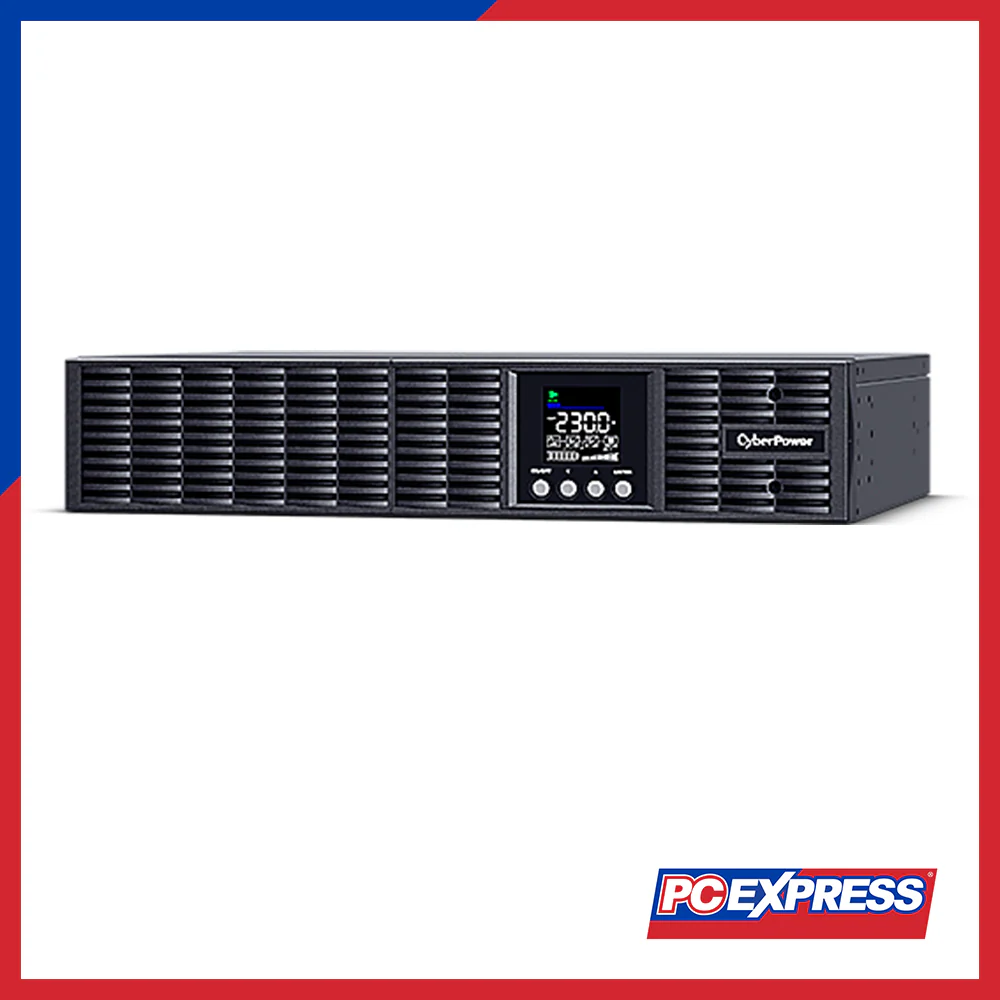

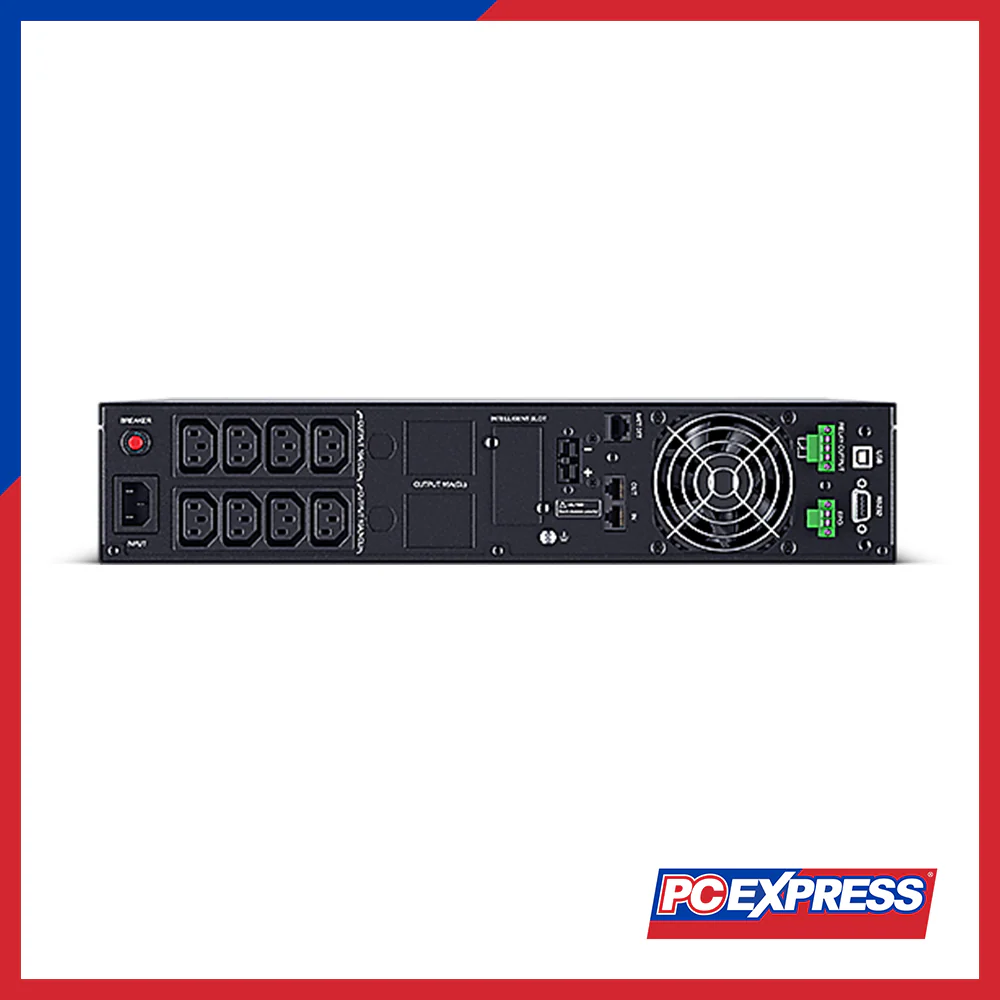

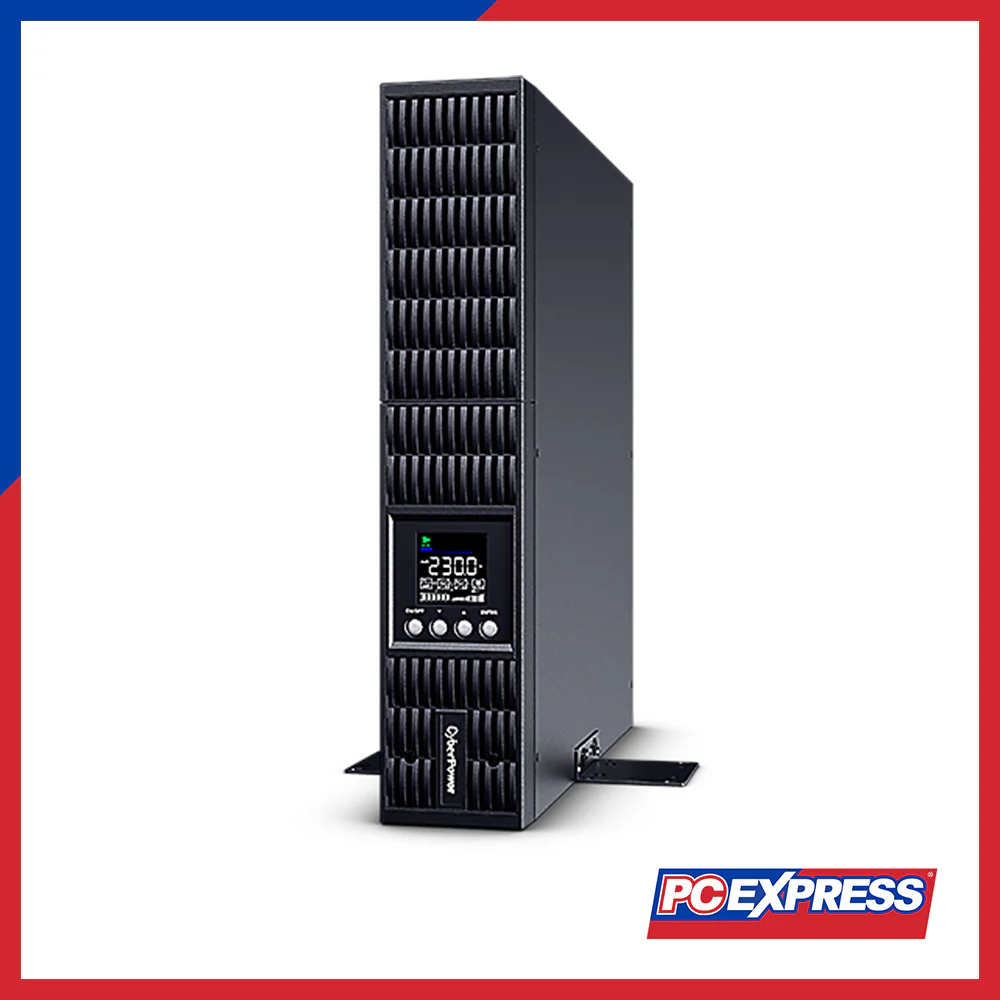

CYBERPOWER OLS2000ERT2UA 2000VA/1800W Uninterruptible Power Supply

Phase

Single Phase

Form Factor

Rackmount, Tower

UPS Topology

Online Double Conversion

Energy Saving Technology

ECO Mode Efficiency > 95%

Active PFC Compatibility

Yes

Input

Generator Compatibility

Yes

Nominal Input Voltage (Vac)

230 ± 10%

Input Voltage Range (Vac)

190 ~ 300

Adjustable Voltage Range (Vac)

80300V @ 0–30% Load<br>120300V @ 0–50% Load
160300V @ 0–75% Load<br>190300V @ 0–90% Load
200~300V @ 0–100% Load

Input Frequency (Hz)

50 ± 10 / 60 ± 10

Input Frequency Detection

Auto-sensing

Rated Input Current (A)

9

Input Power Factor

0.99

Input Connector Type

IEC C14

Detachable Power Cord Plug Type

Schuko x 1

Power Cord Length (ft)

5

Power Cord Length (m)

1.5

Output

Capacity (VA)

2000

Capacity (Watts)

1800

On Battery Waveform

Pure Sine Wave

On Battery Voltage(s) (Vac)

208 / 220 / 230 / 240 ± 1% (Configurable)

On Battery Frequency (Hz)

50 ± 0.5% / 60 ± 0.5% (Configurable)

Power Factor

0.9

ECO Mode Voltage Tolerance

± 15%

Overload Protection

Internal Current Limiting, Circuit Breaker, Fuse

Overload Protection (Line Mode)

110–120% Load for 1 min, >120% Load Immediately

Overload Protection (Battery Mode)

110–120% Load for 10 sec, >120% Load Immediately

Overload Protection (Bypass Mode)

>130% Load Immediately

Crest Factor

3:1

Harmonic Distortion (Linear Load)

THD < 3%

Harmonic Distortion (Non-linear Load)

THD < 5%

Internal Bypass

Automatic Bypass, Manual Bypass

Outlet(s) - Total

8

Outlet Type

IEC C13 x 8

Battery & Surge Protected Outlets

8

Critical Load (CL) Outlets

4

Non-critical Load (NCL) Outlets

4

Typical Transfer Time (ms)

0

Battery

Runtime at Half Load (min)

13.1

Runtime at Full Load (min)

3.8

Typical Recharge Time (Hours)

4

Maximum Charging Current (A)

1.5

Start On Battery

Yes

Smart Battery Management (SBM)

Yes

User-replaceable

Yes

Hot-swappable

Yes – Qualified Personnel Only

Battery Type

Sealed Lead-acid

Replacement Battery Pack (RBP)

RBP0157

RBP Quantity

1

Battery Quantity per RBP

4

Battery Voltage per RBP (V)

48

Compatible Extended Battery Module (EBM)

BPSE48V40ART2U

Extended Battery Module Auto-detection

Yes

Max. EBM Quantity

3

Surge Protection & Filtering

Surge Suppression (Joules)

363

EMI/RFI Filtration

Yes

Phone/Network Protection

RJ11/RJ45 (1-in, 1-out Combo)

Management & Communications

LCD Panel

Yes

LCD Type

Color LCD

LCD Orientation

Rotatable LCD – Manual

LCD Display

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log

LCD Settings & Control

Mode Setting, Alarm Setting, Input & Output, Battery Setting

HID Compliant USB Port(s)

1

Dry Contact (with Relay)

Yes

Emergency Power Off (EPO) Port

Yes

Audible Alarms

Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable(s)

Power Cord x2, USB Cable x1

Power Management Software

PowerPanel Business (Recommended)

SNMP/HTTP Remote Monitoring

Yes – with optional RMCARD205

Physical

Enclosure Construction

Metal

Color

Black

Rackmount Rail

Yes

Rackmount Ears

Yes

Dimensions (WxHxD) (in)

17.24 x 3.46 x 16.93

Dimensions (WxHxD) (mm)

438 x 88 x 430

Weight (lbs)

42.3

Weight (kg)

19.2

Installed Rack Height (U)

2

Shipping Dimensions

Shipping (WxHxD) (in)

21.3 x 9 x 21.7

Shipping (WxHxD) (mm)
