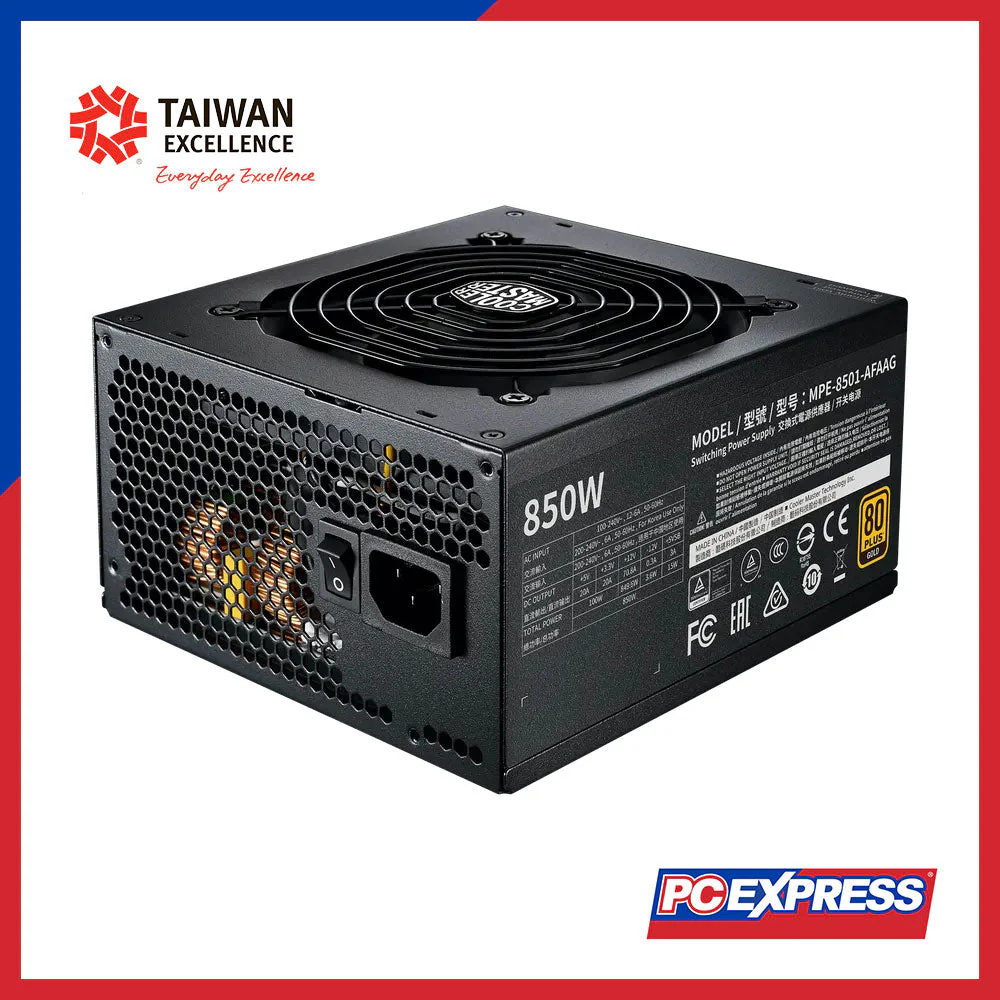

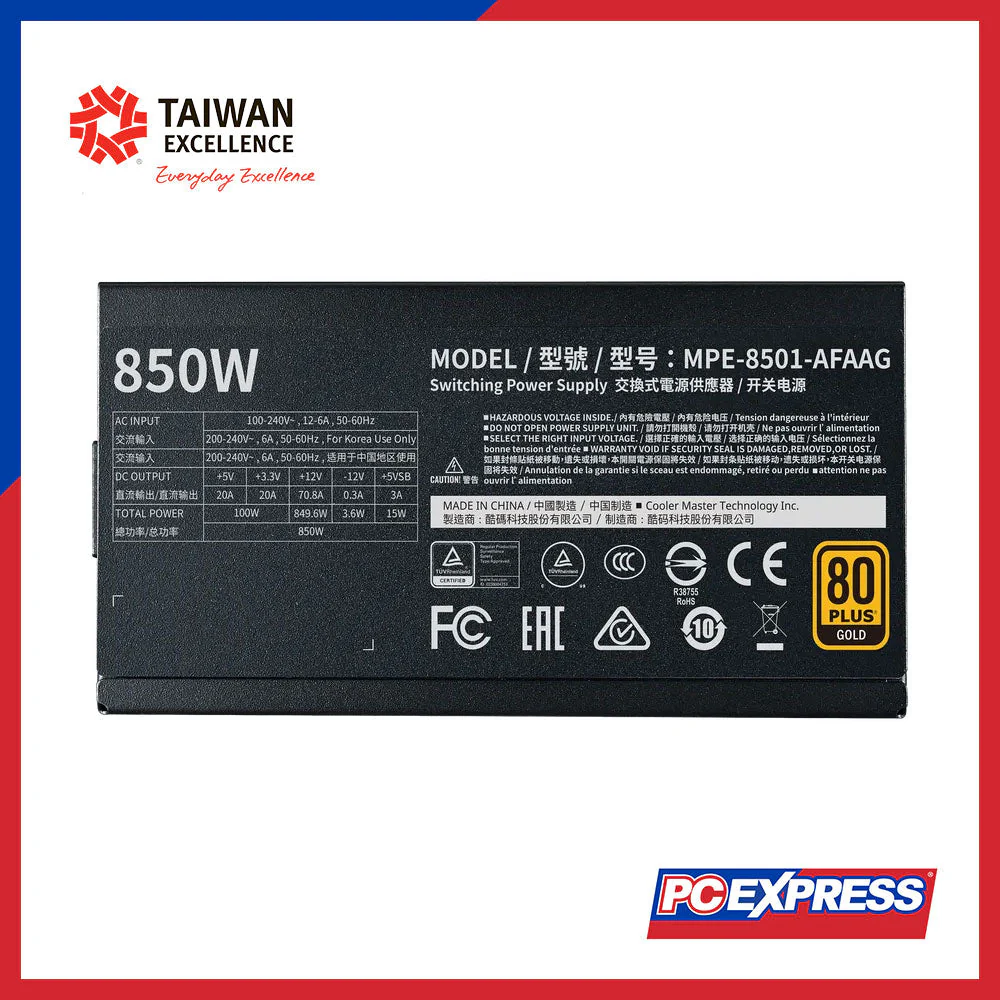

COOLER MASTER MWE V2 850W 80+ GOLD ATX 3.1 Fully Modular Power Supply

Model

MPE-8501-AFAAG-3EU2

ATX Version

ATX 12V Ver. 3.0

PFC

Active PFC

Input Voltage

100-240V

Input Current

12-6A

Input Frequency

50-60Hz

Dimensions (L x W x H)

160 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

HDB

Efficiency

≥90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-50°C

Power Good Signal

100 - 150 ms

Hold Up Time

≥16 ms

MTBF

>100,000 Hours

Protections

UVP, OVP, OPP, OTP, SCP, OCP

Regulatory

TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

Connectors

ATX 24 Pin

1

EPS 4+4 Pin

1

EPS 8 Pin

1

SATA

12

Peripheral 4 Pin

4

PCI-e 6+2 Pin

4

12VHPWR

1 (1 to 3)

Category

Above 750W

Series

MWE Gold Series

Modular

Fully Modular

Form Factor

ATX

80 Plus Efficiency

Gold

Watts

850W
