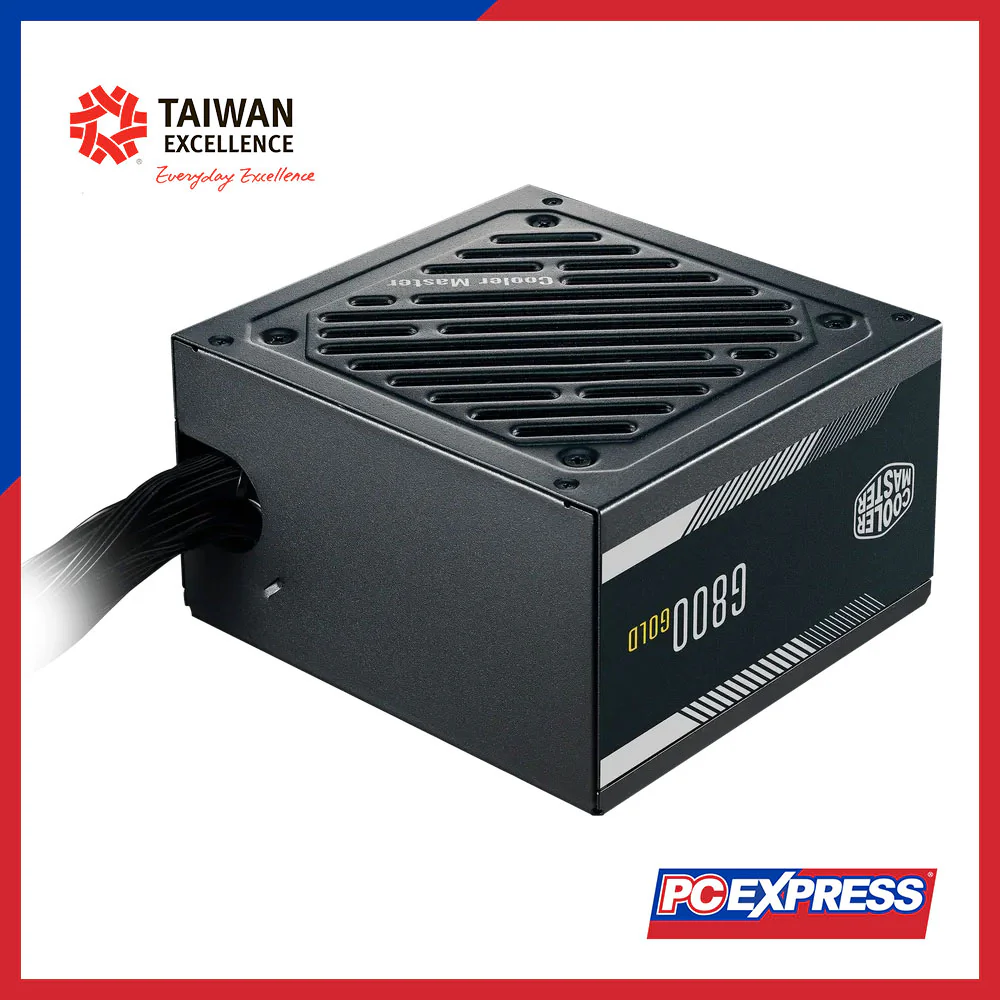

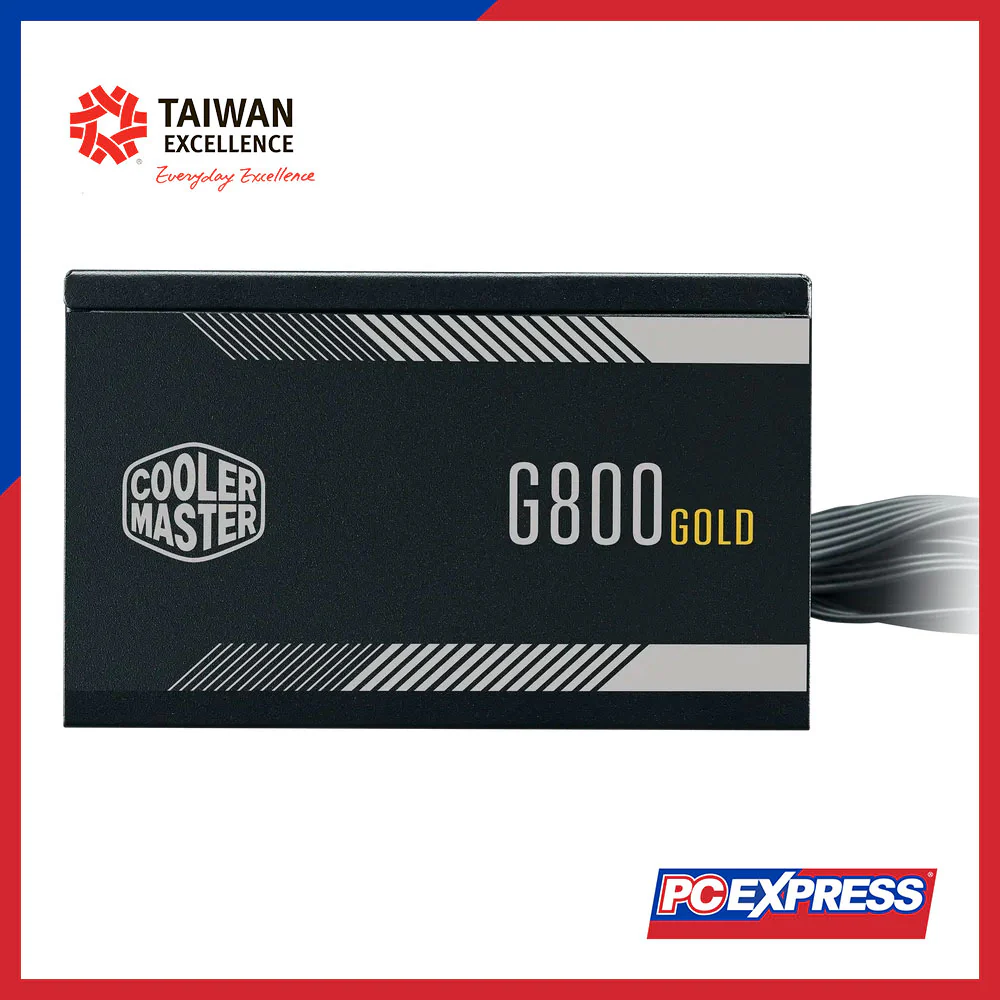

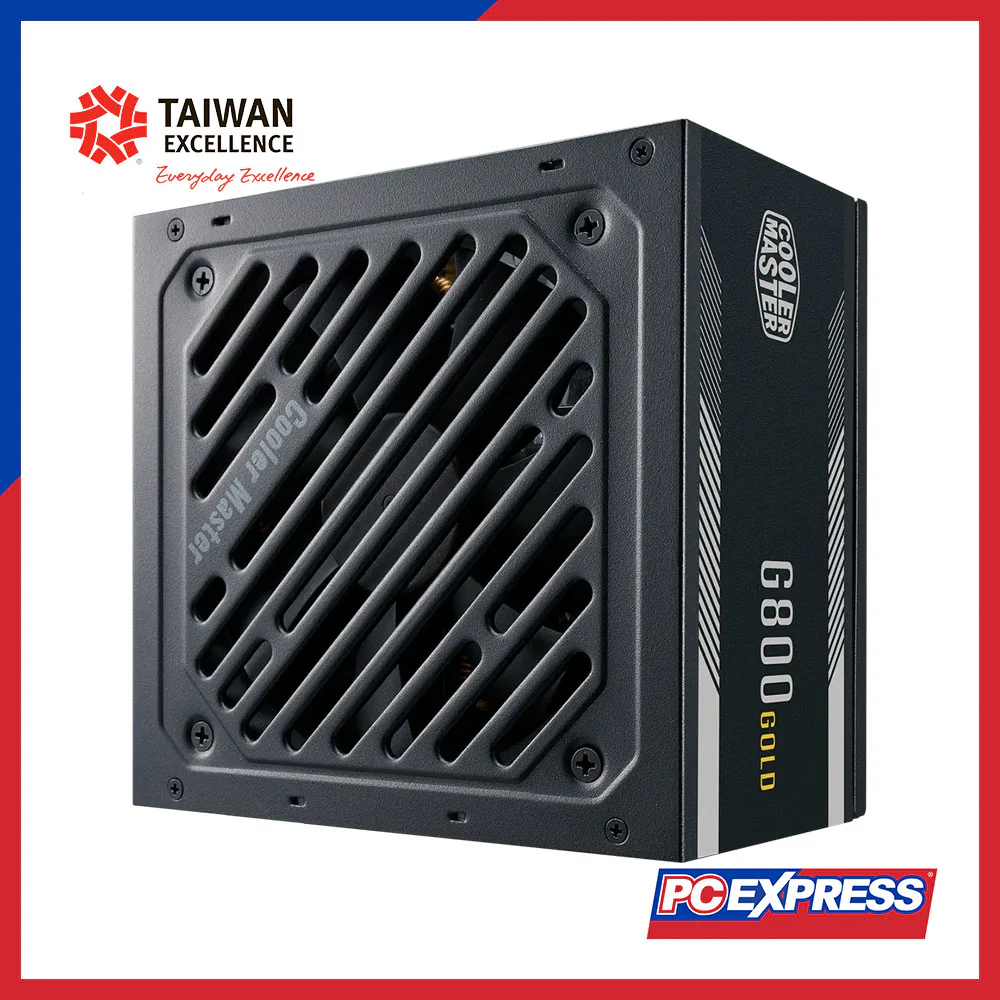

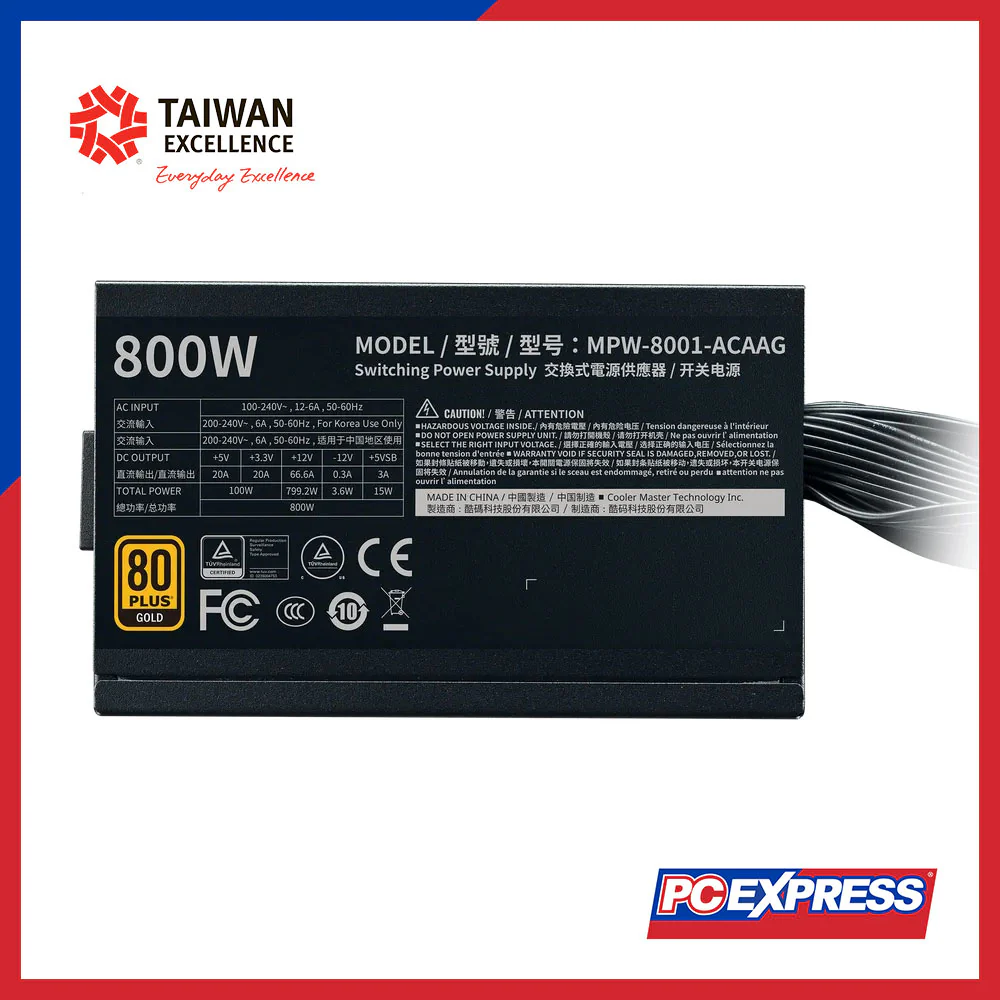

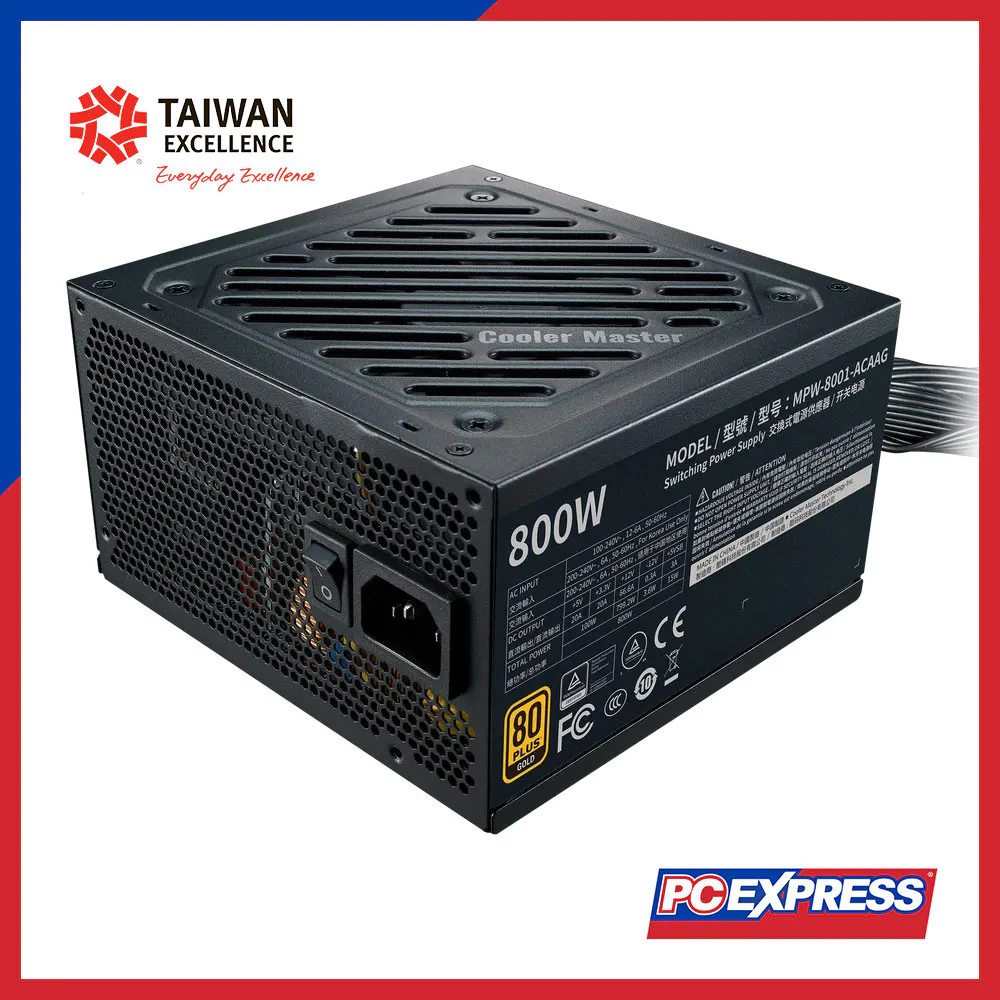

COOLER MASTER G800 800W 80+ Gold Non-Modular Power Supply

Category

Above 750W

PFC

Active PFC

ErP 2014 Lot 3

Yes

Operating Temperature

0-40°C

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

1

EPS 8 Pin Connector

1

Power Good Signal

100 - 150 ms

80 PLUS Rating

80 PLUS Gold

Fan Size

120mm

MTBF

>100,000 Hours

Input Frequency

47-63Hz

80 Plus Efficiency

Gold

Modular

Non Modular

Fan Bearing

HDB

Input Voltage

100-240V

PCI-e 6+2 Pin Connectors

4

SATA Connectors

6

Peripheral 4 Pin Connectors

3

Protections

OVP, OPP, SCP, UVP, OTP, OCP

ATX Version

ATX 12V V2.52

Dimensions (L x W x H)

140 x 150 x 86 mm

Series

G Series

Regulatory

CCC, CE, EAC, cTUVus, FCC, BSMI, CB, TUV, RoHS2.0, KC+KCC, BIS

Input Current

12-6A

Efficiency

≥90% @ Typical Load

Hold Up Time

≥15ms at 100% load

Model

MPW-8001-ACAAG
