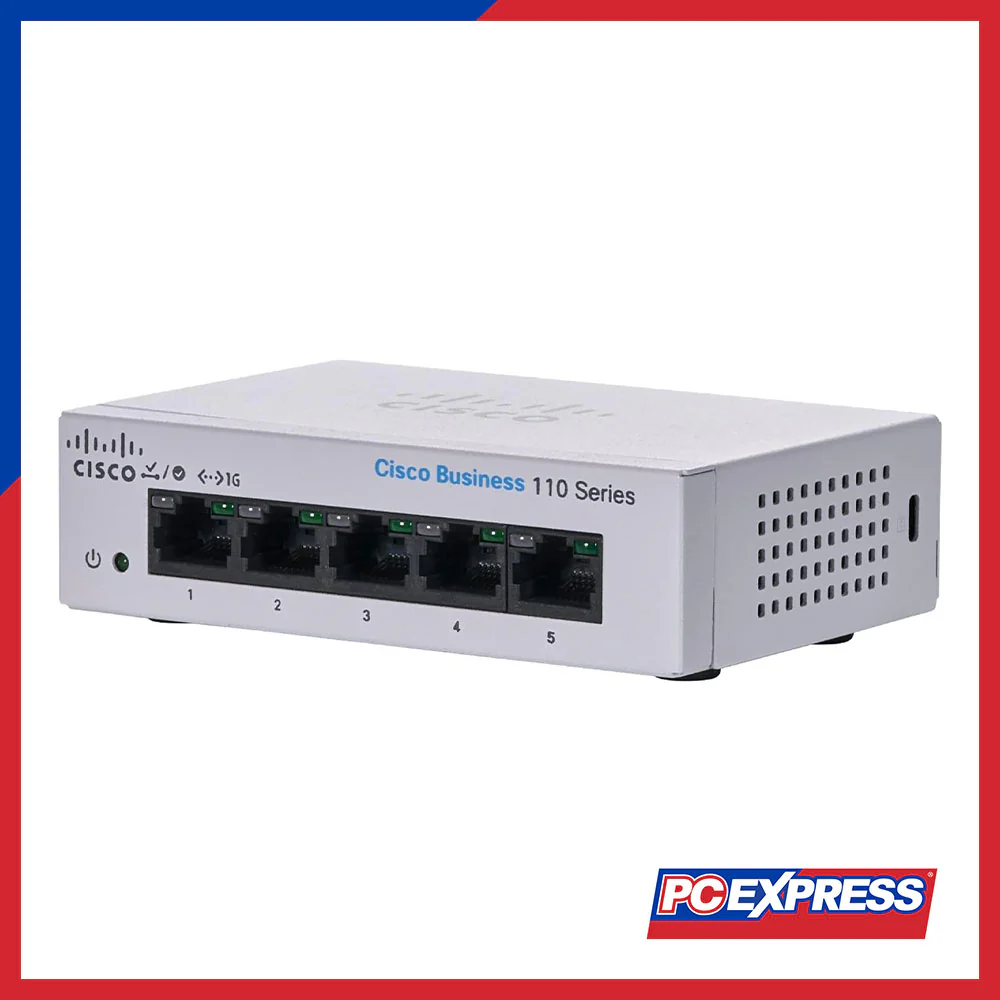

CISCO Business 110 Series (CBS110-5T-D) 5-port Unmanaged Switch
|
Specifications |
Description |
|||
|
Performance |
||||
|
Switching capacity and forwarding rate All switches are wire- speed and nonblocking |
Model |
Capacity in millions of packets per second (mpps) (64-byte packets) |
Switching capacity in gigabits per second (Gbps) |
|
|
CBS110-5T-D |
7.4 mpps |
10 Gbps |
||
|
CBS110-8T-D |
11.9 mpps |
16 Gbps |
||
|
CBS110-8PP-D |
11.9 mpps |
16 Gbps |
||
|
CBS110-16T |
23.8 mpps |
32 Gbps |
||
|
CBS110-16PP |
23.8 mpps |
32 Gbps |
||
|
CBS110-24T |
35.7 mpps |
48 Gbps |
||
|
CBS110-24PP |
35.7 mpps |
48 Gbps |
||
|
General |
||||
|
Head-of-Line (HOL) blocking |
HOL blocking prevention |
|||
|
MAC table |
2K addresses for CBS110-5T-D 8K addresses for all other models |
|||
|
Jumbo frame |
9216 bytes |
|||
|
Quality of Service (QoS) |
802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
|||
|
Loop detection |
Helps discover loops in the network to avoid broadcast storms |
|||
|
Cable diagnostics |
Quickly identify and troubleshoot network cable faults and/or shorts |
|||
|
Media-dependent interface |
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
|||
|
Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
|||
|
Hardware |
||||
|
Ports |
Model name |
Total system ports |
RJ-45 ports |
Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) |
|
CBS110-5T-D |
5 Gigabit Ethernet |
5 Gigabit Ethernet |
– |
|
|
CBS110-8T-D |
8 Gigabit Ethernet |
8 Gigabit Ethernet |
– |
|
|
CBS110-8PP-D |
8 Gigabit Ethernet |
8 Gigabit Ethernet |
– |
|
|
CBS110-16T |
16 Gigabit Ethernet |
16 Gigabit Ethernet |
– |
|
|
CBS110-16PP |
16 Gigabit Ethernet |
16 Gigabit Ethernet |
– |
|
|
CBS110-24T |
||||
