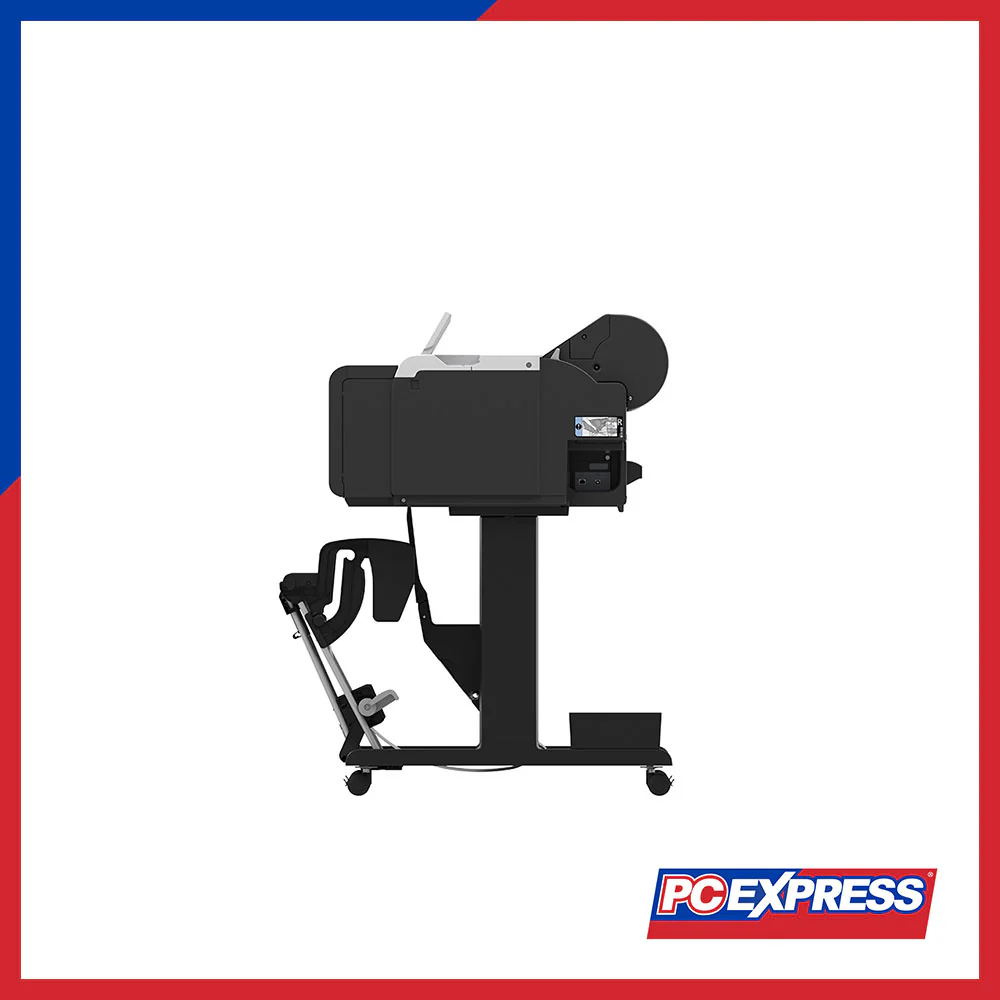

CANON imagePROGRAF TM-5350 Large Format Printer

Printer Type

5-Colour 36" (914 mm)

Number of Nozzles

15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)

Maximum Print Resolution

2,400 x 1,200 dpi

Nozzle Pitch

1,200 dpi (2 lines)

Line Accuracy*1

± 0.1% or less

Ink Capacity

Sales Ink: 130 ml / 300 ml (MBK/BK/C/M/Y)

Ink Type

Pigment Ink

Printer Language

SG Raster (Swift Graphic Raster); HP-GL/2; HP RTL; JPEG (Ver. JFIF1.02); CALS G4*2

Printing Solutions

Printer Driver (Win/Mac), Direct Print Plus, Free Layout Plus, PosterArtist (Windows/Web & Lite), Wi-Fi Connection Assistant, PIXMA Cloud Link, Canon PRINT Inkjet/SELPHY (Mobile), Canon Print System (Mobile), uniFLOW server

Management Solutions

Media Configuration Tool (includes Colour Customization Tool), Accounting Manager, Device Management Console, Quick Utility Toolbox

Standard Interfaces (Built-in)

USB B Port (Hi-Speed USB / Full Speed / High Speed 480 Mbit/s / Bulk Transfer); Network (IEEE 802.3 10base-T, 100base-TX, 1000base-T; SNMP, HTTP, TCP/IP IPv4/IPv6, FTP); Wireless LAN (IEEE 802.11 b/g/n; WPA-PSK/WPA2-PSK/WPA3-SAE/WPA-EAP/WPA2-EAP/WPA3-EAP AES*3)

Standard Memory

2 GB

Hard Disk

-

Display

LCD (4.3 inch / 10.9 cm TFT colour)

Print Speed (CAD Drawing)

17 sec (A1 Landscape, Fast Q5 mode); 32 sec (A0 Portrait, Fast Q5 mode); 2 min 33 sec (A0 Portrait, Standard mode)

Media Handling – Roll Paper

One Roll, Top Load, Front Output

Media Handling – Cut Sheet

Top Load, Front Output

Media Width (Roll/Cut Sheet)

Roll: 203.2 ~ 917 mm; Cut Sheet: 203.2 ~ 917 mm

Media Thickness (Roll/Cut Sheet)

0.07 ~ 0.8 mm

Media Core Size

2 inch / 3 inch core

Min. Printable Length – Roll

203.2 mm

Min. Printable Length – Cut Sheet

279.4 mm

Max. Printable Length – Roll

18 m*5

Max. Printable Length – Cut Sheet

1,600 mm

Maximum Outer Roll Diameter

150 mm or less

Borderless Printing

Supported for roll paper

Margins (Recommended Area)

Roll: Top 20 mm, Bottom 3 mm, Sides 3 mm; Cut Sheet: Top 20 mm, Bottom 20 mm, Sides 3 mm

Margins (Printable Area)

Roll: Top 3 mm, Bottom 3 mm, Sides 3 mm; Cut Sheet: Top 3 mm, Bottom 20 mm, Sides 3 mm

Main Unit Dimensions

1,285 x 748 x 439 mm (operation panel not tilt up)

Main Unit + Stand + Basket

1,285 x 885 x 1,060 mm (basket open); 1,285 x 756 x 1,060 mm (basket closed) (SD-26)

Main Unit Weight

50 kg

Main Unit + Stand + Basket Weight

65 kg (SD-26)

Packaged Dimensions (Printer + Pallet)

1,462 x 1,122 x 801 mm

Packaged Weight

-

Power Supply

AC 100 - 240 V, 50 - 60 Hz

Printing Power Consumption

65 W or less

Sleep Mode Power

1.6 W or less

Power Off

0.1 W or less

Operating Temperature

15 – 30 °C

Operating Humidity

10 – 80% RH (no dew condensation)

Acoustic Power

Approx. 6.2 Bels

Acoustic Pressure

Operation: approx. 41 dB(A); Standby: 35 dB(A) or less

Accessories – Printer Stand

-

Accessories – Roll Holder

RH2-35

Accessories – Card Reader

RA-02 (uniFLOW)

Accessories – Cutter Blade

CT-08

Ink Tank

Magenta: PFI-8121 (130 ml) / PFI-8321 (300 ml); MBK/BK/C/M/Y: PFI-8120 (130 ml) / PFI-8320 (300 ml)

Print Head

PF-06

Maintenance Cartridge

MC-31

Scanner Technology

-

Optical Resolution

-

Scan Width

-

Minimum Scan Width

-

Maximum Scan Length

-

Document Thickness

-

Max Copy Speed

-

Scan Speed (Draft 200 dpi)

-

Scan Speed (Standard 300 dpi)

-

Scan Speed (Best 600 dpi)

-

PC & Software Included

-

Functions

-
