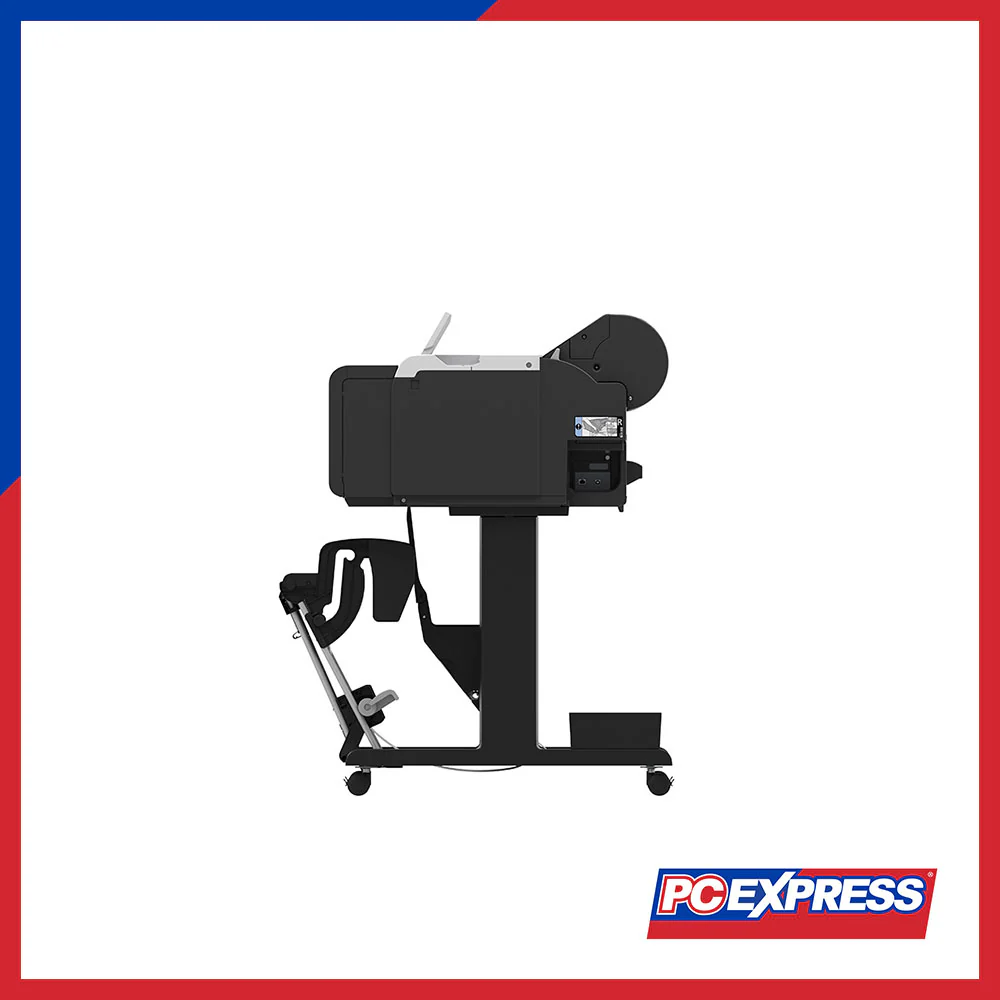

CANON imagePROGRAF TM-5250 Large Format Printer

Printer Type

5-Colour 24" (610 mm)

Number of Nozzles

15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)

Maximum Print Resolution

2,400 x 1,200 dpi

Nozzle Pitch

1,200 dpi (2 lines)

Line Accuracy*1

± 0.1% or less

Ink Capacity

Sales Ink: 130 ml/300 ml (MBK/BK/C/M/Y)

Ink Type

Pigment Ink

Printer Language

SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF1.02), CALS G4*2

Printing Solutions

Printer Driver (Win/Mac versions), Direct Print Plus, Free Layout plus, PosterArtist Windows/Web & Lite, Wi-Fi Connection Assistant, PIXMA Cloud Link, Canon PRINT Inkjet/SELPHY (Mobile), Canon Print System (Mobile), uniFlow server

Management Solutions

Media Configuration Tool (includes Colour Customization Tool), Accounting Manager, Device Management Console, Quick Utility Toolbox

Standard Interfaces (Built-in)

USB B Port: (Series B, 4 pins), Hi-Speed USB, Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk Transfer; Network: IEEE 802.3 10base-T, IEEE 802.3u 100base-TX, IEEE 802.3ab 1000base-T, SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP; Wireless LAN: IEEE802.11 b/g/n, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES)*3, WPA2-EAP (AES)*3, WPA3-EAP (AES)*3

Standard Memory

2 GB

Hard Disk

Display

LCD (4.3 inch/10.9 cm TFT colour)

Print speed

CAD Drawing

20sec (A1 Landscape, Fast Q5 mode), 1 min 23 sec (A1 Portrait, Standard mode)

Media Handling

Roll Paper

One Roll, Top Load, Front Output

Cut Sheet

Top Load, Front Output

Media Width (Roll/Cut Sheet)

Roll Width: 203.2 ~ 610 mm; Cut Sheet Width: 203.2 ~ 610 mm

Media Thickness (Roll/Cut Sheet)

0.07 ~ 0.8 mm

Media Core Size

2 inch/3 inch core

Min. Printable Length

Roll Paper

203.2 mm

Cut Sheet

279.4 mm

Max. Printable Length

Roll Paper

18 m*5

Cut Sheet

1,600 mm

Maximum Outer Roll Diameter

150 mm or less

Borderless Printing

Supported for roll paper

Margins (Recommended Area)

Roll Paper (Top, Bottom, Sides)

20 mm, 3 mm, 3 mm

Cut Sheet (Top, Bottom, Sides)

20 mm, 20 mm, 3 mm

Margins (Printable Area)

Roll Paper (Top, Bottom, Sides)

3 mm, 3 mm, 3 mm

Cut Sheet (Top, Bottom, Sides)

3 mm, 20 mm, 3 mm

Dimensions and Weight

Main Unit

978 x 748 x 439 mm (Operation panel is not tilt up)

Main Unit + Printer Stand + Basket

978 x 885 x 1,060 mm (Basket Opened), 982 x 756 x 1,060 mm (Basket Closed) (SD-26)

Weight *6

Main Unit

42 kg

Main Unit + Printer Stand + Basket

55 kg (SD-26)

Packaged Dimensions (W x D x H)

Printer (Main unit + Pallet)

1,152 x 913 x 679 mm

Stand + Basket (SD-26)

1,058 x 826 x 270 mm (SD-26)

Printer (Main unit with stand and pallet) (SD-26)

1,152 x 913 x 946 mm

Packaged Weight *6

Printer (Main unit + Pallet)

73 kg

Stand + Basket (SD-26)

22 kg

Printer (Main unit with stand and pallet) (SD-26)

96 kg

Power & Operating Requirements

Power Supply

AC 100 - 240 V, 50 - 60 Hz

Printing*7

65 W or less

Sleep Mode*7

1.6 W or less

Power Off

0.1 W or less

Operating Environment

Temperature

15 ～ 30 °C

Humidity

10 ～ 80 % RH (no dew condensation)

Acoustic Power*8

Operation: Approx. 6.2 Bels

Acoustic Pressure*8

Operation: Approx. 41 dB (A), Standby: 35 dB (A) or less

Accessories

Printer Stand (Optional)

SD-26

2/3" Roll Holder

RH2-28

Card Reader Interface for uniFLOW

RA-02

Cutter Blade

CT-08

Consumables

Ink Tank

Magenta: PFI-8121 (130 ml)/PFI-8321 (300 ml), Matt Black/Black/Cyan/Yellow: PFI-8120 (130 ml)/PFI-8320 (300 ml)

Print Head

PF-06

Maintenance Cartridge

MC-31

Scanner

Scan Technology

Optical Resolution

Scan Width

Minimum Scan Width

Maximum Scan Length

Document Thickness

Max. Copy Speed

Draft (300/300 dpi)

Standard (300/600 dpi)

Best (600/600 dpi)

Max. Scan Speed

Draft (200 dpi)

Standard (300 dpi)

Best (600 dpi)

PC & Software Included

Functions
