CANON imagePROGRAF TC-21M Large Format Printer

Printer Type

4-Colour 24" (610 mm)

Number of Nozzles

4,352 nozzles (BK 1,280 nozzles, C,M,Y: 1,024 nozzles each)

Maximum Print Resolution

2,400 x 1,200 dpi

Nozzle Pitch

1,200 dpi (2 lines)

Line Accuracy*1

± 0.1% or less

Ink Capacity

Sales Ink: 70 ml (BK, C, M, Y)
Bundled Starter Ink: 70 ml (BK, C, M, Y)

Ink Type

Pigment Ink

Printer Language

SG Raster (Swift Graphic Raster)

PDF
USB Memory [Direct Print]
PDF files created using the ScanToPDF function of the application
PDF files created with MPNavigator, My Image Garden, or IJ Scan Utility

JPEG*2
Supported Exif ver2.2/2.21/2.3

Printing Solutions

Canon PRINT Inkjet/SELPHY (iOS/Android), Canon Print Service (Android), Free Layout Plus, PosterArtist, Direct Print Plus, PIXUS/PIXMA Cloud Link, ChromeOS

Management Solutions

Media Configuration Tool, Quick Utility Toolbox, Wi-Fi Connection Assistant, Printer Update Utility

Standard Interfaces (Built-in)

USB A Port
USB Memory (Direct Print)
PDF*3 / JPEG (Exif ver2.2/2.21/2.3)

USB B Port (Series B, 4 pins)
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer

IEEE 802.3 10base-T
IEEE 802.3u 100base-TX
SNMP, HTTP, TCP/IP (IPv4/IPv6)

Wireless LAN:
IEE802.11a/b/g/n/ac
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
WPA3-SAE (AES)
WPA-EAP (AES)*4
WPA2-EAP (AES)*4
WPA3-EAP (AES)*4

Standard Memory

1 GB

Hard Disk

Display

Print speed

CAD Drawing

30 sec (Draft) (Monochrome)
(Plain Paper)

Media Handling

Roll Paper

One Roll, Top Load, Front Output

Cut Sheet

Top Load, Front Output*7

Media Width (Roll/Cut Sheet)

Roll Width: 297 ~ 610 mm (A3 width to 24")
Cut Sheet Width: 89 ~ 297 mm (A3, A4, Letter, A5, A6)

Media Thickness (Roll/Cut Sheet)

0.08 ～ 0.28 mm

Media Core Size

2 inch core

Min. Printable Length

Roll Paper

203.2 mm

Cut Sheet

127 mm

Max. Printable Length

Roll Paper

4 m*8

Cut Sheet

1,200 mm

Maximum Outer Roll Diameter

110 mm or less

Borderless Printing

NA

Margins (Recommended Area)

Roll Paper (Top, Bottom, Sides)

Top/Bottom: 5 mm, Left/Right: 5 mm*9

Cut Sheet (Top, Bottom, Sides)

Top/Bottom: 5 mm, Left/Right: 5 mm

Margins (Printable Area)

Roll Paper (Top, Bottom, Sides)

Top/Bottom: 5 mm, Left/Right: 5 mm*9

Cut Sheet (Top, Bottom, Sides)

Top/Bottom: 5 mm, Left/Right: 5 mm

Dimensions and Weight

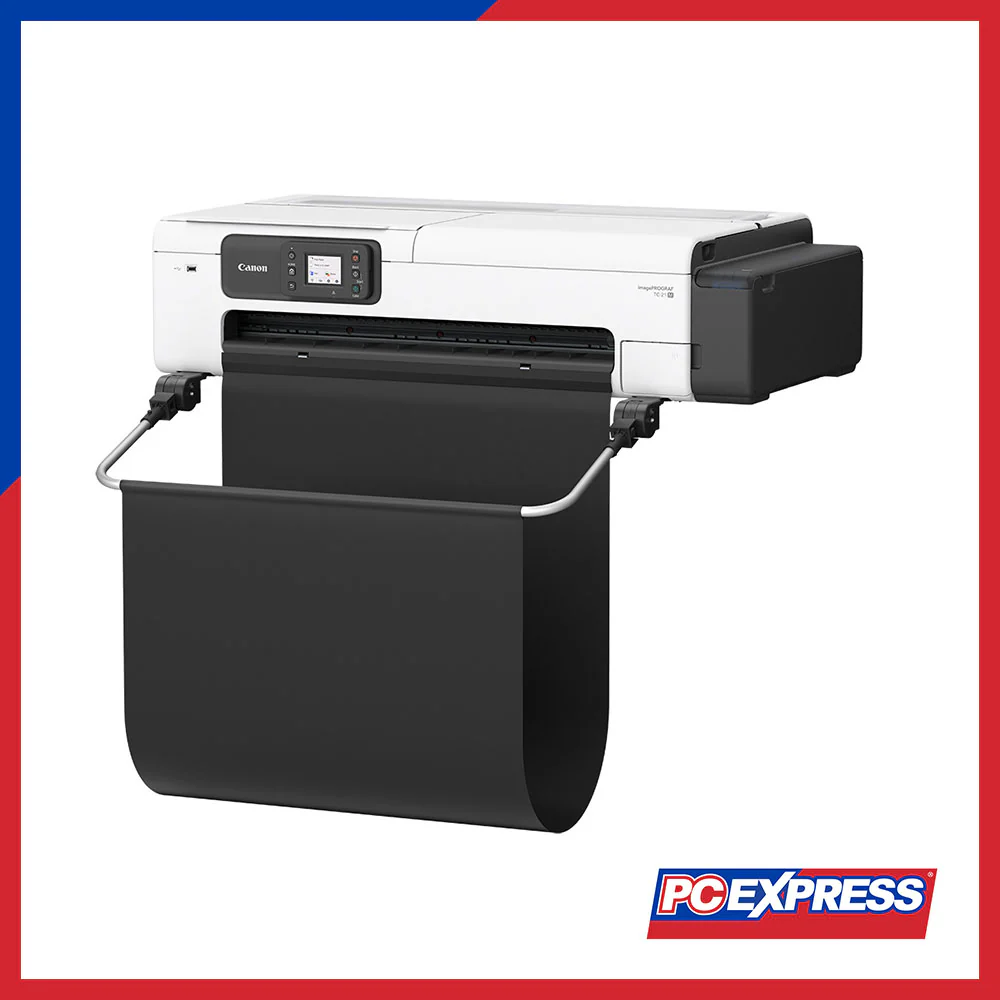

Main Unit

968 × 613 × 395 mm (ASF11 Opened, OP12 Opened)
968 × 553 × 395 mm (ASF11 Opened, OP12 Closed)
968 × 593 × 245 mm (ASF11 Closed, OP12 Opened)
968 × 533 × 245 mm (ASF11 Closed, OP12 Closed)

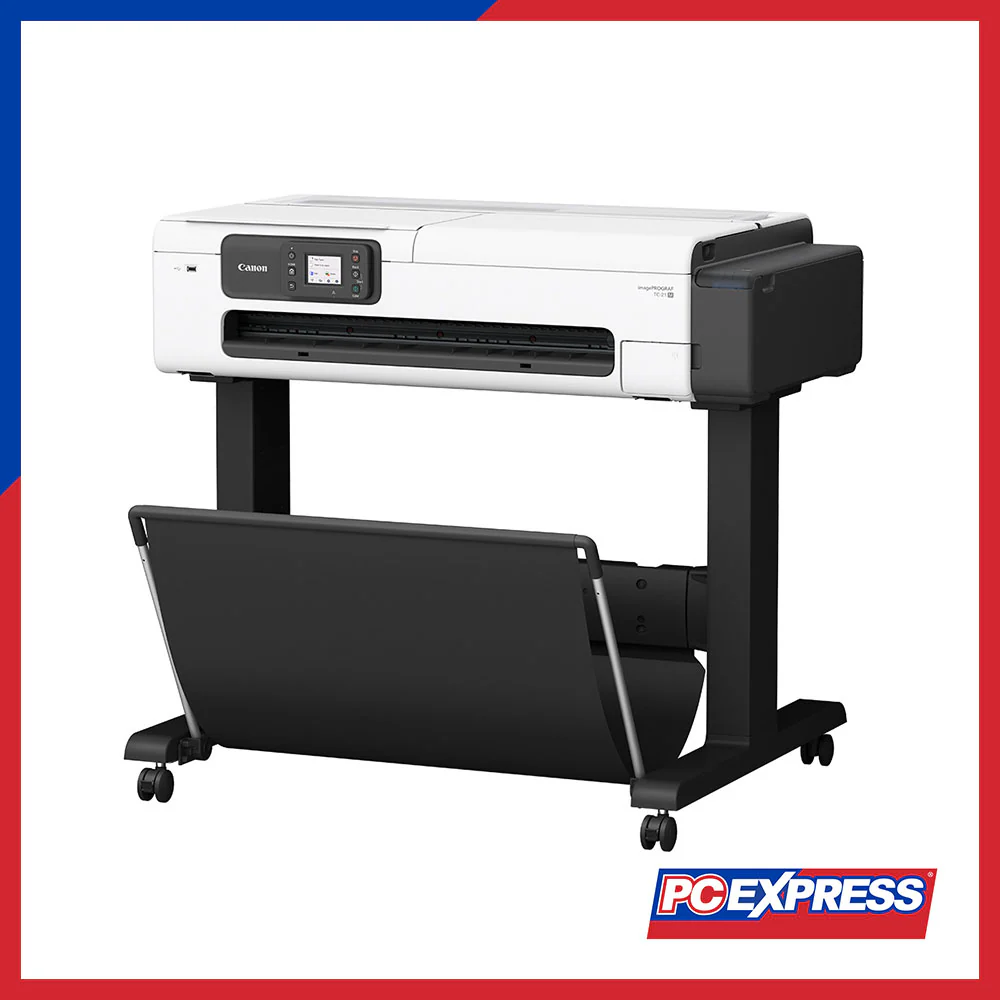

Main Unit + Printer Stand + Basket

968 × 868 × 1,024 mm (ASF11, OP12 & Basket Opened)
968 × 720 × 874 mm (ASF11, OP12 & Basket Closed)
(SD-24)

Weight *6

Main Unit

34 kg

Main Unit + Printer Stand + Basket

44 kg (SD-24)

Packaged Dimensions (W x D x H)

Printer (Main unit + Pallet)

Stand + Basket (SD-26)

Printer (Main unit with stand and pallet) (SD-26)

Packaged Weight *6

Printer (Main unit + Pallet)

Stand + Basket (SD-26)

Printer (Main unit with stand and pallet) (SD-26)

Power & Operating Requirements

Power Supply

AC 100 - 240 V, 50 - 60 Hz

Printing*7

Sleep Mode*7

Approx. 1.7 W

Power Off

Approx. 0.07 W

Operating Environment

Temperature

15 ～ 30 °C

Humidity

10 ～ 80 % RH (no dew condensation)

Acoustic Power*8

Operation: Approx. 6.0 Bels

Acoustic Pressure*8

Operation: Approx. 41.5 dB (A)
Standby: 35 dB (A) or less

Accessories

Printer Stand (Optional)

SD-24

2/3" Roll Holder

Card Reader Interface for uniFLOW

Cutter Blade

Consumables

Ink Tank

PFI-050 (70 ml)
Black / Cyan / Magenta / Yellow

Print Head

PF-08

Maintenance Cartridge

MC-32

Scanner

Scan Technology

Flatbed (CIS Scanner)

Optical Resolution

1,200 x 2,400 dpi

Scan Width

Minimum Scan Width

Maximum Scan Length

Document Thickness

Max. Copy Speed

Draft (300/300 dpi)

Standard (300/600 dpi)

Best (600/600 dpi)

Max. Scan Speed

Draft (200 dpi)

Standard (300 dpi)

Best (600 dpi)

PC & Software Included

Functions
