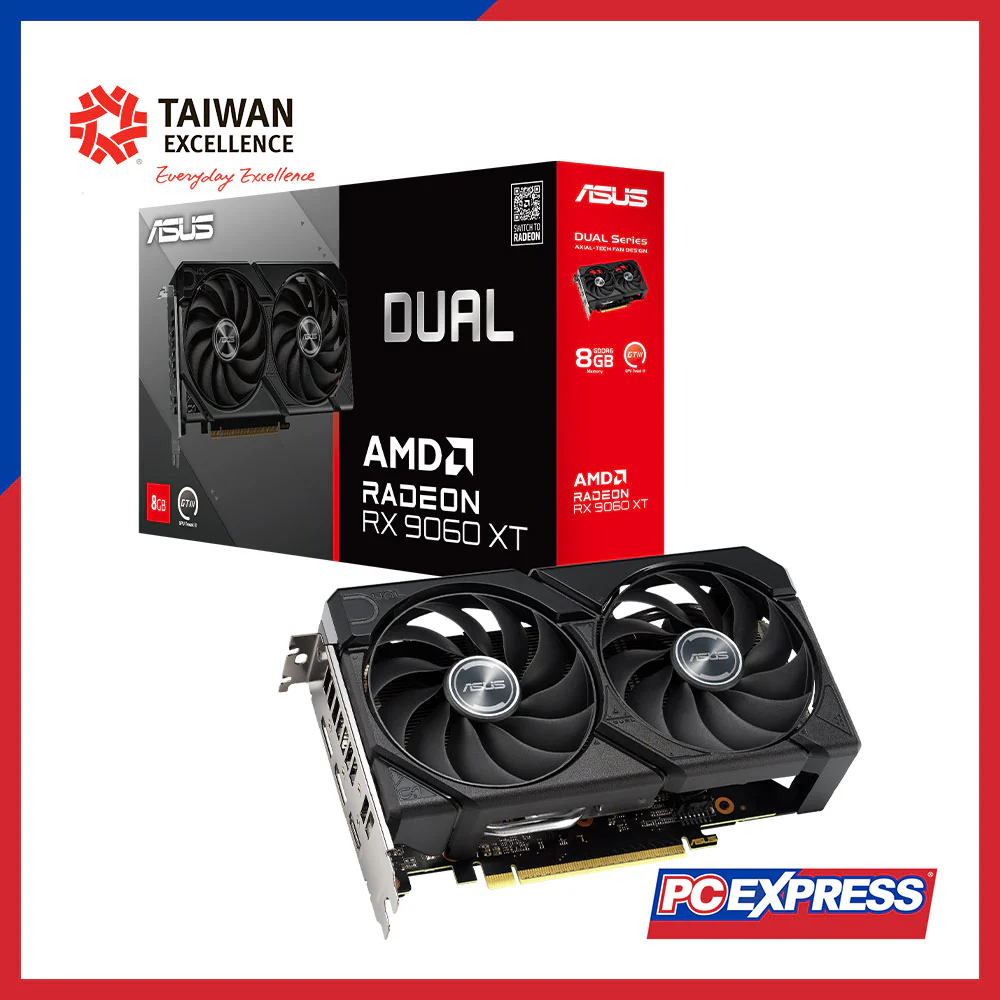

ASUS Dual Radeon™ RX9060XT 8G GDDR6 128-bit Graphics Card

Part Number

 DUAL-RX9060XT-8G

Graphic Engine

AMD Radeon™ RX 9060 XT

Bus Standard

PCI Express 5.0

OpenGL

OpenGL® 4.6

Video Memory

8GB GDDR6

Engine Clock (OC mode)

up to 3150 MHz (Boost) / up to 2550 MHz (Game) via GPU Tweak III

Engine Clock (Default mode)

up to 3130 MHz (Boost) / up to 2530 MHz (Game)

Stream Processors

2048

Memory Speed

20 Gbps

Memory Interface

128-bit

Digital Max Resolution

7680 × 4320

Display Outputs

• 1 × HDMI 2.1b (native)
• 2 × DisplayPort 2.1a (native)

HDCP Support

Yes (2.3)

Maximum Displays Supported

3

NVLink / Crossfire

No

Accessories

1 × Thank you card
1 × Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers (download from support site)

Dimensions (L × W × H)

202 mm × 120 mm × 49 mm

Recommended PSU

550 W

Power Connectors

1 × 8-pin

Slot Width

2.5 slots

Notes

• Wattage recommendation is for a fully overclocked GPU+CPU system; use “Choose By Wattage” PSU tool for tailored advice.
• Specs subject to change—check your supplier for the latest.
• “Game Clock” = typical gaming freq. at TGP; “Boost Clock” = max burst freq. varies by conditions.
