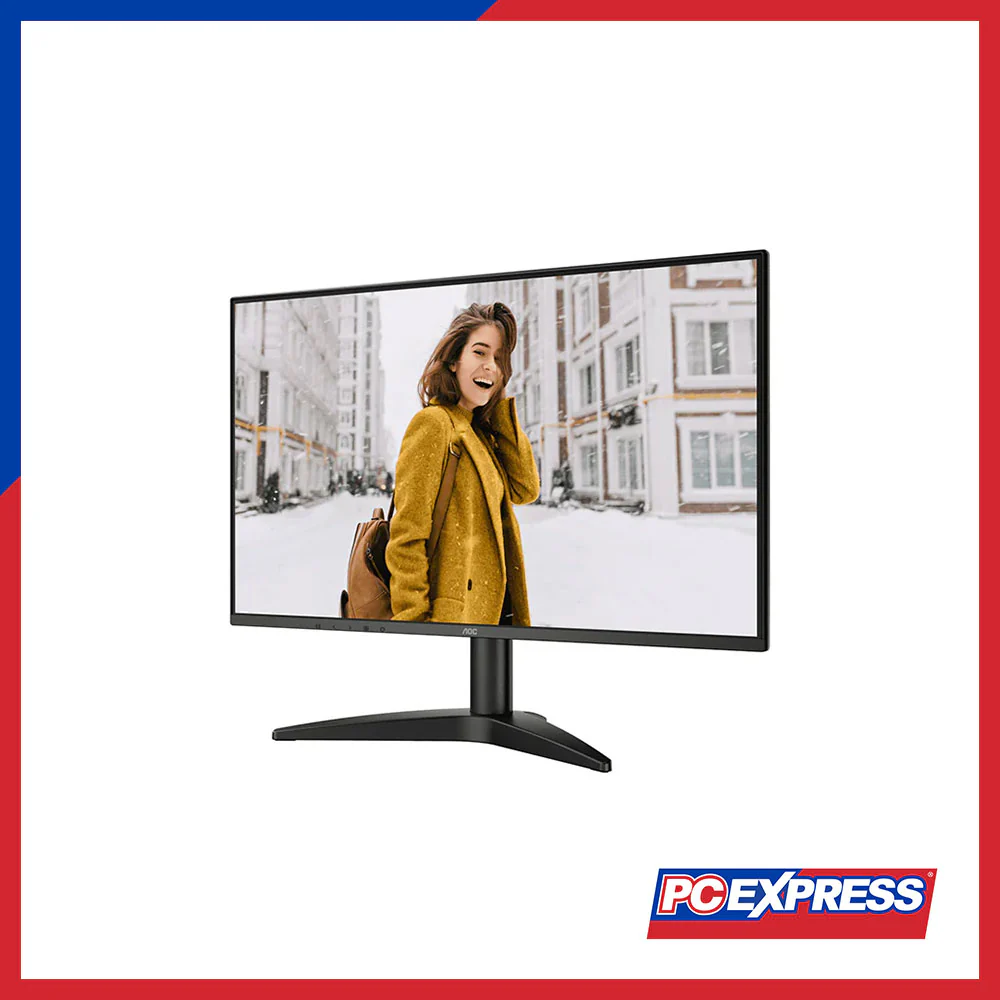

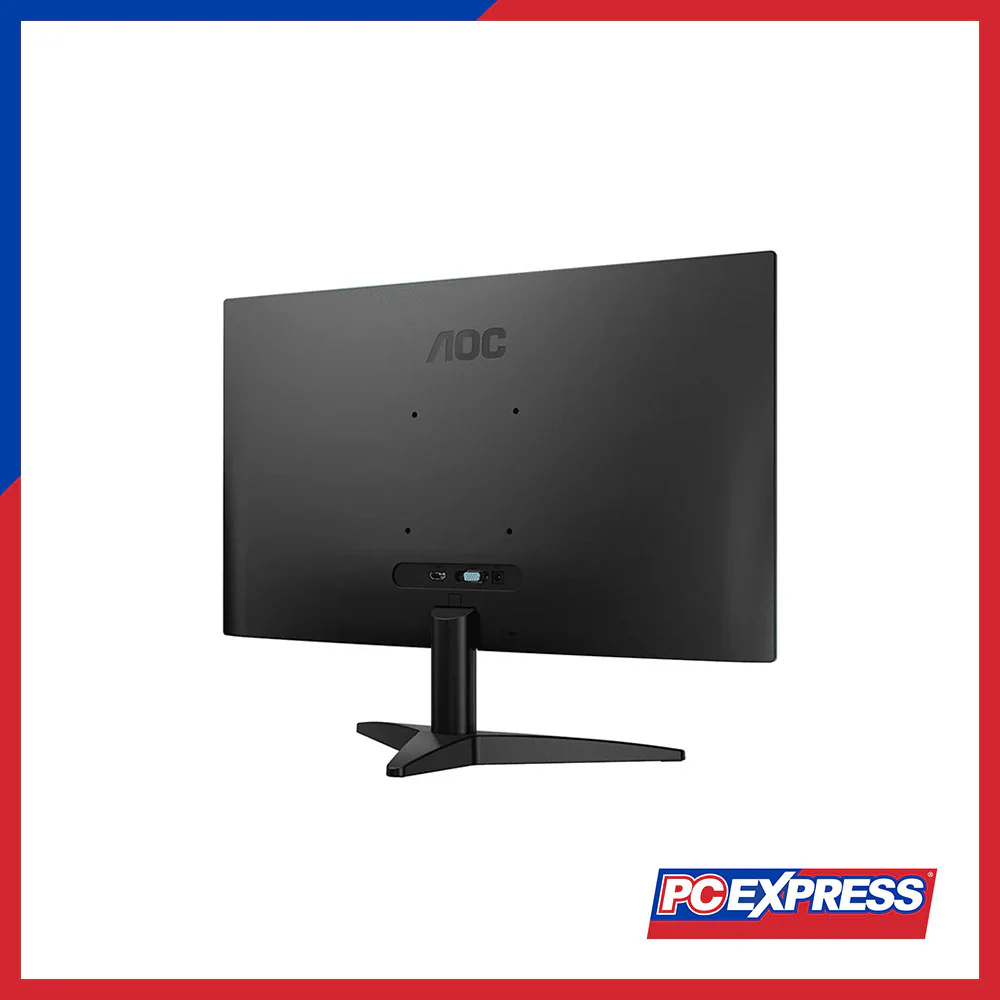

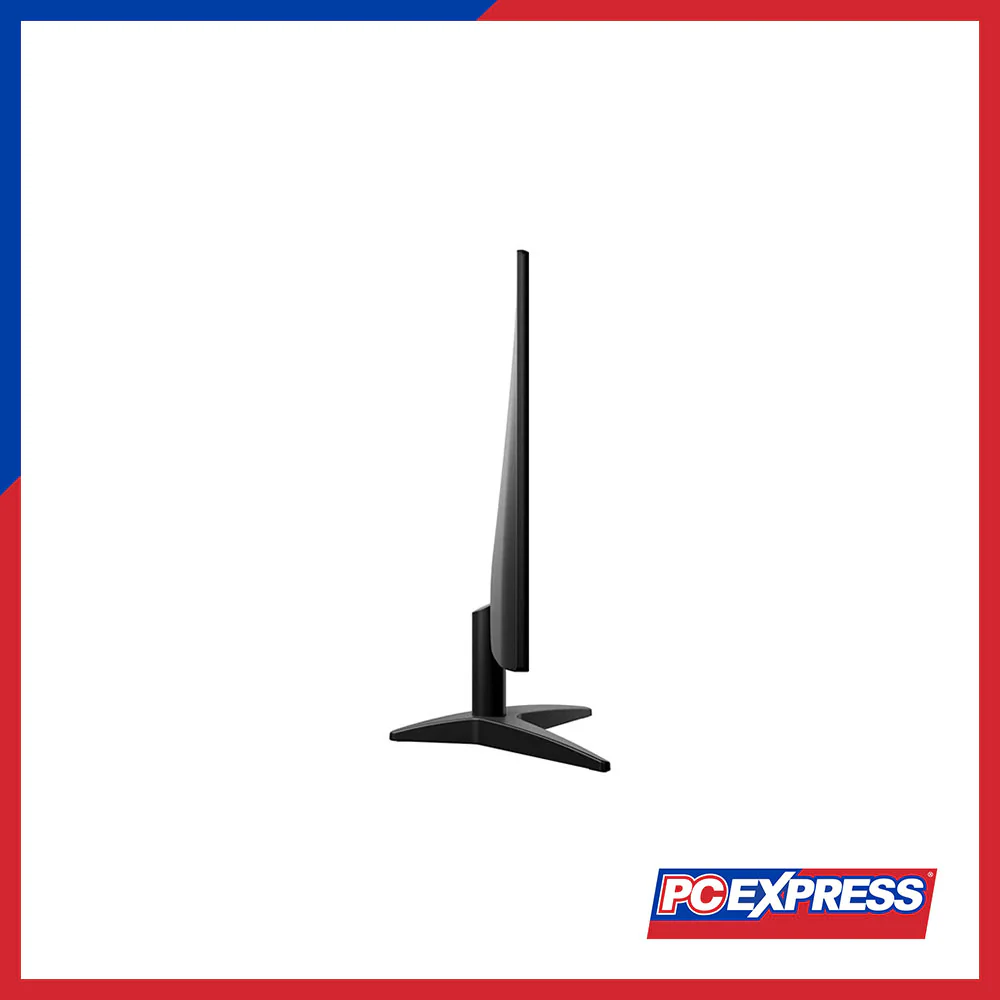

AOC 24B36H3/71 23.8" Full-HD IPS Monitor

Model Name

24B36H3

Panel

23.8" / IPS LCD

Pixel Pitch (mm)

0.2745 (H) × 0.2745 (V)

Effective Viewing Area (mm)

527.04 (H) × 296.46 (V)

Brightness (typical)

300 cd/m²

Contrast Ratio

1500:1 (typical) / MEGA DCR

Response Time

4 ms GtG / 1 ms MPRT

Viewing Angle

178° (H) / 178° (V) (CR > 10)

Color Gamut

NTSC 101% (CIE1976) / sRGB 116% (CIE1931)

Optimum Resolution

• 1920 × 1080 @ 120 Hz (HDMI)
• 1920 × 1080 @ 75 Hz (VGA)

Display Colors

16.7 Million

Signal Input

VGA × 1, HDMI 1.4 × 1

USB Hub

No

Power Supply

External 19 V DC, 1.31 A

Power Consumption (typical)

17 W

Speakers

No

Line In / Earphone

No

Wall-Mount

100 × 100 mm

Adjustable Stand

Tilt: –5° to 23°

Product without Stand (mm)

316.2 (H) × 542.4 (W) × 34.7 (D)

Product with Stand (mm)

410 (H) × 542.4 (W) × 198 (D)

Packaging (mm)

420 (H) × 615 (W) × 111 (D)

Product without Stand (kg)

2.15 kg

Product with Stand (kg)

2.45 kg

Product with Packaging (kg)

4.43 kg

Cabinet Color

Black

Regulatory Approvals

CE / FCC / RoHS
