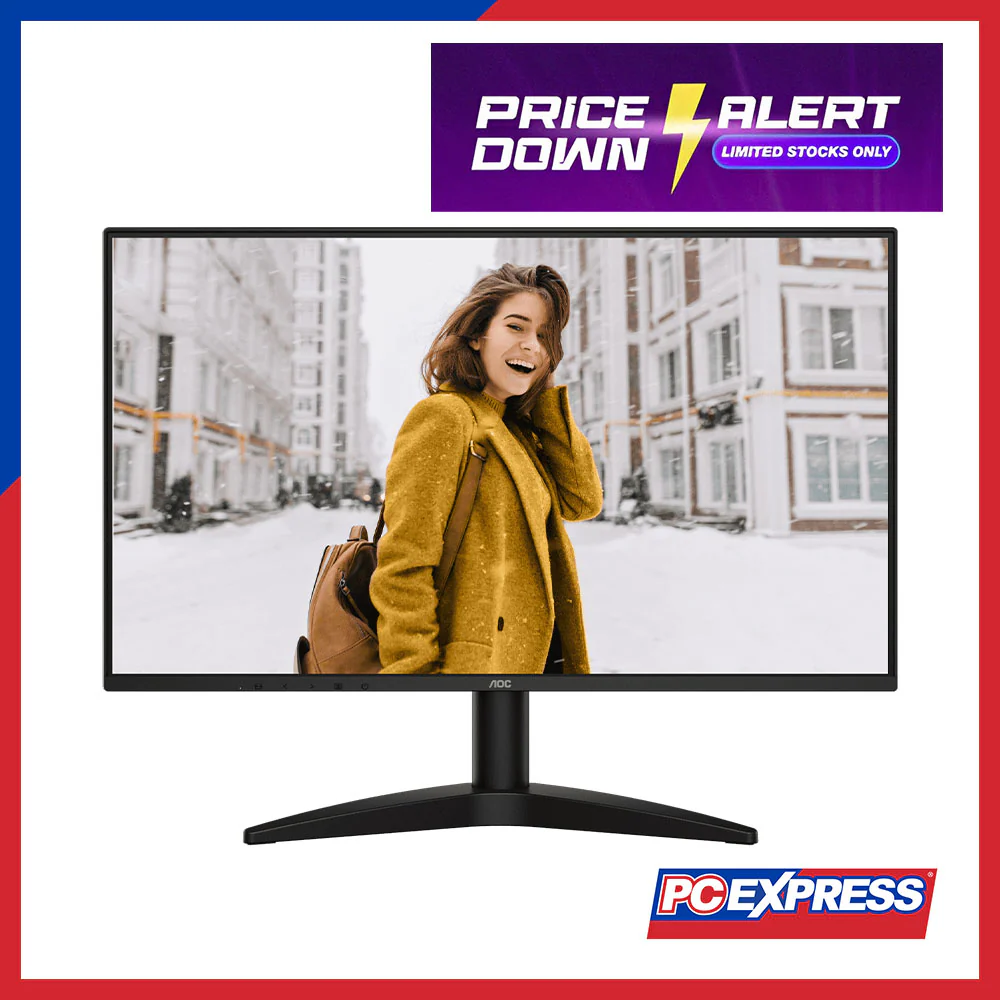

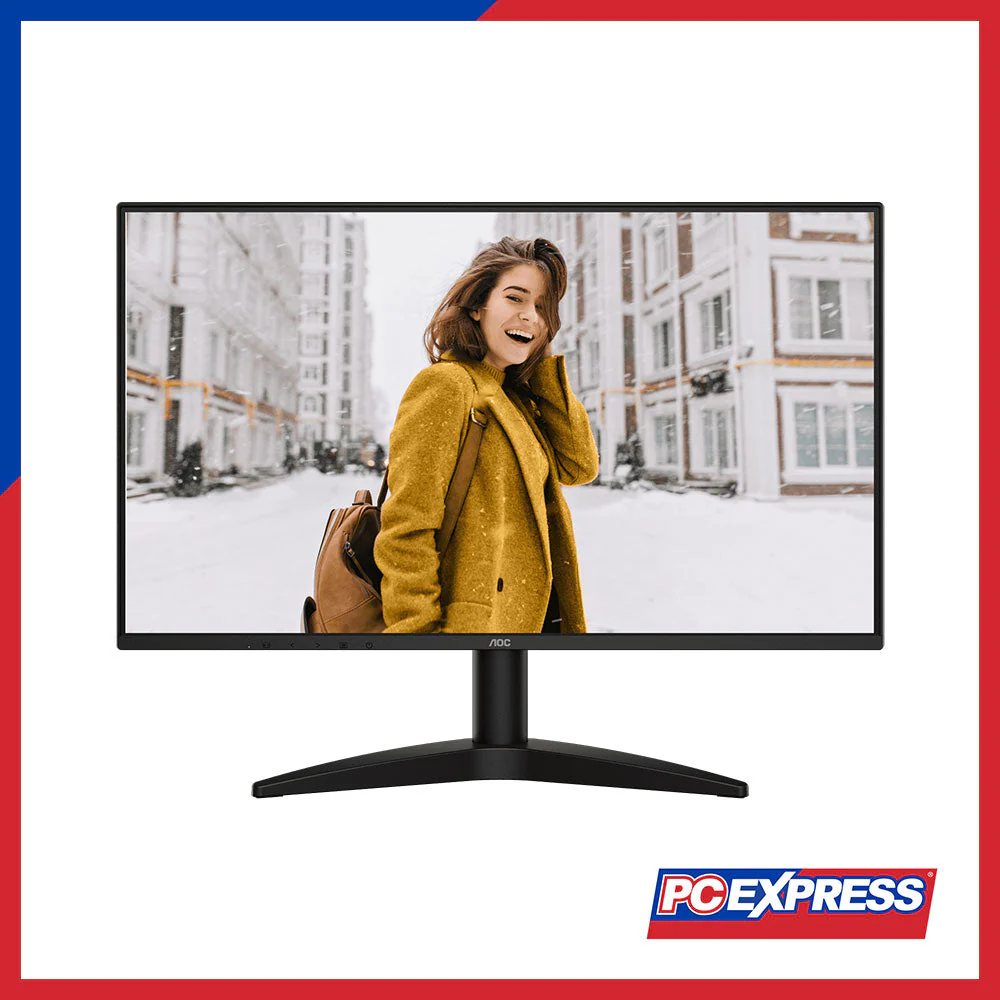

AOC 23.8" 24B36H IPS Monitor

Model Name

24B36H

Panel Type

23.8" IPS

Pixel Pitch

0.2745 (H) × 0.2745 (V) mm

Effective Viewing Area

527.04 (H) × 296.46 (V) mm

Brightness (Typical)

250 cd/m²

Contrast Ratio

1500:1 (Typical) / Mega DCR

Response Time

4ms GtG / 1ms MPRT

Viewing Angle

178° (H) / 178° (V) (CR > 10)

Color Gamut

NTSC 91% (CIE1976) / sRGB 105% (CIE1931)

Color Accuracy

-

Resolution

1920 × 1080 @ 100Hz (HDMI), 1920 × 1080 @ 75Hz (VGA)

Display Colors

16.7 Million

Signal Input

1 × VGA, 1 × HDMI 1.4

HDCP Version

-

USB Hub

No

Power Supply

External 19VDC, 1.31A

Power Consumption

17W (Typical)

Speakers

No

Audio Ports

No Line In / Earphone Jack

Wall Mount

100mm × 100mm

Stand Adjustments

Tilt: -5° ~ 23°

Dimensions (W × H × D)

Without Stand: 542.4 × 316.2 × 34.7 mm

With Stand: 542.4 × 410.0 × 198.0 mm

Packaging: 612 × 381 × 93 mm

Weight

Without Stand: 2.15 kg

With Stand: 2.4 kg

With Packaging: 4.02 kg

Cabinet Color

Black

Regulatory Approvals

CE / FCC
