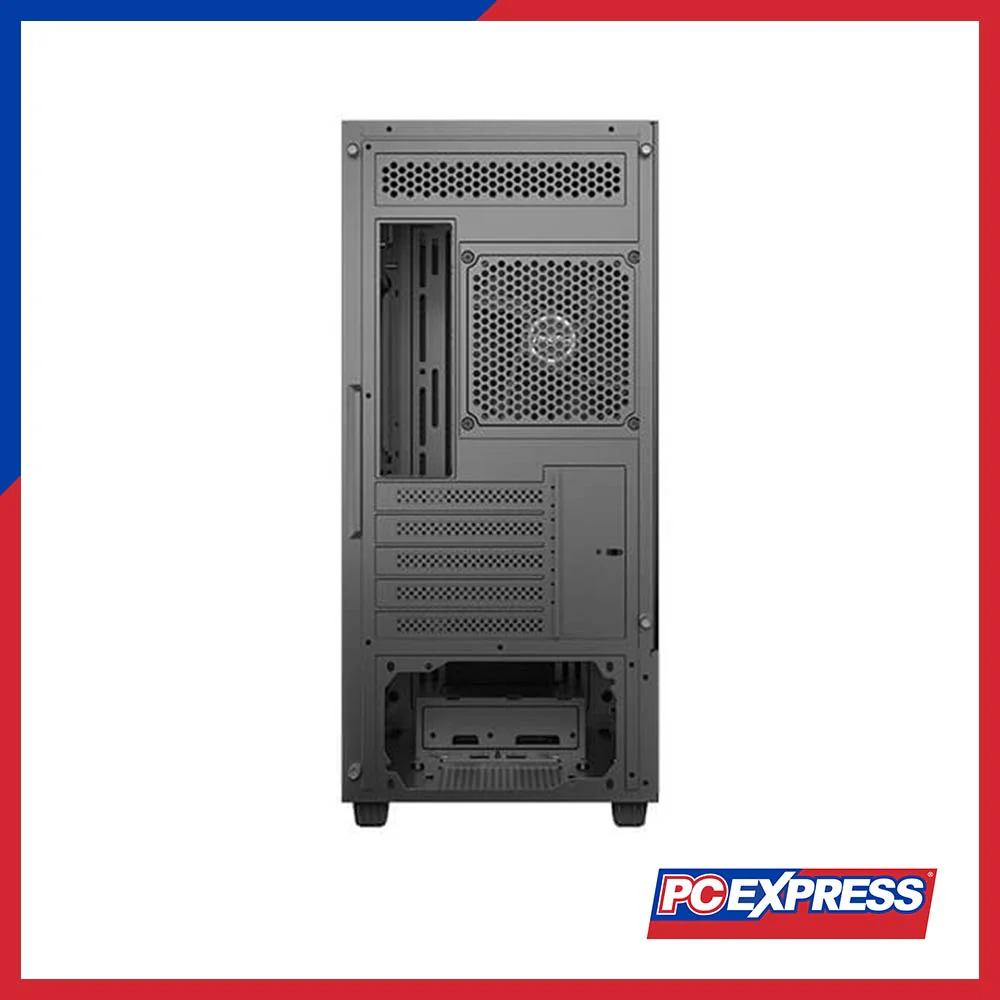

ANTEC NX501 Mid Tower Gaming Chassis (WITH META V550 POWER SUPPLY)
SPECIFICATIONS
| CASE SPECIFICATION | |
| Dimensions | 384 x 200 x 451mm (DWH) |
| Form Factor | Mini Tower |
| Materials | Steel + Plastic |
| Mainboard Support | Micro-ATX, ITX |
| Front Access & Controls |
Power, Reset (NX500M), Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO Power, LED control button (NX500M ARGB), Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO |
| Side Panel | Tempered Glass Side Panel |
| DRIVE BAYS | |
| Expansion Slots | 5 |
| 3.5" /2.5" |
2/3 (with HDD cage) |
| 2.5" | 2 |
| FAN |
|
| Front | 3 x 120mm / 2 x 140mm |
| Top | 2 x 120mm / 2 x 140mm |
| Rear | 1 x 120mm |
| Included Fan(s) | 1 x 120mm regular fan in rear (NX501) |
| RADIATOR SUPPORT | |
| Front | 120 / 140 / 240 / 280 / 360 (Length?397mm)mm |
| Top | 120 / 240mm |
| Rear | 120mm |
| CLEARANCE | |
| Max GPU Length |
≤ 300mm(with front fan) ≤ 320mm(without front fan) |
| Max CPU Height | ≤ 155mm |
| Max PSU Length |
≤ 165mm(with HDD) ≤ 325mm(without HDD) |
| MISCELLANEOUS | |
| Dust Filters | Top / Bottom |
| UPC# | 0-761345-81056-2 (NX501) |
$52.71
ANTEC NX501 Mid Tower Gaming Chassis (WITH META V550 POWER SUPPLY)—
$52.71
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SPECIFICATIONS
| CASE SPECIFICATION | |
| Dimensions | 384 x 200 x 451mm (DWH) |
| Form Factor | Mini Tower |
| Materials | Steel + Plastic |
| Mainboard Support | Micro-ATX, ITX |
| Front Access & Controls |
Power, Reset (NX500M), Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO Power, LED control button (NX500M ARGB), Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO |
| Side Panel | Tempered Glass Side Panel |
| DRIVE BAYS | |
| Expansion Slots | 5 |
| 3.5" /2.5" |
2/3 (with HDD cage) |
| 2.5" | 2 |
| FAN |
|
| Front | 3 x 120mm / 2 x 140mm |
| Top | 2 x 120mm / 2 x 140mm |
| Rear | 1 x 120mm |
| Included Fan(s) | 1 x 120mm regular fan in rear (NX501) |
| RADIATOR SUPPORT | |
| Front | 120 / 140 / 240 / 280 / 360 (Length?397mm)mm |
| Top | 120 / 240mm |
| Rear | 120mm |
| CLEARANCE | |
| Max GPU Length |
≤ 300mm(with front fan) ≤ 320mm(without front fan) |
| Max CPU Height | ≤ 155mm |
| Max PSU Length |
≤ 165mm(with HDD) ≤ 325mm(without HDD) |
| MISCELLANEOUS | |
| Dust Filters | Top / Bottom |
| UPC# | 0-761345-81056-2 (NX501) |
